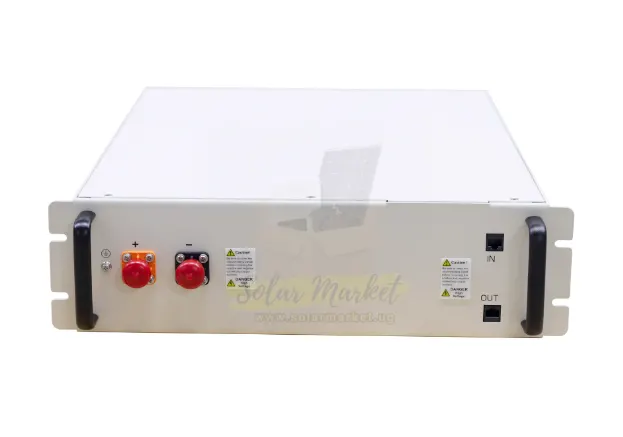

BYD Battery-Max LiteIn 30kWh-825kWh LiFePO4 High Voltage Rack Battery For Commercial Backup 307V-844V RS485/CAN/Modbus TCP 10-Year Warranty (Battery-Max LiteIn)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
BYD

BYD Battery-Max LiteIn 30kWh-825kWh LiFePO4 High Voltage Rack Battery For Commercial Backup 307V-844V RS485/CAN/Modbus TCP 10-Year Warranty (Battery-Max LiteIn)

UGX7,865,200
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX157,304Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · 10 In stock
UGX7,865,200
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · manufacturing defects
The warranty is this product's own (1 year). 7-day return window for manufacturing defects. Contact Masrcorp Solar support with your order reference to arrange an exchange or repair. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Battery Type
LiFePO4
System Nominal Voltage
307V-844V
Communication
CAN/RS485/Modbus TCP
Installation
Rack-Mounted
Warranty
1 year
Brand BYD Max Charging Current 100 A
MPPT Voltage Range 259 V ~ 976 V Nominal Voltage 307 V ~ 844 V (scales with module count)
Product Dimensions 1960 x 595 x 640 mm Communication CAN / RS485 / Modbus TCP
Efficiency >=95% Operating Temperature -10C to +50C
Warranty Up to 10 Years Application On-Grid, On-Grid + Backup, Off-Grid, Black Start
Battery Capacity (Wh) 30000 Wh Battery Type LiFePO4
Capacity 30 kWh ~ 825 kWh (scalable | 4-11 modules per rack) Chemistry Lithium (LiFePO4)
Energy 30 kWh ~ 825 kWh (scalable | 4-11 modules per rack) Ingress Protection IP20
Installation Rack-Mounted SKU SM-CAT-BYD-01061

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

BYD Battery-Max LiteIn delivers 30kWh to 825kWh of high voltage LiFePO4 storage for Uganda commercial battery backup projects, built from 7.5kWh/76.8V modules stacked 4 to 11 per rack. It suits Commercial backup, Large-scale solar, Telecom backup, Solar self-consumption and pairs 100A max charge/discharge current (170A peak), >=95% round-trip efficiency, RS485/CAN/Modbus TCP communication, and rack-mountable design. System voltage and capacity scale with module count, so buyers should match the offered configuration to their inverter's DC input range. Long-term ownership is supported by up to a 10-Year warranty

About this item

  • SCALABLE SYSTEM: 30kWh to 825kWh usable energy across 4 to 11 modules per rack, 307V to 844V nominal system voltage.
  • MODULE RATING: Each Battery-Max LiteIn module is 7.5kWh at 76.8V, 65kg.
  • BATTERY CHEMISTRY: Cobalt-free LiFePO4 technology for safe daily cycling and long service life.
  • COMMUNICATION: CAN/RS485/Modbus TCP for integration with commercial energy management systems.
  • INSTALLATION: Indoor rack-mounted, IP20, for commercial and utility-scale deployment.
  • DURABILITY: Up to 10-Year warranty, >=95% round-trip efficiency.

What's Included

  • BYD Battery-Max LiteIn rack battery (module count depends on ordered capacity, 4-11 modules per rack), 1x communication cable kit, 1x user manual. Inverter and mounting accessories sold separately.

Applications

  • Commercial backup systems
  • Large-scale solar storage
  • Telecom backup systems
  • Solar self-consumption systems
  • On-grid and off-grid hybrid systems
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the main battery specs of BYD Battery-Max LiteIn in Uganda?
BYD Battery-Max LiteIn is a solar battery built around 30kWh-825kWh usable energy at 307V-844V. It is intended for commercial solar storage, backup power, and inverter battery-bank use in Uganda, with CAN/RS485/Modbus TCP communication and IP20 rack installation.
How much storage and discharge capability does BYD Battery-Max LiteIn provide?
BYD Battery-Max LiteIn scales from 30kWh (4 modules, 307V) up to 825kWh (11 modules, 844V), with a 259V-976V operating voltage range depending on configuration. Max charge/discharge current is 100A continuous, 170A peak (3s). Buyers should size the configuration to their inverter's DC input range.
Can BYD Battery-Max LiteIn be expanded later if energy demand grows?
Yes. BYD Battery-Max LiteIn is built from 7.5kWh modules that stack 4 to 11 per rack, so storage can scale from 30kWh to 825kWh without redesigning the full system, where the datasheet and inverter compatibility allow it.
What should installers check before commissioning BYD Battery-Max LiteIn?
Before commissioning BYD Battery-Max LiteIn, confirm the ordered module count and resulting system voltage (307V-844V), the operating voltage range, CAN/RS485/Modbus TCP communication, and -10C to +50C operating temperature. Those are the practical checks that determine inverter compatibility and rack space requirements.
How long is BYD Battery-Max LiteIn expected to last in daily use?
BYD Battery-Max LiteIn is built for reliable daily cycling with a round-trip efficiency of 95% or higher and up to a 10-Year warranty. Its durability is also shaped by the operating temperature range and installation environment; check the seller for the exact cycle-life figure for the ordered configuration.
What should buyers compare before ordering BYD Battery-Max LiteIn in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and inverter compatibility before ordering BYD Battery-Max LiteIn. Match the offer against the datasheet values for system voltage (307V-844V), usable energy (30-825kWh), and communication protocol.
Why is BYD Battery-Max LiteIn a good fit for serious solar storage projects?
It is practical when the site needs commercial-scale, expandable storage from 30kWh to 825kWh, high round-trip efficiency, and CAN/RS485/Modbus TCP integration. That makes it suitable for commercial backup, large-scale solar, and telecom battery-bank installations.
