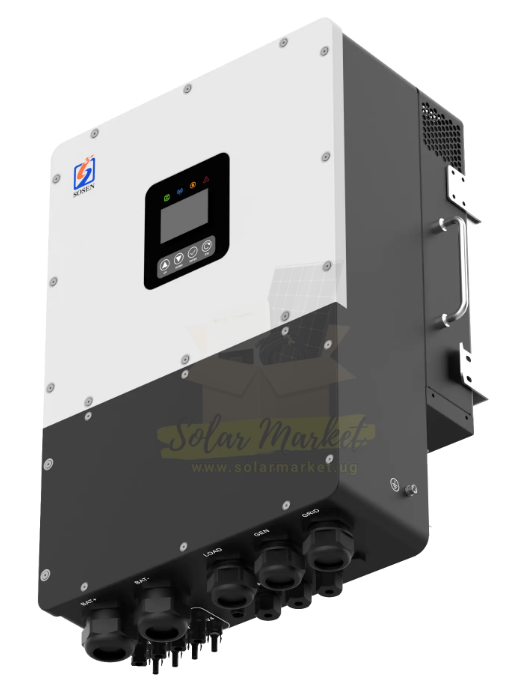

Sosen 3.6kW Hybrid Inverter for Home and VS Sosen HL20K-P3EU 20kW Three-Phase Hybrid Inverter...
VS
A/B
Specifications Comparison
Spec keys are preserved from both products. We never remove a key just because the other product has no value yet.
| Feature | Sosen 3.6kW Hybrid Inverter for Home and | Sosen HL20K-P3EU 20kW Three-Phase Hybrid Inverter... |
|---|---|---|
| Overview | ||
| Battery Type | Lithium / Lead-acid | Lithium/Lead-acid |
| Inverter Type | 92.7%@24V d.c. | Three-phase hybrid inverter |
| Brand | - | Sosen |
| Model | - | HL20K-P3EU |
| Application | - | Hybrid solar and backup |
| Solar Charger Type | - | MPPT |
| Output | ||
| Power Factor | 1 | 0.8 leading ~ 0.8 lagging |
| AC Output Rated Current | - | 29 Aac |
| Surge Power | - | 200% 10s |
| Nominal Output Voltage | - | 380 / 400V a.c., 3 W+N+PE Vac |
| Nominal Output Frequency | - | 50 /60 Hz |
| Rated Power | 3.6 kW | 20 kVa W |
| Electrical | ||
| Nominal Voltage | 24 V | 51.2 V |
| Max. efficiency | - | 98.00% |
| Maximum Charge Power | 100 A | - |
| Max. continuous load current | 20 A | - |
| Max Charging Current | 100 A | 415 Adc A |
| Maximum output current | - | 29 Aac |
| Current Rating | - | 29 A |
| Battery | ||
| Chemistry | Lithium / Lead-acid | - |
| Solar Input | ||
| MPPT Tracking Efficiency | - | 99.90% |
| Number of MPPT Trackers | 1/1 | 2/2+2 |
| MPPT Voltage Range | 40~450 V | 150 ~950 VDC V |
| Max PV Input Power | 5 kW | 40k W |
| PV Start-up Voltage | 120 V | - |
| Max PV Input Current | 18 A | 4*20 Adc A |
| Short Circuit Current (Isc) | 22 | 4*30 Adc |
| Start Voltage | - | 180 VDC |
| Max PV Voltage (DC) | 500 V | - |
| AC Input | ||
| Rated AC Input/Output Active Power (W) | 3.6 | - |
| Transfer Time | - | <20 ms |
| Parallel Capability | No | Up to 8 units parallel |
| Phase | - | Three-phase |
| Maximum input voltage | - | 1000 VDC |
| Max. AC Input/Output Apparent Power (VA) | 3.6 | - |
| Connectivity | ||
| WIFI | - | Yes |
| External Modules (Optional) | - | Bluetooth / LAN / Meter (optional) |
| Display | LCD Display (Display Running Mode, Loads / Input / Output etc.) | LCD + App |
| Communication | - | RS485 / WiFi / CAN / DRM (Optional: Bluetooth / LAN / Meter) |
| Bluetooth | - | Optional |
| Protection | ||
| Safety Regulation IEC 62109-1 / | - | EN IEC 62109-1/2 |
| EMC | - | EN IEC 61000-6-2, EN IEC 61000-6-4 |
| Ingress Protection | IP20, Indoor only | IP66 |
| Certification | - | EN IEC 62477-1, EN IEC 62109-1/2, EN IEC 61000-6-2, EN IEC 61000-6-4, EN50549-1/10 |
| Output Over Current Protection | 102%~110% 1min / 110%~130% 10s / 130%～150% 3s / 150% 0.2s | - |
| Protection | - | Output over voltage, Output over current, Short circuit, Surge, Temperature, Anti-islanding |
| Physical | ||
| Package Dimensions | 285*435*100 MM | - |
| Product Weight | 6.5 kg | 40 kg |
| Humidity | 20%～95% (Non-condensing) | 0-95% (non-condensing) |
| Noise | <50 | <40 dB |
| Operating Temperature | -10℃~+50℃ C | -25°C to +60°C (linearly derating to 60% when exceed +45°C to +60°C) C |
| Storage Temperature | -15℃~+60℃ C | 25°C to +60° C |
| Product Dimensions | - | 448x660x265 mm |
| Compatibility | ||
| Brand Compatibility | Official: , | Official: , |
| Other Specs | ||
| Permissible Altitude | - | 4000 m (>2000 Derating) |
Overview
Battery Type
Lithium / Lead-acid
Lithium/Lead-acid
Inverter Type
92.7%@24V d.c.
Three-phase hybrid inverter
Brand
-
Sosen
Model
-
HL20K-P3EU
Application
-
Hybrid solar and backup
Solar Charger Type
-
MPPT
Output
Power Factor
1
0.8 leading ~ 0.8 lagging
AC Output Rated Current
-
29 Aac
Surge Power
-
200% 10s
Nominal Output Voltage
-
380 / 400V a.c., 3 W+N+PE Vac
Nominal Output Frequency
-
50 /60 Hz
Rated Power
3.6 kW
20 kVa W
Electrical
Nominal Voltage
24 V
51.2 V
Max. efficiency
-
98.00%
Maximum Charge Power
100 A
-
Max. continuous load current
20 A
-
Max Charging Current
100 A
415 Adc A
Maximum output current
-
29 Aac
Current Rating
-
29 A
Battery
Chemistry
Lithium / Lead-acid
-
Solar Input
MPPT Tracking Efficiency
-
99.90%
Number of MPPT Trackers
1/1
2/2+2
MPPT Voltage Range
40~450 V
150 ~950 VDC V
Max PV Input Power
5 kW
40k W
PV Start-up Voltage
120 V
-
Max PV Input Current
18 A
4*20 Adc A
Short Circuit Current (Isc)
22
4*30 Adc
Start Voltage
-
180 VDC
Max PV Voltage (DC)
500 V
-
AC Input
Rated AC Input/Output Active Power (W)
3.6
-
Transfer Time
-
<20 ms
Parallel Capability
No
Up to 8 units parallel
Phase
-
Three-phase
Maximum input voltage
-
1000 VDC
Max. AC Input/Output Apparent Power (VA)
3.6
-
Connectivity
WIFI
-
Yes
External Modules (Optional)
-
Bluetooth / LAN / Meter (optional)
Display
LCD Display (Display Running Mode, Loads / Input / Output etc.)
LCD + App
Communication
-
RS485 / WiFi / CAN / DRM (Optional: Bluetooth / LAN / Meter)
Bluetooth
-
Optional
Protection
Safety Regulation IEC 62109-1 /
-
EN IEC 62109-1/2
EMC
-
EN IEC 61000-6-2, EN IEC 61000-6-4
Ingress Protection
IP20, Indoor only
IP66
Certification
-
EN IEC 62477-1, EN IEC 62109-1/2, EN IEC 61000-6-2, EN IEC 61000-6-4, EN50549-1/10
Output Over Current Protection
102%~110% 1min / 110%~130% 10s / 130%～150% 3s / 150% 0.2s
-
Protection
-
Output over voltage, Output over current, Short circuit, Surge, Temperature, Anti-islanding
Physical
Package Dimensions
285*435*100 MM
-
Product Weight
6.5 kg
40 kg
Humidity
20%～95% (Non-condensing)
0-95% (non-condensing)
Noise
<50
<40 dB
Operating Temperature
-10℃~+50℃ C
-25°C to +60°C (linearly derating to 60% when exceed +45°C to +60°C) C
Storage Temperature
-15℃~+60℃ C
25°C to +60° C
Product Dimensions
-
448x660x265 mm
Compatibility
Brand Compatibility
Official: ,
Official: ,
Other Specs
Permissible Altitude
-
4000 m (>2000 Derating)
Frequently Asked Questions
Key differences from the current specs are: Max PV Input Power (5 kW vs 40k W); Rated Power (3.6 kW vs 20 kVa W); MPPT Voltage Range (40~450 V vs 150 ~950 VDC V).
Sosen HL20K-P3EU 20kW Three-Phase Hybrid Inverter for Commercial and Industrial Solar Backup 380/400V 51.2V Battery IP66 currently leads on more weighted core specs (66/100 vs 34/100). For home backup, also confirm battery voltage match and your expected daily load before purchase.
Current price snapshot on SolarMarket Uganda is Sosen 3.6kW Hybrid Inverter for Home and Small Business Backup 24VDC 100A MPPT 40-450VDC 230VAC Output IP20 Indoor (SSA-HL3K6-P1EU): UGX 864,000, Sosen HL20K-P3EU 20kW Three-Phase Hybrid Inverter for Commercial and Industrial Solar Backup 380/400V 51.2V Battery IP66: UGX
Yes. You can request quotations from verified sellers using the RFQ flow: https://www.solarmarket.ug/index.php/rfq/create
