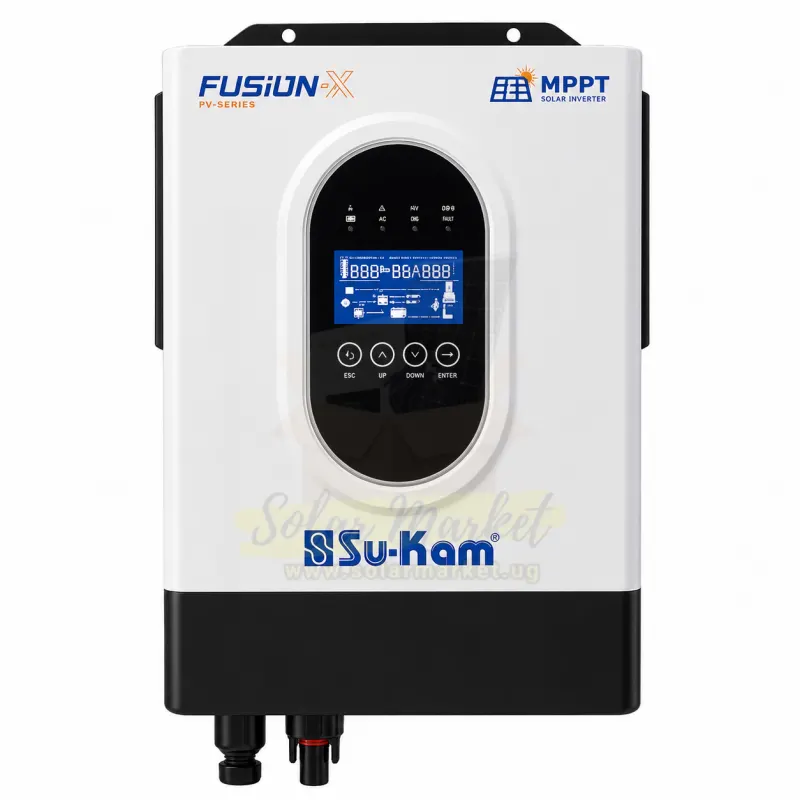

Sukam 1.2kVA/1200W Hybrid Inverter for Home and Small Business Backup 12VDC 230VAC Output MPPT 20-100VDC 50A Charge Pure Sine Wave LCD Display (FX1000-12S)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
Sukam · Hybrid Inverters

Sukam 1.2kVA/1200W Hybrid Inverter for Home and Small Business Backup 12VDC 230VAC Output MPPT 20-100VDC 50A Charge Pure Sine Wave LCD Display (FX1000-12S)

UGX756,000
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX22,680Cash on Delivery2-yr warranty
Sold by
Auto Solutions plus ltd ✓
Kampala · 20 In stock
UGX756,000
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
Sosen 3.6kW Hybrid Inverter for Home and Small Business Backup 24VDC 100A MPPT 40-450VDC 230VAC Output IP20 Indoor (SSA-HL3K6-P1EU) Sosen 3.6kW Hybrid Inverter for Home and Small Business Backup 24VDC 1... UGX864,000 Masrcorp Solar Uganda Felicity IVCM1012 LV 1kW Hybrid Inverter, 105V, For Small home backup, Lighting, 12V Felicity IVCM1012 LV 1kW Hybrid Inverter, 105V, For Small home backup,... UGX764,640 Masrcorp Solar Uganda Anern 1kW 12V MPPT Hybrid Solar Inverter Anern 1kW 12V MPPT Hybrid Solar Inverter UGX871,933 Masrcorp Solar Uganda 1500W 12V Solar Hybrid Inverter Home System Homaya 1500W 12V Solar Hybrid Inverter Home System Homaya UGX873,180 Masrcorp Solar Uganda
Ways to payAll options
Cash on DeliveryOrder now, pay Auto Solutions plus ltd in cash
Pay NowBank Transfer · Cash on Delivery
Warranty and returns
Warranty
2 years · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (2 years). Returns and refunds follow Auto Solutions plus ltd's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 12 V
Solar Panels
UGX429,000
Battery
UGX1,019,520
Cables, mounting and protection
UGX3,985
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Sukam Model 230VAC ± 5%
Rated Power 1200VA/1200W Max PV Input Power 800 W
Max Charging Current 50A Max PV Open Circuit Voltage 120VDC
Nominal Output Voltage 230VAC Nominal Voltage 170-280 V
Number of MPPT Trackers 50A Surge Power 2400VA
Product Weight 4.1kg Waveform Pure Sine Wave
AC Output Rated Current 50A Current Rating 50 A
Display LCD Float Charge Voltage 13.5VDC
Input Voltage Range 170-280VAC (UPS), 90-280VAC (Appliances) Max. AC Input/Output Apparent Power (VA) 1200VA/1200W
Over Discharging Voltage 11.0VDC Overcharge Protection 16.0VDC
Parallel Capability W/O Power Factor 1.0
Rated AC Input/Output Active Power (W) 1200VA/1200W SKU SM-HYB-SUK-01334
Zero load power (W) <23W

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Sukam FX1000-12S is a 1.2kW hybrid inverter for Uganda power conditions. It supports up to 800W PV input and is suitable for Home backup power, Small shop or kiosk, Off-grid cabin where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED POWER: 1.2kVA/1200W continuous output with pure sine wave waveform, suitable for sensitive electronics and appliances in Ugandan homes.
  • MPPT SOLAR CHARGE CONTROLLER: Integrated 50A MPPT controller with 20-100VDC operating range, accepting up to 800W of solar array power for efficient battery charging.
  • DUAL VOLTAGE MODE: Selectable input voltage range of 170-280VAC for UPS mode or 90-280VAC for appliance mode, adapting to grid conditions in Uganda.
  • 12VDC BATTERY SYSTEM: Operates on a standard 12V battery bank with low battery alarm at 11.0VDC and cutoff protection at 10.5VDC to prevent deep discharge.
  • LCD DISPLAY: Front panel LCD shows system status including battery voltage, load level, and charging information for easy monitoring.
  • COMPACT DESIGN: Lightweight at 3.3kg with dimensions 347mm x 247mm x 103mm, allowing flexible wall or shelf mounting in small spaces.

What's Included

  • Sukam FX1000-12S Hybrid Inverter unit
  • User manual
  • Warranty card

Applications

  • Home backup power for lights, fans, TVs, and phone charging
  • Small shop or kiosk power for basic appliances
  • Off-grid cabin or weekend house solar system
  • Backup for desktop computers and networking equipment
  • Solar-powered water pumping with compatible pumps
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Sukam FX1000-12S in Uganda?
Sukam FX1000-12S is a 1.2kW hybrid inverter in Uganda. Key specs include max PV input voltage 120VDC, max PV input power 800W, rated AC output 1.2kW.
What PV voltage limits should technicians use for Sukam FX1000-12S?
For Sukam FX1000-12S, use MPPT/operating voltage range 120VDC, max PV input voltage 120VDC, and max PV input power 800W when designing strings.
How much solar PV can be connected to Sukam FX1000-12S?
Sukam FX1000-12S allows up to 800W PV input power. Use max PV input voltage 120VDC for string sizing checks.
What battery and charge current settings apply to Sukam FX1000-12S?
Sukam FX1000-12S is built for the listed battery voltage battery systems. The battery voltage range is the listed battery voltage, with maximum charging current the listed charging current.
What AC output should buyers and installers expect from Sukam FX1000-12S?
Sukam FX1000-12S has a rated AC output of 1.2kW. It operates with grid frequency 50Hz/60Hz (Auto Sensing) and AC voltage range 170-280VAC (UPS), 90-280VAC (Appliances). If needed, use 170-280VAC (UPS), 90-280VAC (Appliances) for compatibility checks.
What should buyers compare before ordering Sukam FX1000-12S in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Sukam FX1000-12S. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
