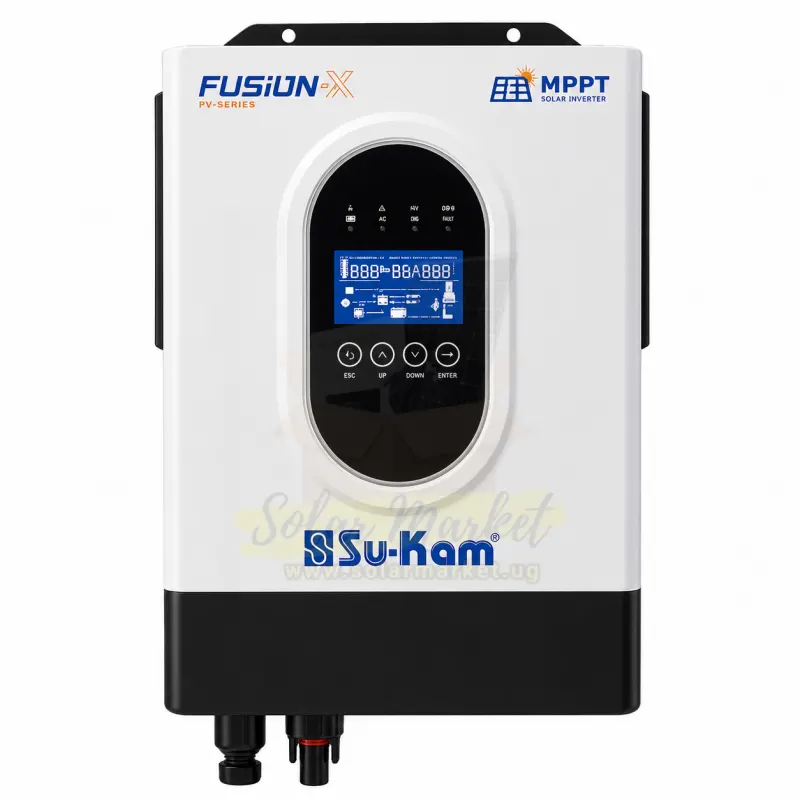

Sukam 3kW Hybrid Inverter for Home backup power and Small business backup (FX3200-24S)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
Sukam · Hybrid Inverters

Sukam 3kW Hybrid Inverter for Home backup power and Small business backup (FX3200-24S)

UGX1,566,000
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX46,980Cash on Delivery2-yr warranty
Sold by
Auto Solutions plus ltd ✓
Kampala · 11 In stock
UGX1,566,000
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
SRNE 3.3kW 24V Hybrid Inverter for Home and Small Business Backup Single-Phase 230VAC Output 1 MPPT 120-500VDC 80A Charging RS485/CAN/USB/Dry Contact IP20 2-Year Warranty (HF2430S80-H) SRNE 3.3kW 24V Hybrid Inverter for Home and Small Business Backup Sing... UGX1,703,592 BLISON ENERGY Sosen SSA-HL1.2~12K-P1EU 6kW Off-grid Hybrid Inverter Sosen SSA-HL1.2~12K-P1EU 6kW Off-grid Hybrid Inverter UGX1,717,200 Collective Energy Africa Entelechy 1500W Solar Hybrid Inverter for Home and Small Business Backup 230VAC Output 12VDC Battery 500VDC PV Input 100A Solar Charging RS232 Communication 0-55C Operating Temperature (BST-HPL-1500W) Entelechy 1500W Solar Hybrid Inverter for Home and Small Business Back... UGX1,417,500 Masrcorp Solar Uganda Felicity IVEM6048 Hybrid Inverter 6kVA 48V, 12 Parallel, BMS Communication, for Residential Solar, Small Commercial Solar, Off-grid and Hybrid Felicity IVEM6048 Hybrid Inverter 6kVA 48V, 12 Parallel, BMS Communica... UGX1,656,720 Masrcorp Solar Uganda
Ways to payAll options
Cash on DeliveryOrder now, pay Auto Solutions plus ltd in cash
Pay NowBank Transfer · Cash on Delivery
Warranty and returns
Warranty
2 years · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (2 years). Returns and refunds follow Auto Solutions plus ltd's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to high voltage
Solar Panels
UGX429,000
Battery
UGX34,080,800
Cables, mounting and protection
UGX64,680
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Sukam Model 230VAC ± 5%
Rated Power 3000VA/3000W Max PV Input Power 3000 W
Max Charging Current 60A Max PV Open Circuit Voltage 450VDC
Nominal Output Voltage 230VAC Nominal Voltage 170-280 V
Number of MPPT Trackers 80A Surge Power 6000VA
Product Dimensions 473mm*391mm*194mm Product Weight 6.0kg
Waveform Pure Sine Wave Efficiency 98%
Operating Temperature 0°C to 55°C AC Output Rated Current 80A
Current Rating 80 A Display LCD
Float Charge Voltage 27VDC Humidity 5% to 95% Rela ve Humidity ( Non-Condensing )
Input Voltage Range 170-280VAC (UPS), 90-280VAC (Appliances) Max. AC Input/Output Apparent Power (VA) 3000VA/3000W
Over Discharging Voltage 22.0VDC Overcharge Protection 32VDC
Parallel Capability W/O Power Factor 1.0
Rated AC Input/Output Active Power (W) 3000VA/3000W SKU SM-HYB-SUK-01338
Transfer Time 10ms (UPS), 20ms (Appliances) Zero load power (W) <35W

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Sukam FX3200-24S is a 3kW hybrid inverter for Uganda power conditions. It supports up to 3kW PV input and is suitable for Home backup power, Small business backup, Off-grid solar where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED POWER: 3kVA/3000W continuous output with 6kVA surge capacity for starting motors and compressors.
  • MPPT SOLAR CHARGER: 80A maximum charge current from a PV array up to 3000W, with MPPT voltage range of 50-430VDC and open circuit voltage limit of 450VDC.
  • PURE SINE WAVE OUTPUT: 230VAC ±5% regulated output ensures clean power for sensitive electronics, appliances, and tools.
  • DUAL INPUT VOLTAGE RANGES: Selectable 170-280VAC (UPS mode, 10ms transfer) or 90-280VAC (appliance mode, 20ms transfer) for grid flexibility.
  • BATTERY MANAGEMENT: 24VDC system with low battery alarm at 22.0VDC, cut-off protection at 21VDC, and floating charge at 27VDC. Overcharge protection at 32VDC.
  • COMMUNICATION: RS485 port for BMS communication with lithium batteries, plus LCD display for real-time monitoring of PV, battery, and load status.

What's Included

  • Sukam FX3200-24S Hybrid Inverter unit
  • User manual
  • RS485 communication cable
  • Mounting brackets (if applicable)

Applications

  • Home backup power for lighting, fans, TVs, and refrigerators
  • Small business backup for computers, printers, and point-of-sale systems
  • Off-grid solar systems with 24V battery banks
  • Remote cabins and rural clinics requiring reliable AC power
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Sukam FX3200-24S in Uganda?
Sukam FX3200-24S is a 3kW hybrid inverter in Uganda. Key specs include max PV input voltage 450VDC, max PV input power 3kW, rated AC output 3kW, communication RS485.
What PV voltage limits should technicians use for Sukam FX3200-24S?
For Sukam FX3200-24S, use MPPT/operating voltage range 450VDC, max PV input voltage 450VDC, and max PV input power 3kW when designing strings.
How much solar PV can be connected to Sukam FX3200-24S?
Sukam FX3200-24S allows up to 3kW PV input power. Use max PV input voltage 450VDC for string sizing checks.
What battery and charge current settings apply to Sukam FX3200-24S?
Sukam FX3200-24S is built for the listed battery voltage battery systems. The battery voltage range is the listed battery voltage, with maximum charging current the listed charging current.
What AC output should buyers and installers expect from Sukam FX3200-24S?
Sukam FX3200-24S has a rated AC output of 3kW. It operates with grid frequency 50Hz/60Hz (Auto Sensing) and AC voltage range 170-280VAC (UPS), 90-280VAC (Appliances). If needed, use 170-280VAC (UPS), 90-280VAC (Appliances) for compatibility checks.
What should buyers compare before ordering Sukam FX3200-24S in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Sukam FX3200-24S. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
