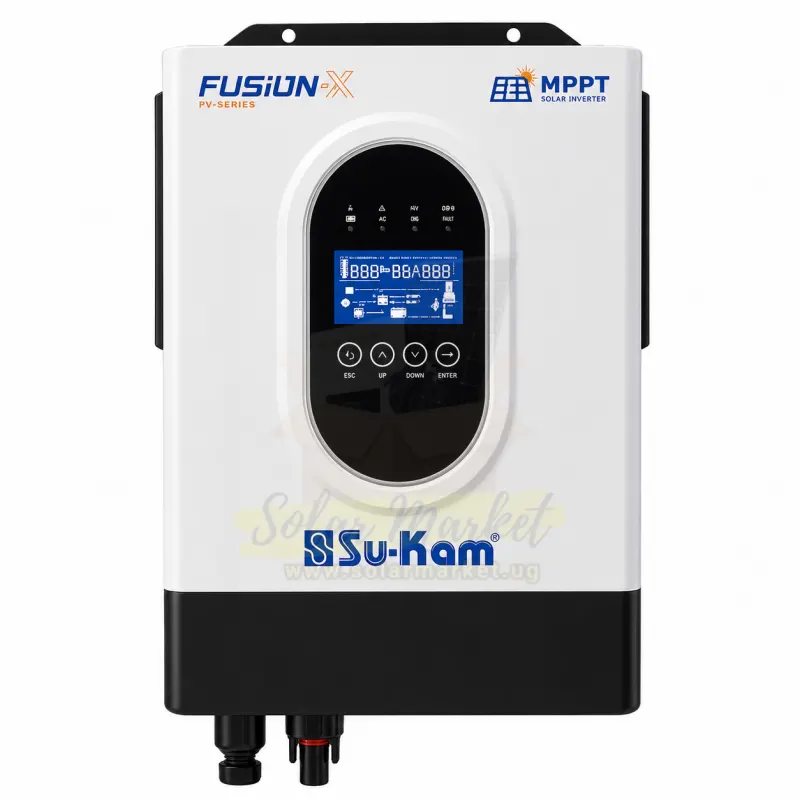

Sukam 10.2kVA/8.2kW Hybrid Inverter for Home and Small Business Backup 48VDC 230VAC Output 160A MPPT LCD and App Monitoring (FX10200-48H)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
Sukam · Hybrid Inverters

Sukam 10.2kVA/8.2kW Hybrid Inverter for Home and Small Business Backup 48VDC 230VAC Output 160A MPPT LCD and App Monitoring (FX10200-48H)

UGX3,604,000
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX72,080Cash on Delivery1-yr warranty
Sold by
Auto Solutions plus ltd ✓
Kampala · In stock
UGX3,604,000
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
SRNE 6.2kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC Dual MPPT 120-480VDC Expandable to 6 Units IP20 Indoor 2-Year Warranty (HYP4860S100-H) SRNE 6.2kW Hybrid Inverter for Home and Small Business Backup 48V 230V... UGX3,293,950 BLISON ENERGY Cosuper 5kW 48V Solar Hybrid Inverter Pure Sine Wave MPPT 60A Parallel 3 Phase Support Spe5000 Cosuper 5kW 48V Solar Hybrid Inverter Pure Sine Wave MPPT 60A Parallel... UGX4,081,000 Baseline Africa Uganda Felicity IVPM10048 Hybrid Inverter 10kVA 48V, 8000W Output, 6600W PV, 65-145Vdc, for Residential Solar, Small Business and Off-grid Hybrid Felicity IVPM10048 Hybrid Inverter 10kVA 48V, 8000W Output, 6600W PV,... UGX3,527,150 Masrcorp Solar Uganda 6kVA 48V Tbb Riio Sun Ii All In One Solar Hybrid Inverter Versatile Solar And Backup Power Solution 6kVA 48V Tbb Riio Sun Ii All In One Solar Hybrid Inverter Versatile So... UGX3,485,280 Masrcorp Solar Uganda
Ways to payAll options
Cash on DeliveryOrder now, pay Auto Solutions plus ltd in cash
Pay NowBank Transfer · Cash on Delivery
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Auto Solutions plus ltd's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 48 V
Solar Panels
UGX429,000
Battery
UGX8,257,400
Cables, mounting and protection
UGX3,985
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Sukam Model 230VAC ± 5%
Rated Power 10200VA/8200W Max PV Input Power 10800 W
Max Charging Current 120A Max PV Open Circuit Voltage 500VDC
Nominal Output Voltage 230VAC Nominal Voltage 170-280 V
Number of MPPT Trackers 160A Surge Power 20400VA
Product Weight 16.0kg Waveform Pure Sine Wave
AC Output Rated Current 160A Current Rating 160 A
Display LCD & App Float Charge Voltage 56.0VDC
Input Voltage Range 170-280VAC (UPS), 90-280VAC (Appliances) Max. AC Input/Output Apparent Power (VA) 10200VA/8200W
Over Discharging Voltage 44.0VDC Overcharge Protection 64.0VDC
Parallel Capability W/O Power Factor 1
Rated AC Input/Output Active Power (W) 10200VA/8200W SKU SM-HYB-SUK-01335
Zero load power (W) <75W

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Sukam FX10200-48H is a 10.2kW hybrid inverter for Uganda power conditions. It supports up to 10.8kW PV input and is suitable for Home backup power, Small business power, Solar self-consumption where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED POWER: 10.2kVA/8200W continuous output with 20.4kVA surge capacity for starting motors and compressors.
  • BATTERY VOLTAGE: 48VDC system with programmable low battery alarm (44.0VDC), cutoff (42.0VDC), and recovery (46.0VDC) thresholds.
  • MPPT CHARGE CONTROLLER: Single MPPT tracker with 160A maximum charge current, supporting up to 10800W PV array and 500VDC open circuit voltage.
  • AC INPUT RANGE: Selectable voltage range of 170-280VAC for UPS mode and 90-280VAC for appliance mode, with auto-sensing 50/60Hz frequency.
  • MONITORING: LCD display and mobile app interface with RS485 BMS communication port for battery management system integration.
  • WAVEFORM: Pure sine wave output with power factor of 1 and no-load power consumption below 75W.

What's Included

  • Sukam FX10200-48H hybrid inverter unit, user manual, mounting brackets, communication cable, LCD display panel, warranty card.

Applications

  • Home backup power during grid outages
  • Small business power backup for shops and offices
  • Solar self-consumption systems with battery storage
  • Off-grid residential power systems
  • Backup for sensitive electronics and appliances
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Sukam FX10200-48H in Uganda?
Sukam FX10200-48H is a 10.2kW hybrid inverter in Uganda. Key specs include max PV input voltage 500VDC, max PV input power 10.8kW, rated AC output 10.2kW, communication RS485.
What PV voltage limits should technicians use for Sukam FX10200-48H?
For Sukam FX10200-48H, use MPPT/operating voltage range 500VDC, max PV input voltage 500VDC, and max PV input power 10.8kW when designing strings.
How much solar PV can be connected to Sukam FX10200-48H?
Sukam FX10200-48H allows up to 10.8kW PV input power. Use max PV input voltage 500VDC for string sizing checks.
What battery and charge current settings apply to Sukam FX10200-48H?
Sukam FX10200-48H is built for the listed battery voltage battery systems. The battery voltage range is the listed battery voltage, with maximum charging current the listed charging current.
What AC output should buyers and installers expect from Sukam FX10200-48H?
Sukam FX10200-48H has a rated AC output of 10.2kW. It operates with grid frequency 50Hz/60Hz (Auto Sensing) and AC voltage range 170-280VAC (UPS), 90-280VAC (Appliances). If needed, use 170-280VAC (UPS), 90-280VAC (Appliances) for compatibility checks.
What should buyers compare before ordering Sukam FX10200-48H in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Sukam FX10200-48H. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
