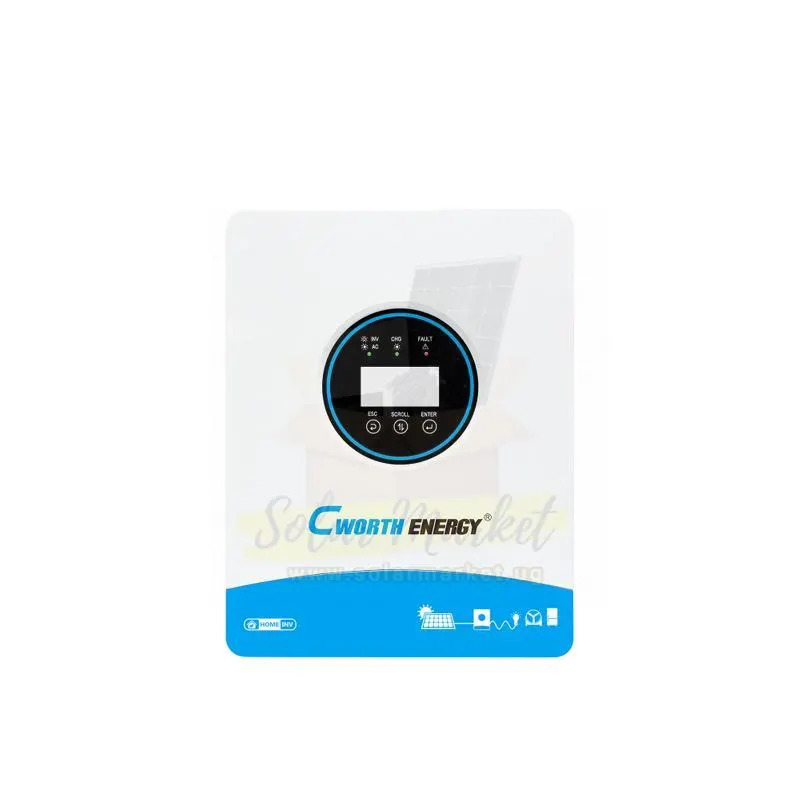

Cworth 1.5kW Hybrid Inverter for Home and Small Business Backup 12V DC Input 230VAC Output 650W MPPT Solar Charger 45A Solar Charging Current (CE-H1.8K)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
Cworth · Hybrid Inverters

Cworth 1.5kW Hybrid Inverter for Home and Small Business Backup 12V DC Input 230VAC Output 650W MPPT Solar Charger 45A Solar Charging Current (CE-H1.8K)

UGX1,425,600
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX42,768
Sold by
Cworth Energy ✓
100 In stock
UGX1,425,600
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
SRNE 3kW 24V Hybrid Inverter for Home and Small Business Backup Single-Phase 230VAC Output 1 MPPT 30-90VDC 60A Solar Charging 80A Grid Charging Fan Cooling IP20 2-Year Warranty (HF2430S60-108) SRNE 3kW 24V Hybrid Inverter for Home and Small Business Backup Single... UGX1,146,960 Masrcorp Solar Uganda Sukam 3kW Hybrid Inverter for Home backup power and Small business backup (FX3200-24S) Sukam 3kW Hybrid Inverter for Home backup power and Small business bac... UGX1,566,000 Auto Solutions plus ltd Felicity 4kVA/4000W Hybrid Inverter for Home and Small Business Backup 24V 120A MPPT 60-500VDC WiFi (IVEM4024-II) Felicity 4kVA/4000W Hybrid Inverter for Home and Small Business Backup... UGX1,274,400 Masrcorp Solar Uganda Sosen 5kW Hybrid Inverter for Home and Small Business Backup 48VDC 80A MPPT 120-430VDC 230VAC Output Parallel up to 9 Units LCD Display RS485 CAN (SSA-HL5K-P1EU) Sosen 5kW Hybrid Inverter for Home and Small Business Backup 48VDC 80A... UGX1,582,200 Masrcorp Solar Uganda
Ways to payAll options
Pay NowBank Transfer
Complete your systemMatched to 12 V
Solar Panels
UGX429,000
Battery
UGX1,019,520
Cables, mounting and protection
UGX64,680
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Cworth Model CE-H1.8K
Rated Power 1500 W Max PV Input Power 650W
Max Charging Current 10A-Max. Grid Charge Curent (Adjustable unit is 1A) MPPT Voltage Range 85V-450V
Max PV Open Circuit Voltage 500 V Nominal Output Voltage 230Vact5%
Nominal Output Frequency (Hz),50+0.3Hz/60Hz+0.3Hz (Adjustable) Nominal Voltage 85 V
Product Dimensions 350x290x108mm Product Weight 5.5 KG
Communication 8.Dry contact port Waveform Pure sine wave
Efficiency 93% Operating Temperature -10°C~55°C
AC Output Rated Current 18.2A Battery Type Adjustable, up to 30V/60V
Chemistry Lithium Current Rating 18.2 A
High DC Input Alarm & Fault 15.5V+0.2V 31V+0.2V 62V+0.4V High Line Voltage Disconnect 280Vact+3V
Input AC Voltage Range 85 V Low DC Input Shut-down Recovery 14.5V+0.2V 29V+40.2V 60V+0.4V
Low voltage load disconnect 90Vac+3V (For Home Appliances) 170Vac+3V (For Computers) Max PV Input Current 20A
Max. AC Input/Output Apparent Power (VA) 650W Max. PV short circuit current 280Vact+3V
Max. Shorted Current 18.2A/4000W Output Short Circuit Protection Yes
Overcharge Protection Yes Parallel Capability No
Pass Through Without Battery Yes Rated AC Input/Output Active Power (W) 1500W
Self Discharge Adjustable, up to 30V/60V SKU SM-CAT-GEN-00927
Storage Temperature -15°C~60°C Transfer Time 10ms typical (UPS);20ms typical (Appliances)

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Cworth CE-H1.8K is a 1.5kW 12V hybrid inverter for Uganda power conditions. It supports up to 650W PV input and is suitable for Home lighting, Small shop and kiosk, Office workstation where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED OUTPUT POWER: 1.5kW continuous output at 230VAC with pure sine wave waveform, suitable for powering lights, fans, TVs, refrigerators, and other sensitive electronics in a home or small business setting.
  • MPPT SOLAR CHARGER: Integrated 650W maximum solar input with MPPT technology, accepting PV voltage from 85V to 450V and delivering up to 45A charging current to the battery bank for efficient solar energy harvesting.
  • BATTERY COMPATIBILITY: Designed for 12V DC nominal input systems with adjustable charging parameters supporting AGM, Flooded, and user-defined battery types. Maximum charging current is adjustable from 10A to the maximum grid charge current.
  • TRANSFER TIME: UPS mode provides 10ms typical transfer time for sensitive loads, while appliance mode offers 20ms typical transfer time, ensuring smooth transition during grid failures.
  • PASS-THROUGH OPERATION: Supports operation without a battery connected, allowing the inverter to pass utility power directly to loads while providing voltage regulation and surge protection.
  • PROTECTION FEATURES: Includes overcharge protection, output short circuit protection, high DC input alarm at 15.5V (12V system), and automatic recovery at 14.5V, ensuring system safety and longevity.

What's Included

  • Cworth CE-H1.8K Hybrid Inverter unit
  • User manual
  • Warranty card

Applications

  • Home lighting and appliance backup during grid outages
  • Small shop and kiosk power backup for lights, fans, and payment terminals
  • Office workstation backup for computers and networking equipment
  • Remote monitoring stations and security systems
  • Rural electrification systems with solar charging
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Cworth CE-H1.8K in Uganda?
Cworth CE-H1.8K is a 1.5kW hybrid inverter in Uganda. Key specs include battery voltage range 12V, max PV input voltage SOOV, max PV input power 650W, rated AC output 1.5kW.
What PV voltage limits should technicians use for Cworth CE-H1.8K?
For Cworth CE-H1.8K, use MPPT/operating voltage range 85V-450V, max PV input voltage SOOV, and max PV input power 650W when designing strings.
How much solar PV can be connected to Cworth CE-H1.8K?
Cworth CE-H1.8K allows up to 650W PV input power. Use MPPT range 85V-450V, max PV input voltage SOOV for string sizing checks.
What battery and charge current settings apply to Cworth CE-H1.8K?
Cworth CE-H1.8K is built for 12V battery systems. The battery voltage range is 12V, with maximum charging current 560A.
What AC output should buyers and installers expect from Cworth CE-H1.8K?
Cworth CE-H1.8K has a rated AC output of 1.5kW. It operates with grid frequency 50/60Hz (Auto detection) and AC voltage range 230Vact5%. If needed, use the listed input range for compatibility checks.
What should buyers compare before ordering Cworth CE-H1.8K in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Cworth CE-H1.8K. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
