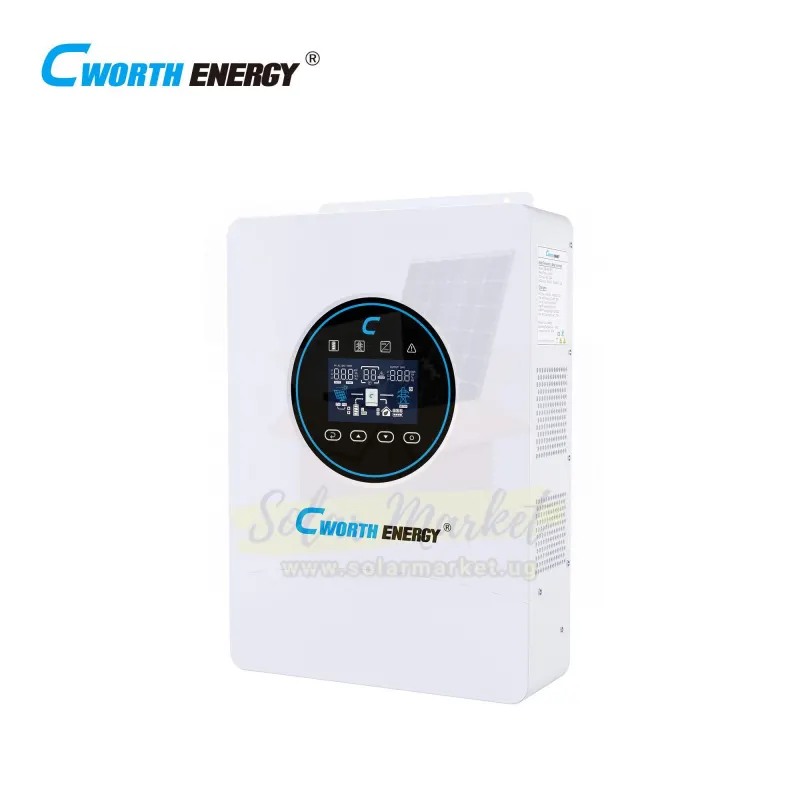

Cworth 6kW High Voltage Hybrid Inverter for Home and Small Business Backup 48V 230VAC Output 500V PV Open Circuit Dual MPPT 120A Charge 12-Unit Parallel Expandable (CE-H6K)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
Cworth · Hybrid Inverters

Cworth 6kW High Voltage Hybrid Inverter for Home and Small Business Backup 48V 230VAC Output 500V PV Open Circuit Dual MPPT 120A Charge 12-Unit Parallel Expandable (CE-H6K)

UGX3,031,600
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX60,632
Sold by
Cworth Energy ✓
50 In stock
UGX3,031,600
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
5kVA 48V Tbb Riio Sun Ii All In One Solar Hybrid Inverter Versatile Solar And Backup Power Solution 5kVA 48V Tbb Riio Sun Ii All In One Solar Hybrid Inverter Versatile So... UGX3,180,000 Masrcorp Solar Uganda SRNE 6.2kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC Dual MPPT 120-480VDC Expandable to 6 Units IP20 Indoor 2-Year Warranty (HYP4860S100-H) SRNE 6.2kW Hybrid Inverter for Home and Small Business Backup 48V 230V... UGX3,293,950 BLISON ENERGY Felicity 12kVA 12000W Hybrid Inverter for Home and Small Business Backup 48V 240A MPPT 90-450VDC Parallel up to 6 Units Single/Three Phase WiFi Communication (IVEM12048-II) Felicity 12kVA 12000W Hybrid Inverter for Home and Small Business Back... UGX3,353,840 Masrcorp Solar Uganda Entelechy 3000W Hybrid Inverter for Home and Small Business Backup 24VDC 230VAC Output 100A MPPT 500VDC PV Input RS232 Communication 0-55C Operating Temperature (BST-HPL-3000W) Entelechy 3000W Hybrid Inverter for Home and Small Business Backup 24V... UGX3,072,853 Entelechy Solar Solutions
Ways to payAll options
Pay NowBank Transfer
Complete your systemMatched to high voltage
Solar Panels
UGX429,000
Battery
UGX34,080,800
Cables, mounting and protection
UGX50,474
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Cworth Model CE-H6K
Rated Power 6000 W Max PV Input Power 6000W
Max Charging Current 10A-Max. Grid Charge Curent (Adjustable unit is 1A) MPPT Voltage Range 85V-450V
Max PV Open Circuit Voltage 500 V Nominal Output Voltage 230Vact5%
Nominal Output Frequency (Hz),50+0.3Hz/60Hz+0.3Hz (Adjustable) Nominal Voltage 85 V
Product Dimensions 347x445x120mm Product Weight 13 KG
Waveform Pure sine wave Efficiency 93%
Operating Temperature -10°C~55°C AC Output Rated Current 27.3A
Battery Type AGM Chemistry Lithium
Current Rating 27.3 A High DC Input Alarm & Fault 62V+0.4V
High Line Voltage Disconnect 280Vact+3V Input AC Voltage Range 85 V
Low DC Input Shut-down Recovery 60V+0.4V Low voltage load disconnect 170Vac+3V (For Computers)
Max PV Input Current 27A Max. AC Input/Output Apparent Power (VA) 6000W
Max. PV short circuit current 170Vac+3V (For Computers) Max. Shorted Current 27.3A/6000W
Output Short Circuit Protection Yes Overcharge Protection Yes
Parallel Capability Yes,up to 12 units Pass Through Without Battery Yes
Rated AC Input/Output Active Power (W) 6000W Self Discharge Adjustable, up to 30V/60V
SKU SM-CAT-GEN-00930 Storage Temperature -15°C~60°C
Transfer Time 10ms typical (UPS);20ms typical (Appliances)

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Cworth CE-H6K is a 6kW 500V hybrid inverter for Uganda power conditions. It supports up to 6kW PV input and is suitable for Home backup power, Small business power, Off-grid solar where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED OUTPUT POWER: 6000W continuous output at 230VAC with pure sine wave waveform, suitable for powering home appliances and small business equipment.
  • BATTERY COMPATIBILITY: Supports AGM, flooded, and lithium battery types with adjustable charge voltages up to 60V, allowing flexible energy storage choices.
  • SOLAR CHARGING: Maximum PV input power of 6000W with 120A solar charging current, enabling efficient solar energy harvesting from panels up to 500V open circuit voltage.
  • PARALLEL OPERATION: Expandable to up to 12 units in parallel for increased power capacity, ideal for scaling your solar system as energy demands grow.
  • TRANSFER TIME: 10ms typical transfer time in UPS mode and 20ms for appliances, ensuring minimal disruption during grid or generator power loss.
  • PASS THROUGH WITHOUT BATTERY: The inverter can operate in line mode without a connected battery, providing flexibility for installations where battery storage is not yet available.

What's Included

  • Cworth CE-H6K Hybrid Inverter unit
  • User manual
  • Mounting brackets
  • Warranty card

Applications

  • Home backup power during grid outages
  • Small business power backup for computers and lighting
  • Off-grid solar systems with battery storage
  • Grid-tied solar systems with battery backup
  • Remote telecommunications equipment power
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Cworth CE-H6K in Uganda?
Cworth CE-H6K is a 6kW hybrid inverter in Uganda. Key specs include battery voltage range 48V, max PV input voltage 500V, max PV input power 6kW, rated AC output 6kW.
What PV voltage limits should technicians use for Cworth CE-H6K?
For Cworth CE-H6K, use MPPT/operating voltage range 85V-450V, max PV input voltage 500V, and max PV input power 6kW when designing strings.
How much solar PV can be connected to Cworth CE-H6K?
Cworth CE-H6K allows up to 6kW PV input power. Use MPPT range 85V-450V, max PV input voltage 500V for string sizing checks.
What battery and charge current settings apply to Cworth CE-H6K?
Cworth CE-H6K is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current 120A.
What AC output should buyers and installers expect from Cworth CE-H6K?
Cworth CE-H6K has a rated AC output of 6kW. It operates with grid frequency 50/60Hz (Auto detection) and AC voltage range 230Vact5%. If needed, use the listed input range for compatibility checks.
What should buyers compare before ordering Cworth CE-H6K in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Cworth CE-H6K. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
