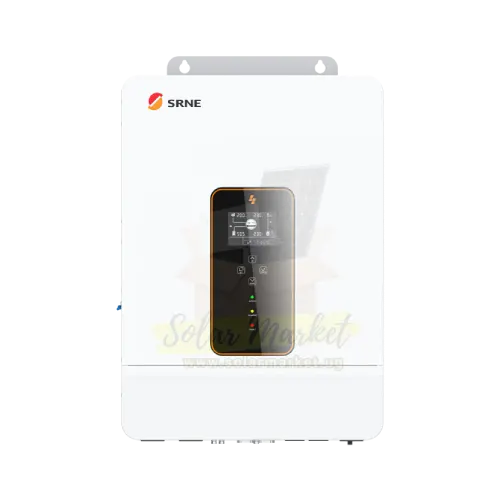

SRNE 12kW Three Phase Hybrid Inverter for Commercial and Three-phase equipment 48V Battery MPPT 650V 2-Year Warranty (ASF48120H3)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
SRNE · Hybrid Inverters

SRNE 12kW Three Phase Hybrid Inverter for Commercial and Three-phase equipment 48V Battery MPPT 650V 2-Year Warranty (ASF48120H3)

UGX5,462,180
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX109,244Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · 10 In stock
UGX5,462,180
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
SRNE 6kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC Dual MPPT 120-450VDC Expandable to 6 Units IP65 5-Year Warranty (HESP4860S100-H) SRNE 6kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC... UGX5,669,092 BLISON ENERGY Entelechy 60kW High Voltage Hybrid Inverter for Commercial and Large-scale grid-tied 850V Battery MPPT 1000V (BST-HPI-60KW-H3) Entelechy 60kW High Voltage Hybrid Inverter for Commercial and Large-s... UGX5,633,564 Entelechy Solar Solutions SRNE 10kW Single Phase Hybrid Inverter for Home solar backup and Small business power 48V Battery MPPT 425V 2-Year Warranty (ASP48100S200-H) SRNE 10kW Single Phase Hybrid Inverter for Home solar backup and Small... UGX6,879,400 BLISON ENERGY Cosuper 5kW 48V Solar Hybrid Inverter Pure Sine Wave MPPT 60A Parallel 3 Phase Support Spe5000 Cosuper 5kW 48V Solar Hybrid Inverter Pure Sine Wave MPPT 60A Parallel... UGX4,081,000 Baseline Africa Uganda
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 48 V
Solar Panels
UGX429,000
Battery
UGX2,862,000
Cables, mounting and protection
UGX50,474
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand SRNE Model ASF48120H3
Rated Power 12,000W Max PV Input Power 9,000W+9,000W
Max Charging Current 260A MPPT Voltage Range 200~650Vdc
Max PV Open Circuit Voltage 800Vdc+800Vdc Nominal Output Voltage 230/400Vac,Three-phase
Nominal Voltage 48 V Number of MPPT Trackers 2
Product Dimensions 620*445*130mm Product Weight 27 KG
Communication RS485/CAN/USB/Dry Contact Waveform pure sine wave
Efficiency 92% Warranty 2 years
AC Output Rated Current 50/60Hz Battery Type Li-ion / Lead-acid / User-defined
Certification IEC62109-1/IEC62109-2/UL1741/RoHs/EN61000-6-1/EN61000-6-3/FCC 15 class B Chemistry Lead-acid
Cooling Method air cooling Current Rating 260 A
Discharging time 10ms (typical) Energy 6HP
External Modules (Optional) Wi-Fi/GPRS Ingress Protection IP20 Indoor Only
Input AC Voltage Range 50/60Hz Load Motor Capacity 6HP
Max PV Input Current 22A+22A Max. AC Input/Output Apparent Power (VA) 24,000VA
Max. Bypass Overload Current 63A Noise <60dB
Output Cables Off-grid (default) / power the load without battery Protection Degree,IP20 Indoor Only
Rated AC Input/Output Active Power (W) 12,000W SKU SM-HYB-SRN-01312
Temperature Rating -10-55°C, >45°C Derate

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

SRNE ASF48120H3 is a 12kW 48V Three Phase hybrid inverter for Uganda power conditions. It supports up to 9kW PV input and is suitable for Commercial, Three-phase equipment, Water pumping where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
  • RATED OUTPUT POWER: 12,000W continuous output with a maximum surge capacity of 24, for starting motors and handling transient loads.
  • THREE-PHASE OUTPUT: Delivers 230/400Vac three-phase power, suitable for commercial equipment, industrial machinery, and three-phase loads in Uganda.
  • DUAL MPPT SOLAR CHARGING: Two independent MPPT trackers with a voltage range of 200-650VDC and a maximum PV input of 9,000W each, supporting up to 18kW total solar capacity.
  • HIGH SURGE AND MOTOR LOAD CAPACITY: Capable of handling up to 6HP motor loads, making it ideal for pumps, compressors, and other inductive equipment common in commercial settings.
  • FLEXIBLE BATTERY COMPATIBILITY: Works with 48V Li-ion, lead-acid, or user-defined battery types, with a maximum hybrid charging current of 260A.

What's Included

  • 1x SRNE ASF48120H3 Hybrid Inverter
  • 1x User Manual
  • 1x Communication Cable Kit
  • 1x Warranty Card

Applications

  • Commercial and industrial solar backup systems
  • Three-phase equipment and machinery power
  • Water pumping and irrigation systems
  • Manufacturing and processing facilities
  • Office buildings and retail complexes
  • Telecommunications and data centers
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of SRNE ASF48120H3 in Uganda?
SRNE ASF48120H3 is a 12kW Three Phase hybrid inverter in Uganda. Key specs include battery voltage range 48V, max PV input voltage 800Vdc+800Vdc, max PV input power 9kW, rated AC output 12kW, communication RS485/CAN, warranty 2 years.
What PV voltage limits should technicians use for SRNE ASF48120H3?
For SRNE ASF48120H3, use MPPT/operating voltage range 200~650Vdc, max PV input voltage 800Vdc+800Vdc, and max PV input power 9kW when designing strings.
How much solar PV can be connected to SRNE ASF48120H3?
SRNE ASF48120H3 allows up to 9kW PV input power. Use MPPT range 200~650Vdc, max PV input voltage 800Vdc+800Vdc for string sizing checks.
What battery and charge current settings apply to SRNE ASF48120H3?
SRNE ASF48120H3 is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current 260A.
What AC output should buyers and installers expect from SRNE ASF48120H3?
SRNE ASF48120H3 has a rated AC output of 12kW on Three Phase output. It operates with grid frequency 50/60Hz and AC voltage range 230/400Vac,Three-phase. If needed, use phase voltage 170~280V, line voltage 305~485V for compatibility checks.
What should buyers compare before ordering SRNE ASF48120H3 in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for SRNE ASF48120H3. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
