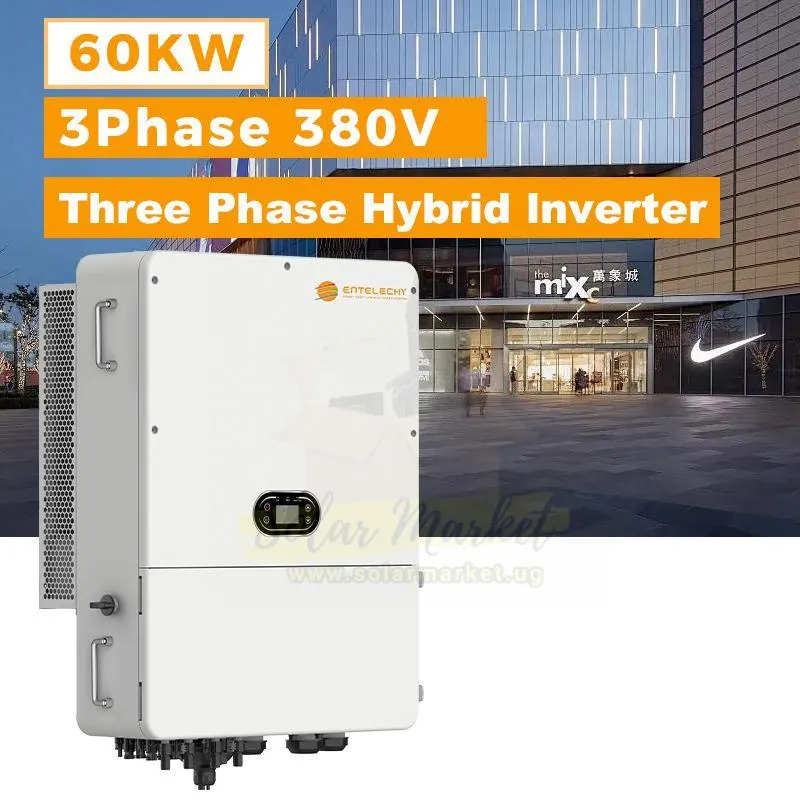

Entelechy 60kW High Voltage Hybrid Inverter for Commercial and Large-scale grid-tied 850V Battery MPPT 1000V (BST-HPI-60KW-H3)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
Entelechy · Hybrid Inverters

Entelechy 60kW High Voltage Hybrid Inverter for Commercial and Large-scale grid-tied 850V Battery MPPT 1000V (BST-HPI-60KW-H3)

UGX5,633,564
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX112,671
Sold by
Entelechy Solar Solutions ✓
In stock
UGX5,633,564
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
GoodWe Hybrid Inverters 5kW power output suitable for residential solar installations48V system compatibility for efficient energy storageFanless, compact design for quiet and stylish operati GoodWe Hybrid Inverters 5kW power output suitable for residential sola... UGX6,082,322 Masrcorp Solar Uganda SRNE 6kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC Dual MPPT 120-450VDC Expandable to 6 Units IP65 5-Year Warranty (HESP4860S100-H) SRNE 6kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC... UGX5,669,092 BLISON ENERGY SRNE 12kW Three Phase Hybrid Inverter for Commercial and Three-phase equipment 48V Battery MPPT 650V 2-Year Warranty (ASF48120H3) SRNE 12kW Three Phase Hybrid Inverter for Commercial and Three-phase e... UGX5,462,180 Masrcorp Solar Uganda 55kVA 48V Kema Solar Hybrid Inverter N Sub5500 55kVA 48V Kema Solar Hybrid Inverter N Sub5500 UGX5,386,920 Masrcorp Solar Uganda
Ways to payAll options
Pay NowBank Transfer
Complete your systemMatched to high voltage
Solar Panels
UGX429,000
Battery
UGX34,080,800
Cables, mounting and protection
UGX41,176
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Entelechy Model BST-HPI-60KW-H3
Rated Power 60 KW Max PV Input Power 90 KW
Max Charging Current 2*100A MPPT Voltage Range 180 V
Nominal Output Voltage 3 / N / PE,230V / 400Vac Nominal Output Frequency 50Hz / 60Hz
Nominal Voltage 180 V Number of MPPT Trackers 4
Surge Power 1.5 times / 10s Product Dimensions 620 x 900 x 300 mm
Product Weight 92 KG Communication CAN / RS485
Efficiency 98.40% Operating Temperature -30 ~ +60℃
AC Output Rated Current 100 A Battery Type Lithium
Chemistry Lithium Cooling Method Smart Cooling
Current Rating 100 A Discharging time <10ms
Display LCD / LED Humidity 0~95%
Ingress Protection IP66 Max Charge/Discharge Power (15s) 66kW
Max PV Short Circuit Current (per tracker) 4*60A Max. AC Input/Output Apparent Power (VA) 96000Wp
Max. PV short circuit current 4*60A Max. Shorted Current 4*40A
Maximum input voltage 1100V Maximum output current 100 A
Number of Cells 4 Permissible Altitude 4000m
Power Factor 0.8 leading ~ 0.8 lagging Protection Degree,IP66
PV Start-up Voltage 200V Rated AC Input/Output Active Power (W) 60 KW
Short-circuit Current (Isc) 4*60A SKU SM-HYB-ENT-01138
Start Voltage 3 / N / PE, 230 V / 400 Vac THDi (@Rated Power),<3%

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Entelechy BST-HPI-60KW-H3 is a 60kW 1100V hybrid inverter for Uganda power conditions. It supports up to 96kW PV input and is suitable for Commercial, Large-scale grid-tied, Factory and warehouse where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • HIGH POWER OUTPUT: Rated 60kW continuous output with 66kVA peak capacity, suitable for commercial and industrial loads.
  • FOUR MPPT TRACKERS: Each tracker handles up to 8 strings with a voltage range of 180V-1000V, maximizing energy harvest from diverse PV arrays.
  • HIGH VOLTAGE BATTERY COMPATIBILITY: Supports lithium batteries with a voltage range of 160V to 850V, enabling efficient energy storage.
  • HIGH EFFICIENCY: Maximum efficiency of 98.4% and European efficiency of 97.5% reduce energy losses.
  • ROBUST PROTECTION: Includes DC switch, reverse polarity, anti-islanding, AC short circuit, residual current monitoring, and ground fault protection.
  • OUTDOOR RATED: IP66 protection degree and smart cooling allow operation in harsh weather conditions across Uganda.

What's Included

  • Entelechy BST-HPI-60KW-H3 Hybrid Inverter
  • Mounting brackets
  • User manual
  • Communication cable (CAN/RS485)

Applications

  • Commercial and industrial solar backup systems
  • Large-scale grid-tied solar installations with battery storage
  • Factory and warehouse power backup
  • Agricultural processing facilities
  • Institutional buildings (schools, hospitals, offices)
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Entelechy BST-HPI-60KW-H3 in Uganda?
Entelechy BST-HPI-60KW-H3 is a 60kW hybrid inverter in Uganda. Key specs include battery voltage range 850V, MPPT layout 4 MPPTs, max PV input voltage 1100V, max PV input power 96kW, rated AC output 60kW, communication RS485/CAN.
What PV voltage limits should technicians use for Entelechy BST-HPI-60KW-H3?
For Entelechy BST-HPI-60KW-H3, use MPPT/operating voltage range 180V-1000V, max PV input voltage 1100V, and max PV input power 96kW when designing strings.
How much solar PV can be connected to Entelechy BST-HPI-60KW-H3?
Entelechy BST-HPI-60KW-H3 allows up to 96kW PV input power. Use MPPT range 180V-1000V, max PV input voltage 1100V, MPPT layout 4 MPPTs for string sizing checks.
What battery and charge current settings apply to Entelechy BST-HPI-60KW-H3?
Entelechy BST-HPI-60KW-H3 is built for 850V battery systems. The battery voltage range is 850V, with maximum charging current the listed charging current.
What AC output should buyers and installers expect from Entelechy BST-HPI-60KW-H3?
Entelechy BST-HPI-60KW-H3 has a rated AC output of 60kW. It operates with grid frequency the listed grid frequency and AC voltage range 180V-1000V. If needed, use the listed input range for compatibility checks.
What should buyers compare before ordering Entelechy BST-HPI-60KW-H3 in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Entelechy BST-HPI-60KW-H3. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
