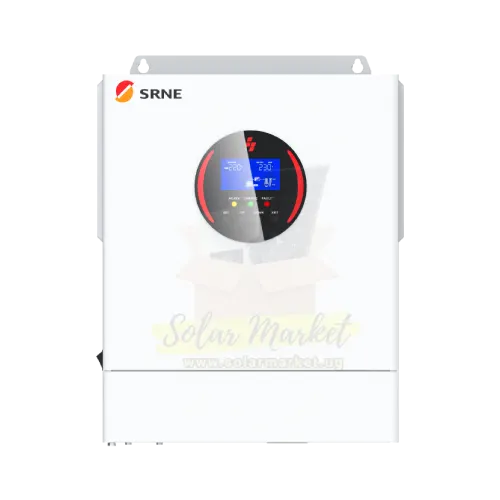

SRNE 5kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC Output Single MPPT 60-450VDC 100A Hybrid Charge 2-Year Warranty (AFP4850S100-H)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
SRNE · Hybrid Inverters

SRNE 5kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC Output Single MPPT 60-450VDC 100A Hybrid Charge 2-Year Warranty (AFP4850S100-H)

UGX2,791,404
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX60,000
Sold by
BLISON ENERGY ✓
In stock
UGX2,791,404
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
Cworth 6kW High Voltage Hybrid Inverter for Home and Small Business Backup 48V 230VAC Output 500V PV Open Circuit Dual MPPT 120A Charge 12-Unit Parallel Expandable (CE-H6K) Cworth 6kW High Voltage Hybrid Inverter for Home and Small Business Ba... UGX3,031,600 Cworth Energy Entelechy 3000W Hybrid Inverter for Home and Small Business Backup 24VDC 230VAC Output 100A MPPT 500VDC PV Input RS232 Communication 0-55C Operating Temperature (BST-HPL-3000W) Entelechy 3000W Hybrid Inverter for Home and Small Business Backup 24V... UGX3,072,853 Entelechy Solar Solutions SRNE 1.5kW 3, Hybrid Inverter for Home and Small Business Backup 12V 230VAC Single-Phase 1 MPPT 15-90VDC 60A Solar Charger 60A Grid Charger RS485/CAN/USB (HF1215S60-108) SRNE 1.5kW 3, Hybrid Inverter for Home and Small Business Backup 12V 2... UGX2,921,894 Masrcorp Solar Uganda 5kVA 48V Tbb Riio Sun Ii All In One Solar Hybrid Inverter Versatile Solar And Backup Power Solution 5kVA 48V Tbb Riio Sun Ii All In One Solar Hybrid Inverter Versatile So... UGX3,180,000 Masrcorp Solar Uganda
Ways to payAll options
Pay NowBank Transfer
Complete your systemMatched to 48 V
Solar Panels
UGX429,000
Battery
UGX2,862,000
Cables, mounting and protection
UGX64,680
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand SRNE Model AFP4850S100-H
Rated Power 5000W Max PV Input Power 7500 W
Max Charging Current 60A MPPT Voltage Range 60~450Vdc
Max PV Open Circuit Voltage 500Vdc Nominal Output Voltage 230Vac
Nominal Output Frequency 50Hz ± 0.3Hz/60Hz ± 0.3Hz Nominal Voltage 48 V
Number of MPPT Trackers 1 Surge Power 10000VA
Product Dimensions 359.5*210*133 mm Product Weight 10 KG
Communication USB/RS485/WiFi/Dry Control Waveform Pure sine wave
Efficiency >92% Warranty 2 years
Battery Type Lead-Acid / Li-ion Chemistry Lead-acid
Current Rating 100 A Discharging time 10ms
Energy 4HP Humidity 5% to 95%
Ingress Protection IP20 Only Indoor Input AC Voltage Range 90Vac~280Vac(±2%)
Load Motor Capacity 4HP Max PV Input Current 22A
Max. AC Input/Output Apparent Power (VA) 5000W Max. Bypass Overload Current 40A
Noise ≤60dB Protection Degree,IP20 Only Indoor
Rated AC Input/Output Active Power (W) 5000W SKU SM-HYB-SRN-01225
Temperature Rating -10℃~55℃, >45°C Derating

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

SRNE AFP4850S100-H is a 5kW 48V hybrid inverter for Uganda power conditions. It supports up to 7.5kW PV input and is suitable for Home backup power, Small business power, Solar self-consumption where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED OUTPUT POWER: 5000W continuous output with 10kVA peak capacity, suitable for running lights, fridges, TVs, and small machinery.
  • BATTERY COMPATIBILITY: Works with both lead-acid and lithium batteries at 48V nominal voltage, with a 40-58Vdc operating range for flexibility.
  • MPPT SOLAR CHARGING: Single MPPT tracker with 60-450VDC input range and 99.9% efficiency, accepting up to 7500W of solar panels.
  • HYBRID CHARGING CAPACITY: Delivers up to 100A total hybrid charging current, combining solar and grid/generator sources for faster battery replenishment.
  • COMMUNICATION OPTIONS: Includes USB, RS485, WiFi, and dry contact ports for remote monitoring and system integration.
  • INDOOR INSTALLATION: IP20 protection rating with forced air cooling, designed for indoor use only in dry environments.

What's Included

  • SRNE AFP4850S100-H Hybrid Inverter unit
  • User manual
  • Communication cable (USB/RS485)
  • Mounting brackets
  • Warranty card (2 years)

Applications

  • Home backup power for essential loads
  • Small business power backup for offices and shops
  • Solar self-consumption systems with battery storage
  • Grid-tied backup with battery autonomy
  • Off-grid solar systems for rural electrification
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of SRNE AFP4850S100-H in Uganda?
SRNE AFP4850S100-H is a 5kW hybrid inverter in Uganda. Key specs include battery voltage range 48V, max PV input voltage 500Vdc, max PV input power 7.5kW, rated AC output 5kW, communication USB/RS485/WiFi/Dry Control, monitoring WiFi Monitoring, warranty 2 years.
What PV voltage limits should technicians use for SRNE AFP4850S100-H?
For SRNE AFP4850S100-H, use MPPT/operating voltage range 60~450Vdc, max PV input voltage 500Vdc, and max PV input power 7.5kW when designing strings.
How much solar PV can be connected to SRNE AFP4850S100-H?
SRNE AFP4850S100-H allows up to 7.5kW PV input power. Use MPPT range 60~450Vdc, max PV input voltage 500Vdc for string sizing checks.
What battery and charge current settings apply to SRNE AFP4850S100-H?
SRNE AFP4850S100-H is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current 22A.
What AC output should buyers and installers expect from SRNE AFP4850S100-H?
SRNE AFP4850S100-H has a rated AC output of 5kW. It operates with grid frequency the listed grid frequency and AC voltage range 230Vac. If needed, use 90Vac~280Vac(±2%) for compatibility checks.
What should buyers compare before ordering SRNE AFP4850S100-H in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for SRNE AFP4850S100-H. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
