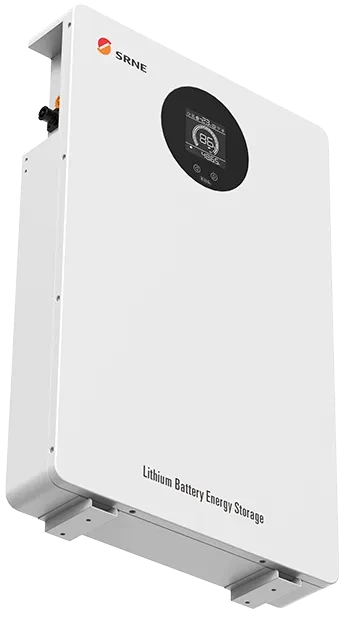

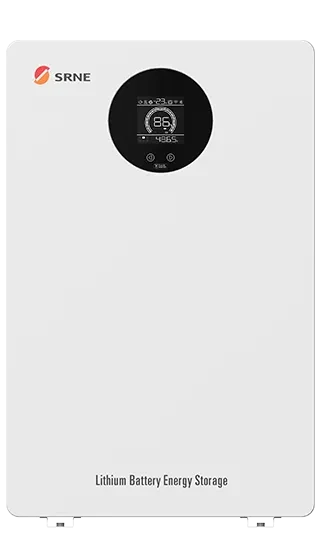

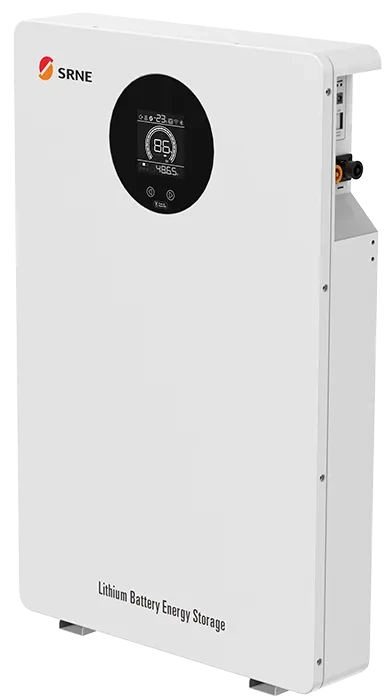

The SRNE EOS05B 5.12kWh 100Ah 48V LiFePO4 Wall-Mounted Lithium Battery is a compact, high-efficiency solar storage unit built for modern homes and energy-conscious users. It features plug-and-play installation, universal inverter compatibility, and smart wireless monitoring via Bluetooth and Wi-Fi.
Ideal for both off-grid and hybrid solar systems, the EOS05B delivers long-lasting performance, advanced safety features, and support for up to 16 units in parallel, making it a scalable and future-ready solar battery solution.
Key Features and Benefits
High-Capacity 5.12kWh Energy Storage
- Stores 100Ah at 51.2V, delivering stable power for solar inverters and battery backup systems.
Space-Saving Wall-Mounted Design
- Only 10cm thick, easily mounted on a wall to save space and keep your installation clean and tidy.
Long Life with Deep-Cycle Durability
- Up to 6000 cycles at 80% DOD, delivering over 20 years of use in optimal conditions.
Fast and Efficient Charging
- Supports 100A continuous and 110A peak charging, enabling rapid energy recovery.
Advanced Safety and Battery Management
- Built with LiFePO4 cells and a reliable BMS, offering protection against overcharge, over-discharge, short circuits, and thermal risks.
Expandable Storage Capacity
- Connect up to 16 batteries in parallel, expanding your system to 81.92kWh for larger power demands.
Smart Communication and Monitoring
- Supports CAN, RS485, USB, Bluetooth, and Wi-Fi, enabling real-time data tracking via mobile app or PC.
Plug-and-Play Installation
- Wiring can be done from either side, and the battery comes ready to integrate into existing systems.
Ideal Applications
- Home solar energy storage
- Off-grid and hybrid power systems
- Wall-mounted indoor battery installations
- Commercial and residential energy backup
- Solar systems with remote monitoring requirements

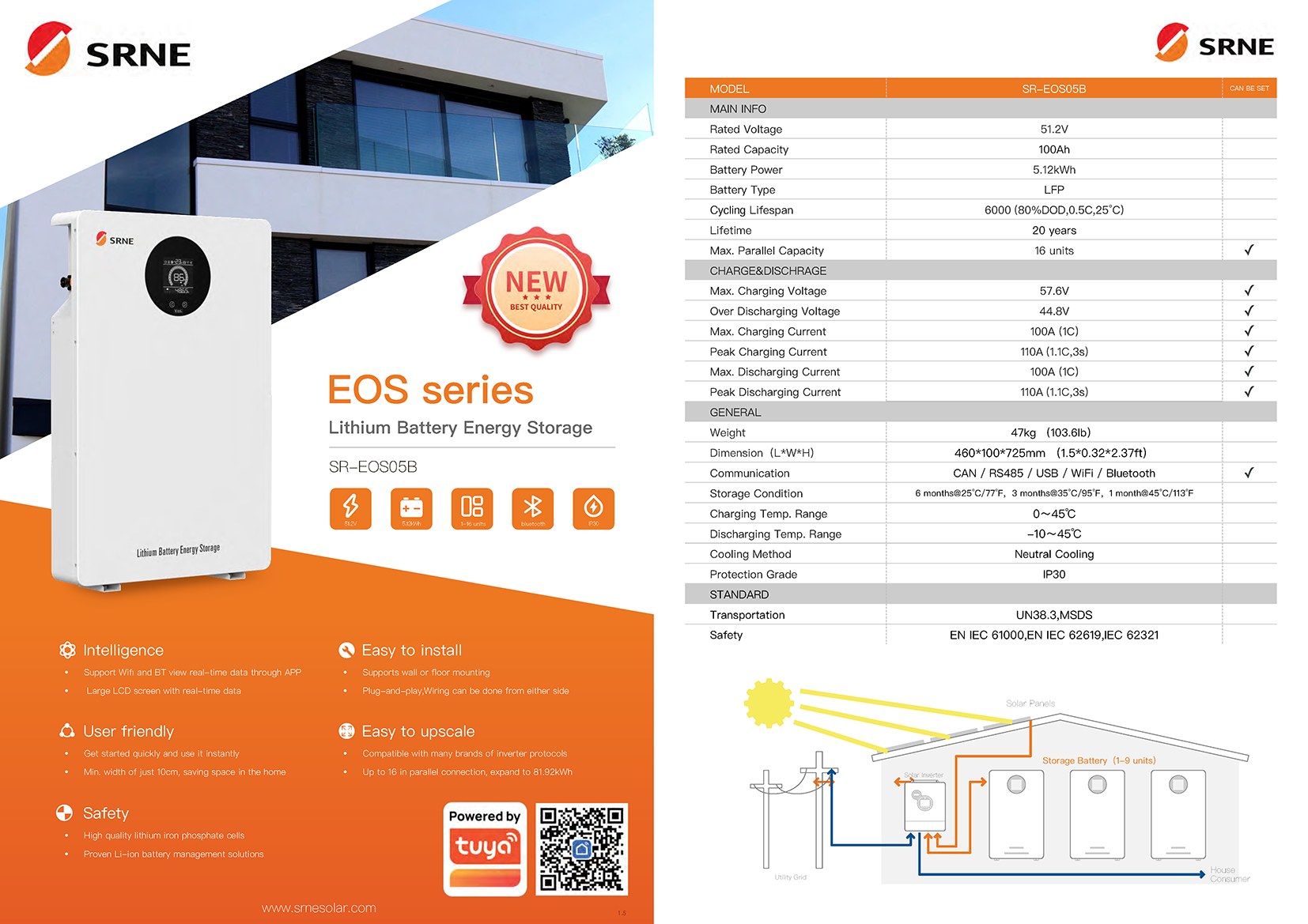

Technical Summary
- Model: SR-EOS05B
- Battery Capacity: 5.12kWh
- Voltage: 51.2V
- Current: 100Ah
- Cycle Life: 6000 cycles (80% DOD, 0.5C)
- Charging Current: Max 100A / Peak 110A
- Discharge Current: Max 100A / Peak 110A
- Parallel Connection: Up to 16 units
- Weight: 47kg
- Dimensions: 460 × 100 × 725mm
- Communication: CAN / RS485 / USB / Bluetooth / Wi-Fi
- Mounting: Wall or floor mount
- Cooling: Natural air cooling
- Protection Rating: IP30
- Warranty: 5 Years
