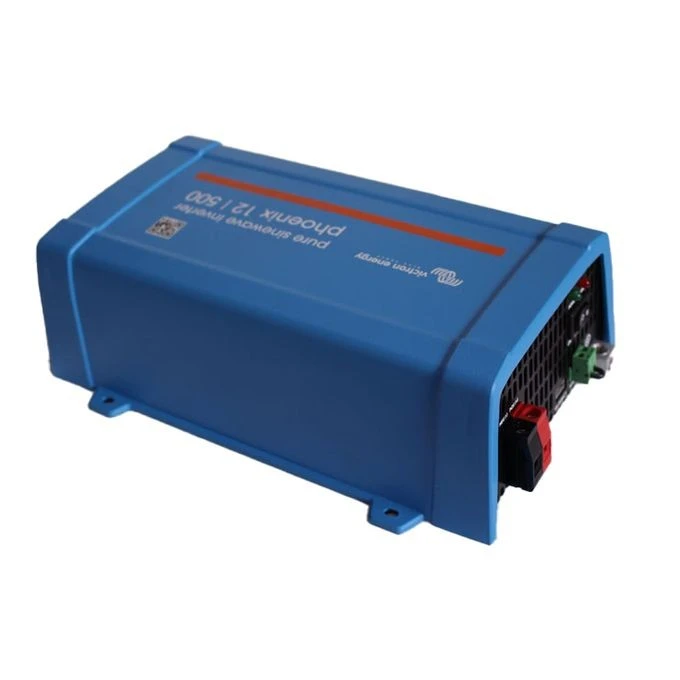

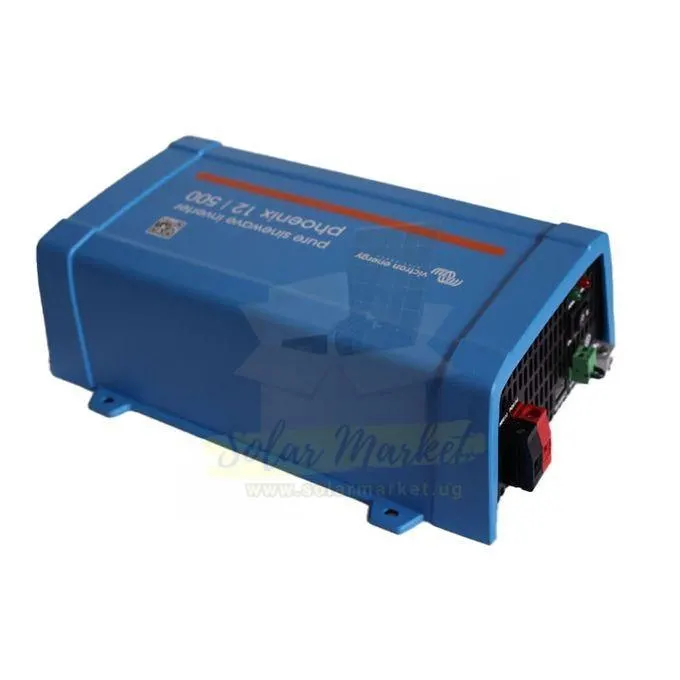

Victron 12/500 Solar Inverter PSW 500VA for Home solar backup, Small business power, Telecom and ICT
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
victron

Victron 12/500 Solar Inverter PSW 500VA for Home solar backup, Small business power, Telecom and ICT

UGX727,920
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX21,838Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · In stock
UGX727,920
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · manufacturing defects
The warranty is this product's own (1 year). 7-day return window for manufacturing defects. Contact Masrcorp Solar support with your order reference to arrange an exchange or repair. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Victron Model 12/500
Rated Power 500VA Nominal Output Frequency 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1%
Nominal Voltage 9.2 - 17 V Surge Power 900W
Product Dimensions 86 x 172 x 275 mm Product Weight 3.9 KG
Efficiency 90 / 90 / 91% Operating Temperature -40 to +65°C (fan assisted cooling) Derate 1.25% per °C above 40°C
Battery charged detect (adjustable) 14.0 / 28.0 / 56.0V Battery Type connection,Screw terminals
Battery-connection Screw terminals Certification EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
Continuous power at 25°C / 40°C 500VA DC low restart and alarm (adjustable) 10.9 / 21.8 / 43.6V
DC low shut down (adjustable) 9.3 / 18.6 / 37.2V EMC EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
Humidity condensing),max 95% Humidity (non-condensing) max 95%
Ingress Protection IP 21 Input AC Voltage Range 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1%
Integrated Transfer switch Filax Material & Colour,Steel chassis and plastic cover (blue Ral 5012)
Material & Colour Steel chassis and plastic cover (blue Ral 5012) Maximum cable cross-section 10mm² / AWG8
Protection IP 21 Remote On/Off Yes
Safety EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 SKU 109
Standard AC outlets 230V: Schuko (CEE 7/4), IEC-320 (male plug included); 120V: Nema 5-15R, GFCI Zero load power (W) 6 / 6.5 / 9W
Zero load power in AES mode (W) 1 / 1.5 / 3.0W

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

The Victron 12/500 Solar Inverter PSW is engineered for reliable performance in Uganda’s diverse energy environments. Operating at low voltage (LV) and single phase, it provides a stable 500VA continuous output, making it suitable for residential and small commercial solar installations. The inverter’s pure sine wave technology ensures compatibility with sensitive electronics, while adjustable AC output voltage and frequency offer system flexibility. With robust protection features, fan-assisted cooling, and remote on-off functionality, this inverter is designed for durability and ease of integration. Its compact steel chassis and IP21 protection category make it suitable for indoor installations, and the automatic transfer switch (Filax) enables seamless switching between power sources. The Victron 12/500 meets international safety and EMC standards, ensuring dependable operation in Uganda’s grid and off-grid scenarios.

About this item

  • PURE SINE WAVE OUTPUT: Delivers clean AC power suitable for sensitive electronics and appliances.
  • LOW VOLTAGE, SINGLE PHASE: Designed for 12V DC input and single phase 230V or 120V AC output, ideal for residential and small business use.
  • REMOTE ON-OFF CAPABILITY: Allows integration with external control systems for flexible operation.
  • AUTOMATIC TRANSFER SWITCH: Filax switch enables seamless transition between power sources.
  • FAN-ASSISTED COOLING: Maintains performance in high ambient temperatures, suitable for Uganda’s climate.
  • ROBUST PROTECTION: Comprehensive safety features and compliance with international standards.

Applications

  • Home solar backup systems
  • Small business power solutions
  • Telecom and ICT equipment
  • Rural electrification projects
  • Mobile and off-grid installations
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What is the voltage class and phase of the Victron 12/500 inverter?
The Victron 12/500 operates at low voltage (LV) and is configured for single phase AC output.
Can this inverter be used with sensitive electronics?
Yes, the pure sine wave output ensures compatibility with sensitive electronics and appliances.
Is remote on-off control supported?
Yes, the inverter includes remote on-off functionality for integration with external control systems.
What types of AC outlets are available?
The inverter provides Schuko (CEE 7/4) and IEC-320 outlets for 230V, and Nema 5-15R, GFCI for 120V.
Is the inverter suitable for Uganda’s climate?
Yes, it features fan-assisted cooling and operates reliably in ambient temperatures from -40°C to +65°C.
Does the inverter have an automatic transfer switch?
Yes, the Filax automatic transfer switch enables seamless switching between power sources.
What safety standards does the inverter meet?
It complies with EN-IEC 60335-1, EN-IEC 62109-1, UL 458, and relevant EMC standards.
