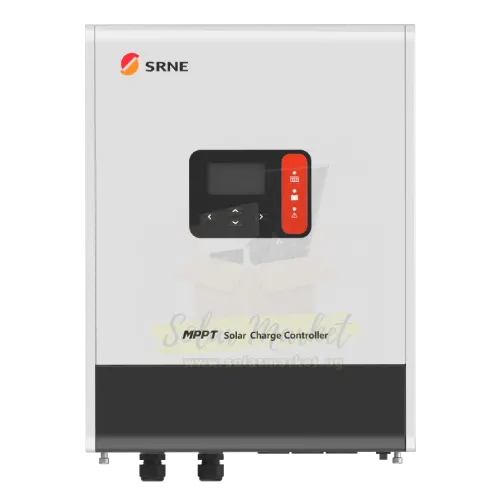

SRNE 6kW Dual MPPT 48V 100A MPPT Charge Controller for Off-Grid Solar Systems 500VOC+500VOC 80-450V MPPT Range 1-16 Units Parallel Bluetooth RS485 CAN (MF48100N50)

Name: SRNE 6kW Dual MPPT 48V 100A MPPT Charge Controller for Off-Grid Solar Systems 500VOC+500VOC 80-450V MPPT Range 1-16 Units Parallel Bluetooth RS485 CAN (MF48100N50)
Brand: SRNE
SKU: SM-CHA-SRN-01329
Price: 1591000.00 UGX
Availability: InStock

SRNE

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: SRNE MF48100N50 is a charge controller in Uganda. Key datasheet highlights include Num. of MPPT Trackers: 2; Max.

UGX1,591,000

FREE delivery · 7 Days

10 available

Minimum order qty 1

QTY

Compare With Similar capacity Charge Controllers

Estimate Shipping Time 7 Days

Inhouse product

Message Seller

Brand SRNE

Products from this brand

Product Information

Technical specifications

Brand	SRNE	Model	RS485
Rated Power	6000	Max PV Input Power	3,000W+3,000W
Max Charging Current	100 A	MPPT Voltage Range	80 V
Max PV Open Circuit Voltage	500Vdc+500Vdc	Nominal Voltage	80 V
Number of MPPT Trackers	2	Product Dimensions	440340124 mm
Product Weight	11 KG	Communication	Built-in Bluetooth, TTL(connect to WiFi)，RS485
Efficiency	96%	Warranty	3 Years
Battery Type	USE / FLD / GEL / LI / SLD(default)	Chemistry	Gel
Cooling Method	Intelligent fan	Current Rating	100
Ingress Protection	IP21	Max Charging Voltage	120V
Max PV Input Current	20A+20A	Number of Cells	1~16 units
Programmable Relay	NO, C, NC -current limit: DC: 10A,30VDC/ AC: 10A,250VAC	Protection	Degree,IP21
Safety Standard	Built-in Bluetooth, TTL(connect to WiFi)，RS485	SKU	SM-CHA-SRN-01329
Start Voltage	up Charging Voltage,120V

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

SRNE MF48100N50 is a charge controller for Uganda operating conditions. It is suitable for Off-grid residential, Remote telecom, Solar water pumping, Commercial. Buyers should also confirm Num. of MPPT Trackers: 2; Max. Open Circuit Voltage: 500Vdc+500Vdc; MPPT Voltage Range: 80V~ 450V; Max. Input Current: 20A+20A, verified seller pricing, warranty terms, and installer compatibility before ordering

About this item

DUAL MPPT TRACKERS: Two independent MPPT channels each rated at 3000W maximum input power and 50A charging current, enabling simultaneous optimization of two PV arrays with different orientations or shading conditions.
INPUT: Each MPPT tracker accepts up to 500V open-circuit voltage, with a working MPPT range of 80V to 450V, allowing series panel strings that reduce wiring losses.
48V 100A CHARGING: Delivers up to 100A total charging current to a 48V battery bank, supporting battery types including USE, FLD, GEL, LI, and SLD with a voltage range of 36V to 64V.
SCALABLE PARALLEL OPERATION: Up to 16 units can be connected in parallel to increase total charging capacity for large off-grid systems, with coordinated MPPT and battery management.
BUILT-IN COMMUNICATION: Integrated Bluetooth for local monitoring via mobile app, plus TTL (WiFi) and RS485 ports for remote data logging and system integration; optional CAN (RV-C protocols) available.
INTELLIGENT COOLING AND PROTECTION: IP21-rated enclosure with intelligent fan cooling ensures stable operation in ambient temperatures from -20°C to 65°C; programmable relay supports auxiliary load control.

What's Included

1x SRNE MF48100N50 MPPT Charge Controller
1x User Manual
1x Bluetooth module (built-in)
1x Communication cable (TTL/RS485)
Mounting brackets and screws

Applications

Off-grid residential solar systems
Remote telecom and rural power stations
Solar water pumping systems
Commercial and industrial off-grid installations
Backup power for small businesses and farms

Product FAQs

SRNE MF48100N50 is a charge controller in Uganda. Key datasheet specs include Num. of MPPT Trackers: 2; Max. Open Circuit Voltage: 500Vdc+500Vdc; MPPT Voltage Range: 80V~ 450V; Max. Input Current: 20A+20A.

Browse live offers

Installers should verify Num. of MPPT Trackers (2), Max. Open Circuit Voltage (500Vdc+500Vdc), and MPPT Voltage Range (80V~ 450V) before commissioning SRNE MF48100N50.

Browse live offers Compare models Find technicians

Compare verified seller price, warranty, authenticity, and after-sales support for SRNE MF48100N50. Match all offers against the same datasheet values: Num. of MPPT Trackers: 2; Max. Open Circuit Voltage: 500Vdc+500Vdc; MPPT Voltage Range: 80V~ 450V; Max. Input Current: 20A+20A.

Browse live offers Compare models Request quotes

Installers should verify Max. Input Current (20A+20A), ensure the mounting or system fit matches the site, and confirm any protection or operating limits listed for SRNE MF48100N50.

Browse live offers Find technicians

Durability should be judged using Max. Input Power (3,000W+3,000W) and Start-up Charging Voltage (120V), plus the warranty term and the way the product is mounted or used.

Browse live offers Request quotes

It is practical where the site needs Num. of MPPT Trackers (2), Max. Open Circuit Voltage (500Vdc+500Vdc), and MPPT Voltage Range (80V~ 450V), because those are the model's core operating limits.
