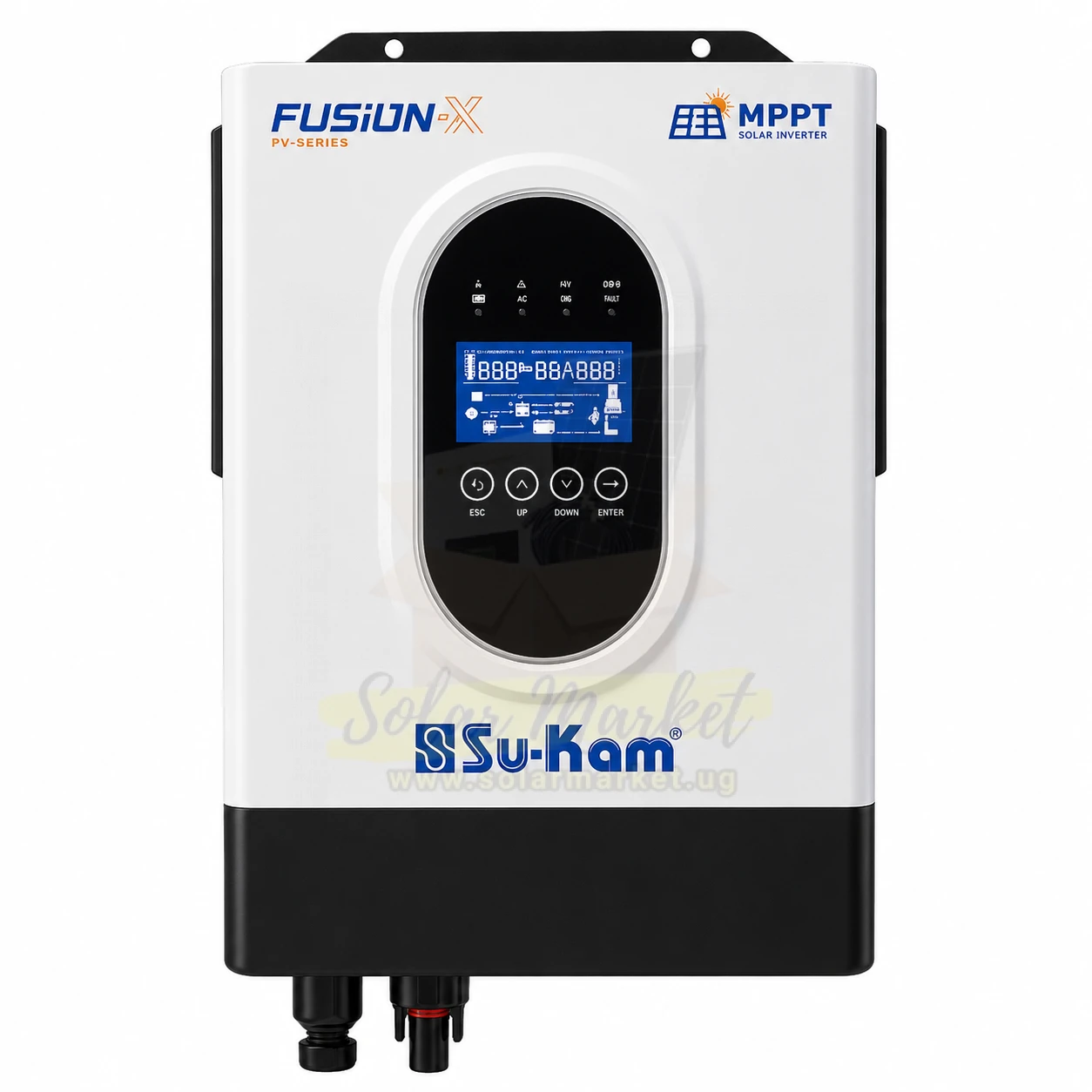

Sukam 6.2kVA/5500W Hybrid Inverter for Home and Small Business Backup 48VDC 230VAC Output 120A MPPT LCD & App Monitoring (FX6200-48H)

Name: Sukam 6.2kVA/5500W Hybrid Inverter for Home and Small Business Backup 48VDC 230VAC Output 120A MPPT LCD & App Monitoring (FX6200-48H)
Brand: Sukam
SKU: SM-HYB-SUK-01340
Price: 2162000.00 UGX
Availability: InStock

Sukam

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: Sukam FX6200-48H is a 6.2kW hybrid inverter in Uganda. It supports up to 6kW PV input and is built for Home backup power, Small business power, Solar self-consumption where battery-backed continuity and stable AC output matter

UGX2,068,000

Allow cash on delivery

9 available

Minimum order qty 1

QTY

Order on WhatsApp

Compare With Similar capacity Hybrid Inverters

Sold by Auto Solutions plus ltd

Message Seller

Brand Sukam

Products from this brand

Product Information

Technical specifications

Brand	SMA	Model	230VAC ± 5%
Rated Power	6200VA/5500W	Max PV Input Power	6000 W
Max Charging Current	100A	Max PV Open Circuit Voltage	500VDC
Nominal Voltage	170-280 V	Number of MPPT Trackers	120A
Surge Power	12400VA	Product Dimensions	550mm393mm196mm
Product Weight	9.7kg	Waveform	Pure Sine Wave
AC Output Rated Current	120A	Current Rating	120
Display	LCD & App	Float Charge Voltage	56.0VDC
Input Voltage Range	170-280VAC (UPS), 90-280VAC (Appliances)	Max PV Input Current	120A
Max. AC Input/Output Apparent Power (VA)	6200VA/5500W	Maximum Charge Power	6000W
Over Discharging Voltage	44.0VDC	Overcharge Protection	64.0VDC
Parallel Capability	W/O	Power Factor	,1
Rated AC Input/Output Active Power (W)	6200VA/5500W	SKU	SM-HYB-SUK-01340
Start Voltage	230VAC	Zero load power (W)	<40W

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

Sukam FX6200-48H is a 6.2kW hybrid inverter for Uganda power conditions. It supports up to 6kW PV input and is suitable for Home backup power, Small business power, Solar self-consumption where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

RATED POWER: 6.2kVA/5500W continuous output with 12.4kVA surge capacity for handling startup loads of appliances and tools.
BATTERY VOLTAGE: Operates on a 48VDC battery bank, with low battery alarm at 44.0VDC and recovery at 46.0VDC for system protection.
MPPT SOLAR CHARGING: Integrated 120A MPPT charge controller supports up to 6000W PV array with a maximum open circuit voltage of 500VDC.
AC INPUT RANGE: Selectable voltage range of 170-280VAC for UPS mode and 90-280VAC for appliance mode, accommodating unstable grid conditions common in Uganda.
MONITORING: LCD display and RS485 communication port for BMS integration, plus app-based monitoring for remote system management.
PURE SINE WAVE: Delivers clean 230VAC ±5% pure sine wave output at 50/60Hz auto-sensing, suitable for sensitive electronics.

What's Included

Sukam FX6200-48H Hybrid Inverter unit
User manual
RS485 communication cable
Mounting brackets and screws

Applications

Home backup power during grid outages
Small business power backup for shops and offices
Solar self-consumption systems with battery storage
Off-grid or hybrid residential solar installations

Product FAQs

Sukam FX6200-48H is a 6.2kW hybrid inverter in Uganda. Key specs include max PV input voltage 500VDC, max PV input power 6kW, rated AC output 6.2kW, communication RS485.

Browse live offers

For Sukam FX6200-48H, use MPPT/operating voltage range 500VDC, max PV input voltage 500VDC, and max PV input power 6kW when designing strings.

Browse live offers Find technicians

Sukam FX6200-48H allows up to 6kW PV input power. Use max PV input voltage 500VDC for string sizing checks.

Browse live offers

Sukam FX6200-48H is built for the listed battery voltage battery systems. The battery voltage range is the listed battery voltage, with maximum charging current the listed charging current.

Browse live offers

Sukam FX6200-48H has a rated AC output of 6.2kW. It operates with grid frequency 50Hz/60Hz (Auto Sensing) and AC voltage range 170-280VAC (UPS), 90-280VAC (Appliances). If needed, use 170-280VAC (UPS), 90-280VAC (Appliances) for compatibility checks.

Browse live offers Request quotes Find technicians

Compare verified seller pricing, warranty terms, authenticity, and installer support for Sukam FX6200-48H. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.

Browse live offers Compare models Request quotes
