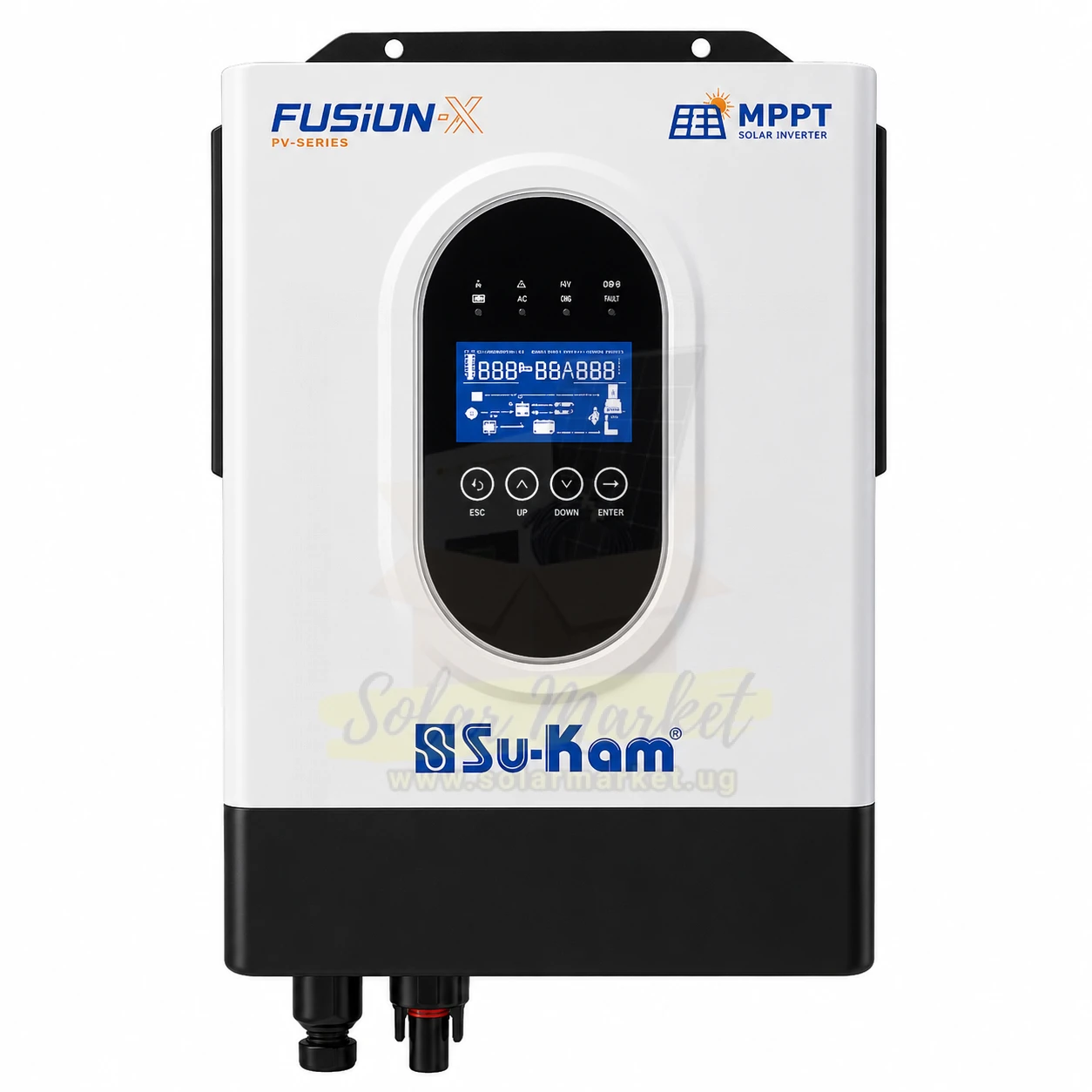

Sukam 3kW Hybrid Inverter for Home backup power and Small business backup (FX3200-24S)

Name: Sukam 3kW Hybrid Inverter for Home backup power and Small business backup (FX3200-24S)
Brand: Sukam
SKU: SM-HYB-SUK-01338
Price: 1667500.00 UGX
Availability: InStock

Sukam

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: Sukam FX3200-24S is a 3kW hybrid inverter in Uganda. It supports up to 3kW PV input and is built for Home backup power, Small business backup, Off-grid solar where battery-backed continuity and stable AC output matter

UGX1,595,000

Allow cash on delivery

11 available

Minimum order qty 1

QTY

Order on WhatsApp

Compare With Similar capacity Hybrid Inverters

Sold by Auto Solutions plus ltd

Message Seller

Brand Sukam

Products from this brand

Product Information

Technical specifications

Brand	SMA	Model	230VAC ± 5%
Rated Power	3000VA/3000W	Max PV Input Power	3000 W
Max Charging Current	60A	Max PV Open Circuit Voltage	450VDC
Nominal Voltage	170-280 V	Number of MPPT Trackers	80A
Surge Power	6000VA	Product Dimensions	473mm391mm194mm
Product Weight	6.0kg	Waveform	Pure Sine Wave
Efficiency	98%	Operating Temperature	0°C to 55°C
AC Output Rated Current	80A	Current Rating	80
Display	LCD	Float Charge Voltage	27VDC
Humidity	5% to 95% Rela ve Humidity ( Non-Condensing )	Input Voltage Range	170-280VAC (UPS), 90-280VAC (Appliances)
Max PV Input Current	80A	Max. AC Input/Output Apparent Power (VA)	3000VA/3000W
Maximum Charge Power	3000W	Over Discharging Voltage	22.0VDC
Overcharge Protection	32VDC	Parallel Capability	W/O
Power Factor	1.0	Rated AC Input/Output Active Power (W)	3000VA/3000W
SKU	SM-HYB-SUK-01338	Start Voltage	230VAC
Transfer Time	10ms (UPS), 20ms (Appliances)	Zero load power (W)	<35W

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

Sukam FX3200-24S is a 3kW hybrid inverter for Uganda power conditions. It supports up to 3kW PV input and is suitable for Home backup power, Small business backup, Off-grid solar where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

RATED POWER: 3kVA/3000W continuous output with 6kVA surge capacity for starting motors and compressors.
MPPT SOLAR CHARGER: 80A maximum charge current from a PV array up to 3000W, with MPPT voltage range of 50-430VDC and open circuit voltage limit of 450VDC.
PURE SINE WAVE OUTPUT: 230VAC ±5% regulated output ensures clean power for sensitive electronics, appliances, and tools.
DUAL INPUT VOLTAGE RANGES: Selectable 170-280VAC (UPS mode, 10ms transfer) or 90-280VAC (appliance mode, 20ms transfer) for grid flexibility.
BATTERY MANAGEMENT: 24VDC system with low battery alarm at 22.0VDC, cut-off protection at 21VDC, and floating charge at 27VDC. Overcharge protection at 32VDC.
COMMUNICATION: RS485 port for BMS communication with lithium batteries, plus LCD display for real-time monitoring of PV, battery, and load status.

What's Included

Sukam FX3200-24S Hybrid Inverter unit
User manual
RS485 communication cable
Mounting brackets (if applicable)

Applications

Home backup power for lighting, fans, TVs, and refrigerators
Small business backup for computers, printers, and point-of-sale systems
Off-grid solar systems with 24V battery banks
Remote cabins and rural clinics requiring reliable AC power

Product FAQs

Sukam FX3200-24S is a 3kW hybrid inverter in Uganda. Key specs include max PV input voltage 450VDC, max PV input power 3kW, rated AC output 3kW, communication RS485.

Browse live offers

For Sukam FX3200-24S, use MPPT/operating voltage range 450VDC, max PV input voltage 450VDC, and max PV input power 3kW when designing strings.

Browse live offers Find technicians

Sukam FX3200-24S allows up to 3kW PV input power. Use max PV input voltage 450VDC for string sizing checks.

Browse live offers

Sukam FX3200-24S is built for the listed battery voltage battery systems. The battery voltage range is the listed battery voltage, with maximum charging current the listed charging current.

Browse live offers

Sukam FX3200-24S has a rated AC output of 3kW. It operates with grid frequency 50Hz/60Hz (Auto Sensing) and AC voltage range 170-280VAC (UPS), 90-280VAC (Appliances). If needed, use 170-280VAC (UPS), 90-280VAC (Appliances) for compatibility checks.

Browse live offers Request quotes Find technicians

Compare verified seller pricing, warranty terms, authenticity, and installer support for Sukam FX3200-24S. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
