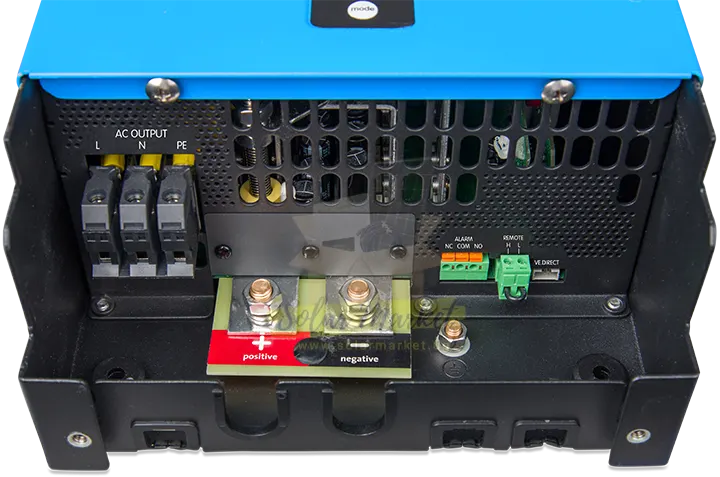

Victron 12/1600 Solar Inverter PSW 1.6kVA 17V for Residential solar, Small commercial solar, Telecom and ICT
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
victron

Victron 12/1600 Solar Inverter PSW 1.6kVA 17V for Residential solar, Small commercial solar, Telecom and ICT

UGX2,492,000
☆☆☆☆☆ No reviews yet ·Questions (0)
Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · In stock
UGX2,492,000
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · manufacturing defects
The warranty is this product's own (1 year). 7-day return window for manufacturing defects. Contact Masrcorp Solar support with your order reference to arrange an exchange or repair. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Victron Model 12/1600
Rated Power 1600 W Nominal Output Frequency 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1%
Nominal Voltage 9.2 - 17 V Surge Power 2200W
Product Dimensions 117 x 232 x 395 mm Product Weight 8.9 KG
Efficiency 92% Operating Temperature -40 to +65°C (fan assisted cooling) Derate 1.25% per °C above 40°C
Battery charged detect (adjustable) 14.0V Battery Type connection,Screw terminals
Battery-connection Screw terminals Continuous power at 25°C / 40°C 1600VA
DC low restart and alarm (adjustable) 10.9V DC low shut down (adjustable) 9.3V
EMC EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 Humidity condensing),max 95%
Humidity (non-condensing) max 95% Ingress Protection IP 21
Input AC Voltage Range 9.2 - 17V Integrated Transfer switch Filax
Material & Colour,Steel chassis and plastic cover (blue Ral 5012) Material & Colour Steel chassis and plastic cover (blue Ral 5012)
Maximum cable cross-section 50mm² / AWG1 Protection IP 21
Remote On/Off Yes Safety EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458
SKU SM-SOL-VIC-00276 Zero load power (W) 12W
Zero load power in AES mode (W) 1.8W

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

The Victron 12/1600 Solar Inverter PSW delivers a continuous 1.6kVA output at 25°C, making it suitable for residential and small commercial solar installations in Uganda. Operating on a low voltage (LV) 12V DC input, this single phase inverter provides stable 230VAC or 120VAC output with pure sine wave technology, ensuring compatibility with sensitive electronics and appliances. The inverter supports remote on-off control, features an automatic transfer switch (Filax), and offers configurable ECO mode for reduced standby consumption. Its robust steel chassis and IP21 protection rating make it suitable for indoor environments, while the wide operating temperature range accommodates Uganda’s climate. Multiple AC outlet standards and advanced safety certifications ensure flexible and secure integration into solar power systems.

About this item

  • PURE SINE WAVE OUTPUT: Delivers stable 230VAC or 120VAC for sensitive electronics and appliances.
  • LOW VOLTAGE (LV) SINGLE PHASE: Operates on 12V DC input, suitable for typical off-grid and backup systems.
  • REMOTE ON-OFF CAPABILITY: Allows integration with external control systems for flexible operation.
  • ECO MODE: Adjustable settings minimize zero-load power consumption for improved efficiency.
  • AUTOMATIC TRANSFER SWITCH: Built-in Filax switch enables seamless transition between power sources.
  • ROBUST DESIGN: Steel chassis, IP21 protection, and wide temperature tolerance for reliable indoor use.

Applications

  • Residential solar backup systems
  • Small commercial solar installations
  • Telecom and ICT equipment power
  • Rural health clinics
  • Mobile and off-grid power solutions
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What is the voltage class and phase of the Victron 12/1600 inverter?
The Victron 12/1600 is a low voltage (LV) inverter designed for single phase AC output.
Can the inverter be used with both 230V and 120V appliances?
Yes, the output voltage is selectable between 230VAC and 120VAC, making it suitable for various appliance standards.
Is the Victron 12/1600 suitable for off-grid solar systems in Uganda?
Yes, it is designed for off-grid and backup solar applications, compatible with 12V battery banks commonly used in Uganda.
Does the inverter support remote monitoring or control?
Yes, it features a remote on-off function for integration with external control or monitoring systems.
What type of protection features are included?
The inverter includes multiple protection features such as overload, short circuit, and configurable low voltage shutdown.
What is the maximum continuous power output?
The inverter provides up to 1.6kVA (1600VA) continuous output at 25°C.
Which AC outlet types are supported?
It supports Schuko, IEC-320, UK, AU/NZ, Nema 5-15R, and GFCI outlet standards.
