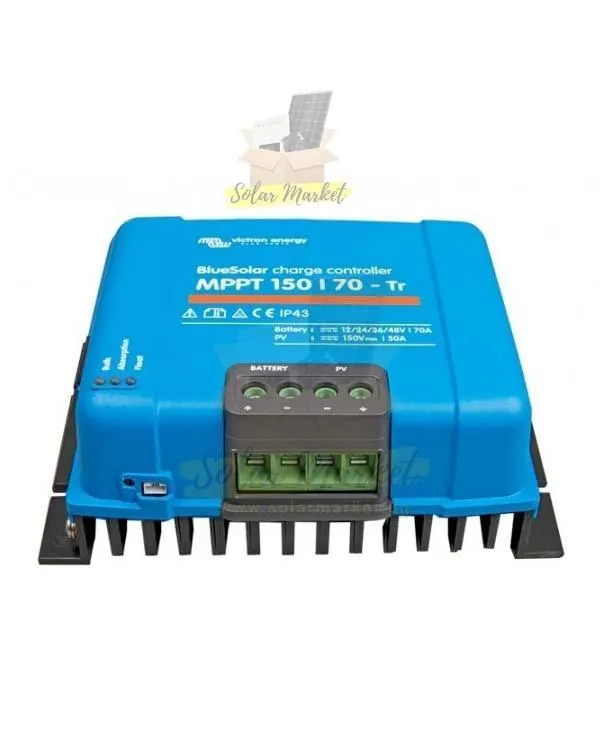

Victron 150/70 VE.Can MPPT Charge Controller 48V HV for Off-grid solar power, Hybrid solar, Telecom and remote

Name: Victron 150/70 VE.Can MPPT Charge Controller 48V HV for Off-grid solar power, Hybrid solar, Telecom and remote
Brand: victron
SKU: SM-MPP-VIC-00249
Price: 1558000.00 UGX
Availability: InStock

victron

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: HV configuration. The Victron 150/70 VE.Can MPPT Charge Controller supports low voltage (LV) battery systems from 12V to 48V and is suitable for both single and multi-phase solar installations in Uganda. Its advanced data communication and parallel operation features make it ideal for scalable off-grid and hybrid solar setups.

UGX1,558,000

7 Days

Variation

10 available

Minimum order qty 1

QTY

Order on WhatsApp

Selected Product Summery

Victron 150/70 VE.Can MPPT Charge Controller 48V HV for Off-grid solar power, Hybrid solar, Telecom and remote -

Compare With Similar capacity MPPT Charge Controllers

Estimate Shipping Time 7 Days

Sold by Masrcorp Solar Uganda

Message Seller

Brand victron

Products from this brand

Product Information

Technical specifications

Brand	Victron	Model	185 x 250 x 95 mm; 216 x 295 x 103 mm
Max Charging Current	70 A	Max PV Open Circuit Voltage	150 V
Nominal Voltage	48 V	Product Dimensions	185 x 250 x 95 mm; 216 x 295 x 103 mm
Product Weight	3 KG	Communication	VE.Can, VE.Direct and Bluetooth
Efficiency	98 %	Operating Temperature	-30 to +60 °C (full rated output up to 40 °C)
Battery terminals	35mm² / AWG2	Charge voltage 'equalization'	Default setting: 16,2 V / 32,4 V / 48,6 V / 64,8 V (adjustable)
Charging Algorithm	multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm	Current Rating	70
Humidity	95 %, non-condensing	Ingress Protection	PD3
Max PV Short Circuit Current (per tracker)	50 A (max 30 A per MC4 conn.)	Max. PV short circuit current	50 A (max 30 A per MC4 conn.)
Maximum output current	30 A (the MC4 connectors are parallel connected to one MPPT tracker)	Nominal PV power, 12 V	1000 W
Permissible Altitude	5000m (full rated output up to 2000m)	Programmable Relay	DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Protection	IP43 (electronic components), IP22 (connection area)	PV terminals	35 mm² / AWG2 (Tr models); Two pairs of MC4 connectors (MC4 models)
Remote On/Off	Yes (2 pole connector)	Safety	EN/IEC 62109-1, UL 1741, CSA C22.2
Self Discharge	consumption,Less than 35 mA @ 12 V / 20 mA @ 48 V	Self-consumption	Less than 35 mA @ 12 V / 20 mA @ 48 V
SKU	SM-MPP-VIC-00249	Start Voltage	48
Temperature Compensation Range	-16 mV / -32 mV / -64 mV / °C

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

HV configuration. The Victron 150/70 VE.Can MPPT Charge Controller is engineered for reliable solar energy management in Uganda’s diverse environments. Designed for low voltage (LV) battery banks (12/24/36/48V), it accommodates both single phase and multi-phase system architectures. The controller features adaptive multi-stage charging, robust protection mechanisms, and advanced data logging for up to 46 days. Integrated VE.Can, VE.Direct, and Bluetooth connectivity enable flexible system monitoring and remote management. Parallel operation capability allows for system expansion, supporting up to 25 units via VE.Can. The unit is built to operate efficiently in harsh indoor, unconditioned spaces, with a wide operating temperature range and high humidity tolerance. Safety and compliance are ensured with EN/IEC 62109-1, UL 1741, and CSA C22.2 certifications.

About this item

SYSTEM TOPOLOGY: HV architecture for compliant solar system design.
MULTI-VOLTAGE SUPPORT: Compatible with 12V, 24V, 36V (manual), and 48V battery banks for flexible system design.
HIGH CHARGE CURRENT: Delivers up to 70A rated charge current for large-scale solar arrays.
ADVANCED DATA COMMUNICATION: Features VE.Can, VE.Direct, and Bluetooth for monitoring and integration.
PARALLEL OPERATION: Supports synchronised parallel operation for scalable installations (up to 25 units via VE.Can).
ROBUST PROTECTION: Includes PV reverse polarity, output short circuit, and over temperature safeguards.
