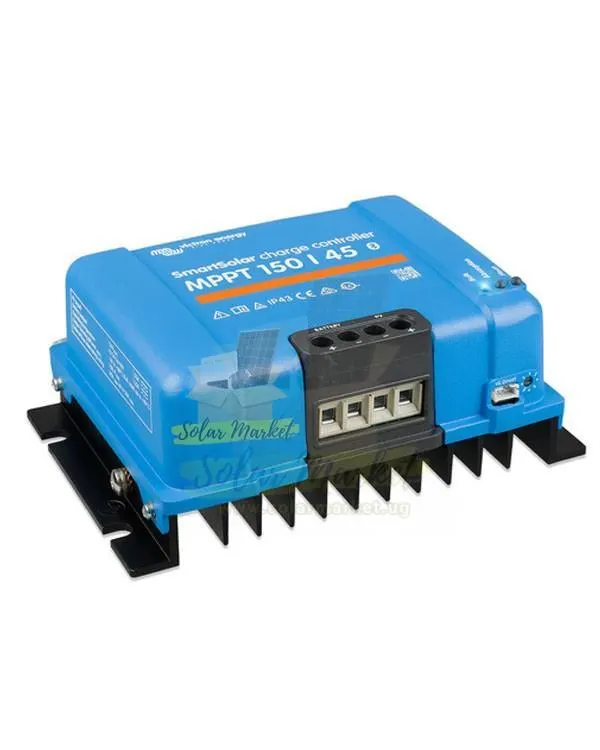

Victron MPPT 150/45 MPPT Charge Controller 48V HV for Residential solar, Commercial solar, Institutional and

Name: Victron MPPT 150/45 MPPT Charge Controller 48V HV for Residential solar, Commercial solar, Institutional and
Brand: victron
SKU: SM-PWM-VIC-00246
Price: 812000.00 UGX
Availability: InStock

victron

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: HV configuration. The Victron MPPT 150/45 is a low voltage (LV) MPPT charge controller supporting 12V, 24V, 36V, and 48V battery systems for both single and three phase solar installations. Designed for Uganda’s solar market, it offers adaptive multi-stage charging and robust protection features for reliable off-grid and grid-tied applications.

UGX812,000

7 Days

Variation

10 available

Minimum order qty 1

QTY

Order on WhatsApp

Selected Product Summery

Victron MPPT 150/45 MPPT Charge Controller 48V HV for Residential solar, Commercial solar, Institutional and -

Compare With Similar capacity MPPT Charge Controllers

Estimate Shipping Time 7 Days

Sold by Masrcorp Solar Uganda

Message Seller

Brand victron

Products from this brand

Product Information

Technical specifications

Brand	Victron	Model	MPPT 150/45
Max Charging Current	45 A	Max PV Open Circuit Voltage	150 V
Nominal Voltage	48 V	Product Dimensions	130 x 186 x 70 mm
Product Weight	1,25 kg	Communication	VE.Direct
Efficiency	98 %	Operating Temperature	-30 to +60°C (full rated output up to 40°C)
Absorption Voltage	Default setting: 14,4 / 28,8 / 43,2 / 57,6 V (adjustable)	Charge voltage 'equalization'	Default setting: 14,4 / 28,8 / 43,2 / 57,6 V (adjustable)
Charging Algorithm	multi-stage adaptive (eight pre-programmed algorithms)	Current Rating	45
Float Charge Voltage	48	Humidity	95 %, non-condensing
Ingress Protection	IP43 (electronic components), IP22 (connection area)	Max PV Array Size Per Tracker	12 V: 650 W / 24 V: 1300 W / 36 V: 1950 W / 48 V: 2600 W
Max PV Short Circuit Current (per tracker)	50 A	Max PV Voltage (DC)	150 V
Max. PV short circuit current	50 A	Nominal PV power, 12 V	12 V: 650 W / 24 V: 1300 W / 36 V: 1950 W / 48 V: 2600 W
Power terminals	16 mm² / AWG6	Protection	IP43 (electronic components), IP22 (connection area)
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2	Self-consumption	12 V: 20 mA / 24 V: 15 mA / 48 V: 10 mA
SKU	SM-PWM-VIC-00246	Temperature Compensation Range	-16 mV / -32 mV / -64 mV / °C

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

HV configuration. The Victron MPPT 150/45 MPPT Charge Controller is engineered for efficient solar energy management in Uganda’s diverse power environments. Supporting low voltage (LV) battery banks at 12V, 24V, 36V (via software), and 48V, it is suitable for both single phase and three phase system designs. The controller delivers up to 45A rated charge current and accommodates a wide range of nominal PV power inputs, making it adaptable for residential, commercial, and institutional solar projects. With a maximum efficiency of 98% and advanced multi-stage adaptive charging algorithms, it ensures optimal battery performance and longevity. Integrated protections against PV reverse polarity, output short circuit, and over-temperature enhance system safety. The unit features VE.Direct communication for monitoring and data logging, and complies with international safety standards, making it a reliable choice for Uganda’s solar professionals and system integrators.

About this item

SYSTEM TOPOLOGY: HV architecture for compliant solar system design.
MULTI-STAGE ADAPTIVE CHARGING: Eight pre-programmed algorithms optimize battery charging for various chemistries.
WIDE BATTERY VOLTAGE RANGE: Supports 12V, 24V, 36V (software selection), and 48V low voltage systems.
HIGH CHARGE CURRENT: Delivers up to 45A rated charge current for medium-scale solar arrays.
ROBUST PROTECTION: Safeguards against PV reverse polarity, output short circuit, and over-temperature conditions.
DATA COMMUNICATION: VE.Direct port enables real-time monitoring and integration with system management tools.
