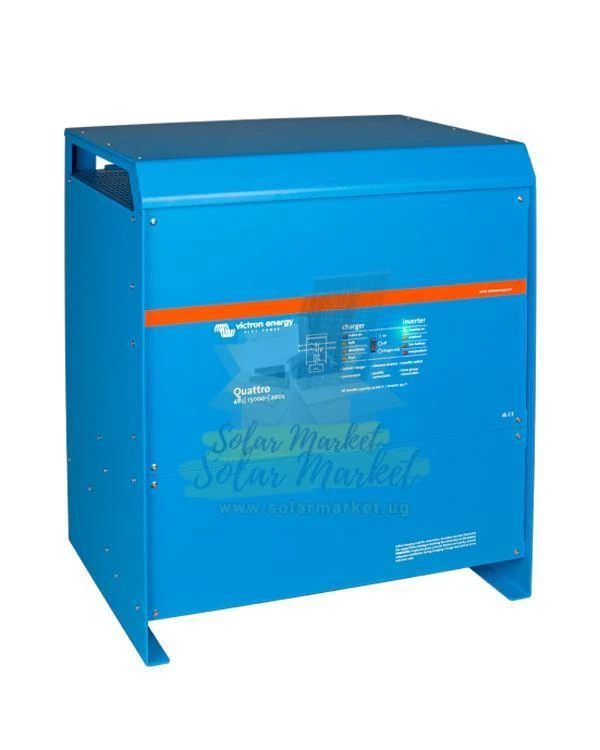

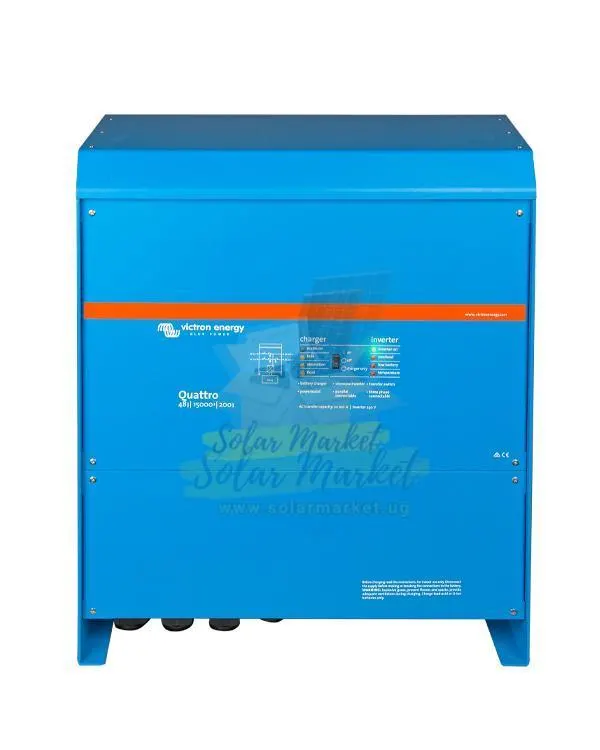

Victron Quattro 48/15000/200-100/100 15kVA 12000W 48V Inverter Charger for Commercial and Large Home Backup, 200A Charger, Single Phase
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
victron · Inverter Chargers

Victron Quattro 48/15000/200-100/100 15kVA 12000W 48V Inverter Charger for Commercial and Large Home Backup, 200A Charger, Single Phase

UGX19,087,068
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX381,741Delivery in 7 days1-yr warranty
Christmas on SolarMarket Power for the holidays A gift that keeps the lights on. Pay through SolarMarket; the shop is paid after delivery. Black Friday → Solar for every Christmas plan –Days–Hours–mins
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · 3 In stock
UGX19,087,068
More choice from other shopsSimilar products near this price, sold by other shops on SolarMarket
See All Inverter Chargers →
Sosen SSE-HH50K-P3EU 50kW High Voltage Three Phase Hybrid Inverter for Commercial and Industrial Backup, 4 MPPT 150-850V, 100kW PV, 135-850V Battery, 2x100A Charge, 380/400V, IP65, Up to 6 in Parallel Sosen SSE-HH50K-P3EU 50kW High Voltage Three… UGX17,810,000 Collective Energy AfricaView → Sosen SSE-HH40K-P3EU 40kW High Voltage Three Phase Hybrid Inverter for Commercial and Industrial Backup, 4 MPPT 150-850V, 80kW PV, 135-850V Battery, 2x100A Charge, 380/400V, IP65, Up to 6 in Parallel Sosen SSE-HH40K-P3EU 40kW High Voltage Three… UGX17,331,600 Masrcorp Solar UgandaView → 110Kw132Kva Solar Hybrid Inverter 110Kw132Kva Solar Hybrid Inverter UGX15,429,655 Entelechy Solar SolutionsView → 100kW Three Phase Solar Hybrid Inverter 100kW Three Phase Solar Hybrid Inverter UGX15,226,640 Entelechy Solar SolutionsView →
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemPick one of each. They go in your cart with this product.
Matched to 48 V
Solar PanelsUGX429,000
BatteryUGX3,334,760
Cables, mounting and protectionUGX64,680
With this product
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Victron Model Quattro 48/15000/200-100/100
Rated Power 15000 VA Max Charging Current 200 A
Nominal Output Voltage 230 Vac Nominal Output Frequency 50 Hz (adjustable to 60 Hz)
Nominal Voltage 38-60 V Surge Power 25000 W
Product Dimensions 572 x 488 x 344 mm Product Weight 72 KG
Communication VE.Bus Efficiency 96 %
Operating Temperature -20 to 60 C Absorption Voltage 57.6 V
Auxiliary output 50 A Battery Type connection,Four M8 bolts (2 plus and 2 minus connections)
Battery-connection Four M8 bolts (2 plus and 2 minus connections) Continuous power at 25°C / 40°C 12000 W
Current Rating 200 A Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Enclosure Material & Colour aluminium (blue RAL 5012) Float Charge Voltage 55.2 V
General purpose analogue/digital in port 2x Humidity condensing),max. 95%
Humidity (non-condensing) max. 95% Ingress Protection IP20
Input AC Voltage Range 187-250 Vac Integrated Transfer switch Yes
Inverter Type Inverter charger Material & Colour aluminium (blue RAL 5012)
Max PV Input Current 350 A Max PV Voltage (DC) 38 – 66 V
Maximum output current 150 A 1 sec Output Cables 50 A
Parallel Operation Yes, parallel and three phase via VE.Bus Permissible Altitude 2000 M
Phase Single phase (three phase with 3 units) Power Factor ±0.8
PowerControl / PowerAssist Yes Programmable Relay 3x
Protection IP20, pollution degree 2, OVC III Remote On/Off Yes
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 Safety Standard EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
SKU SM-INV-VIC-00288 Storage Temperature 52.8°C
Zero load power (W) 110 W Zero load power in AES mode (W) 75 W

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

The Victron 48/15000/200-100/100 Inverter Charger delivers robust 15kVA continuous output at 48V for low voltage (LV) three phase

About this item

  • SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
  • POWERCONTROL & POWERASSIST: Enables dynamic load management and generator support for stable power delivery.
  • DUAL AC INPUTS: Supports two independent AC sources with automatic transfer switching for enhanced reliability.
  • HIGH CHARGING CAPACITY: Delivers up to 200A charge current for rapid battery replenishment in large systems.
  • VE.BUS COMMUNICATION: Allows parallel and three phase operation, remote monitoring, and system integration.
  • ROBUST CONSTRUCTION: Aluminium enclosure with IP20 rating and operation from -20°C to +60°C for durability in Ugandan conditions.

Applications

  • Commercial solar backup systems
  • Large residential solar installations
  • Telecom and data centre power solutions
  • Industrial equipment backup
  • Off-grid and hybrid energy systems
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What voltage class and phase does this inverter charger support?
This model operates at low voltage (LV) and is suitable for three phase systems, making it ideal for both commercial and large residential applications.
Can the Victron 48/15000/200-100/100 be used in parallel or three phase configurations?
Yes, it supports both parallel and three phase operation through the VE.Bus communication port, allowing for flexible system design.
What types of batteries are compatible with this inverter charger?
It is compatible with 48V battery banks, including lithium, AGM, and gel types, as specified in the system design.
Does the unit support remote monitoring and control?
Yes, remote monitoring and system integration are possible via the VE.Bus port and compatible Victron accessories.
What is the maximum continuous output power?
The inverter charger provides up to 15kVA (12kW) continuous output at 25°C, suitable for high-demand applications.
Is the inverter charger suitable for Ugandan grid conditions?
Yes, it is designed to operate within a wide AC input voltage range (187–250 VAC) and frequency (50/60 Hz), accommodating local grid variations.
What safety standards does this product comply with?
It is certified to EN-IEC 60335-1, EN-IEC 60335-2-29, and EN-IEC 62109-1 for safety, and meets international emission and immunity standards.
