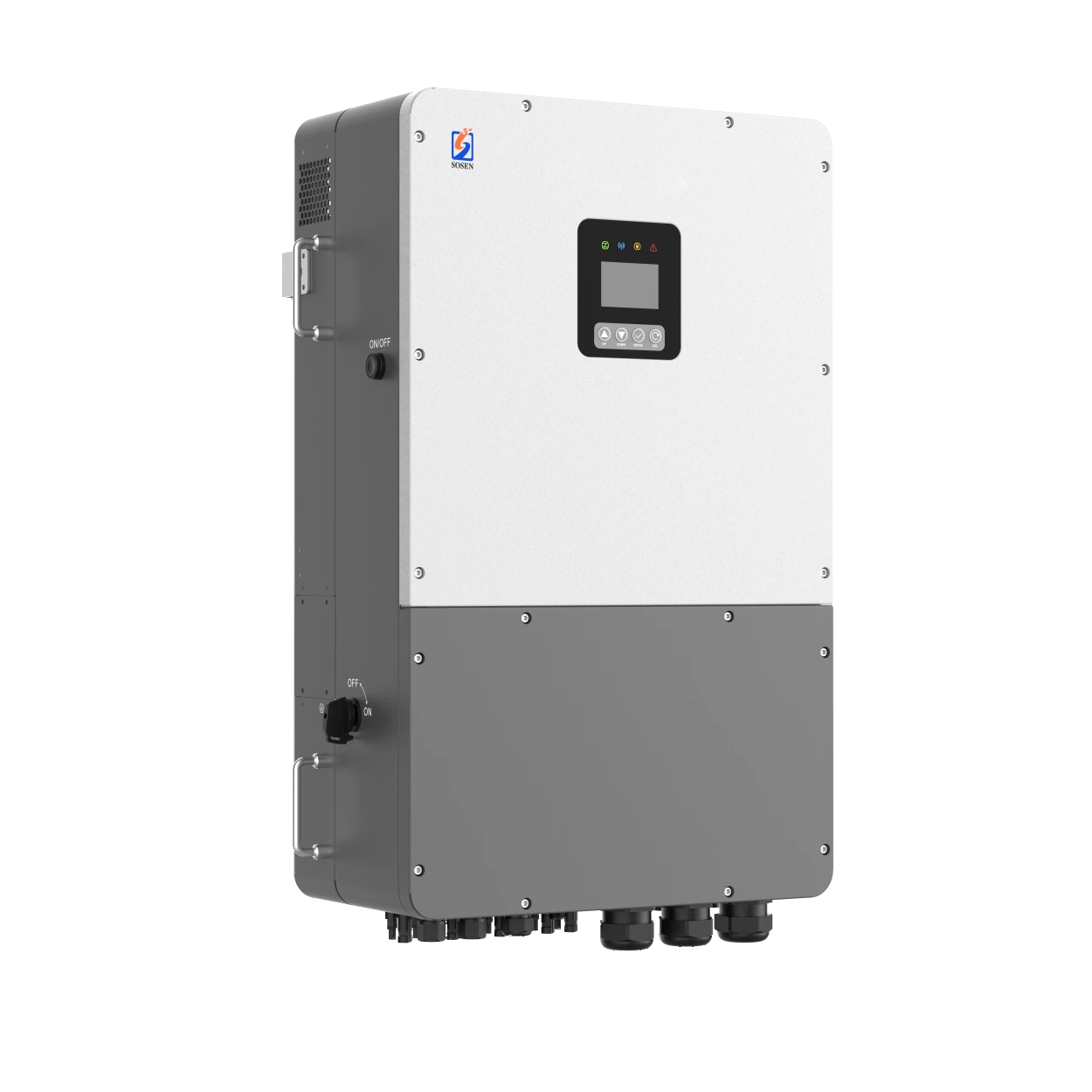

Sosen 40kW Three Phase Hybrid Inverter for Commercial and Industrial Solar Backup 380/400VAC 4 MPPT 150-850VDC Range 8 Units Parallel IP66 (SSE-HH40K-P3EU)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
Sosen · Hybrid Inverters

Sosen 40kW Three Phase Hybrid Inverter for Commercial and Industrial Solar Backup 380/400VAC 4 MPPT 150-850VDC Range 8 Units Parallel IP66 (SSE-HH40K-P3EU)

UGX17,331,600 VAT incl. · from 2 Shops
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX346,632Cash on Delivery5-yr warranty
Updates about this
2 shops sell this⇄ Compare
Collective Energy Africa ✓ Best match
Kampala · 10 In stock · 5-yr warranty
UGX17,331,600
Masrcorp Solar Uganda ✓ Fastest Delivery
Delivery in 7 days · 10 In stock · 1-yr warranty
UGX20,095,920
Best match weighs price, delivery time, stock and how well the shop answers and delivers. Pick any shop; the price, stock, delivery and ways to pay update.
Ways to payAll options
Cash on DeliveryOrder now, pay Collective Energy Africa in cash
Pay NowBank Transfer · Cash on Delivery
Warranty and returns
Warranty
5 years · this product
The warranty is this product's own (5 years). If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to high voltage
Solar Panels
UGX429,000
Battery
UGX34,080,800
Cables, mounting and protection
UGX47,817
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Sosen Rated Power 40 KW
Max PV Input Power 80 KW Max Charging Current 2*100 A
MPPT Voltage Range 150~850 V Nominal Output Voltage 380 / 400V a.c.,3W+N+PE
Nominal Output Frequency 50/60 Hz Nominal Voltage 200
Number of MPPT Trackers 4/2+2+2+2 Product Dimensions 544*880*278 mm
Product Weight 88 KG Efficiency 98.50%
Operating Temperature -25°C ~ +60°C (Linely derating to 60% when exceed +45°C ~ +60°C) AC Output Rated Current 60.8 /57.7
Battery Type Lithium / Lead-acid Chemistry Lithium / Lead-acid
DC Polarity Reverse Connection Protection Yes DC Terminal insulation impedance Monitoring Yes
Display App+ LED/ LCD (-S version) Ground Fault Current Monitoring Yes
Humidity 0%~100% (Non-condensing) Ingress Protection IP66
Max PV Input Current 8*20 A Max PV Voltage (DC) 1000 V
Max. AC Input/Output Apparent Power (VA) 40 Max. continuous load current 121.6 / 60.8
Max. PV short circuit current 2*100 Noise <65
Output Over Current Protection 91.2 / 86.6 Parallel Operation Yes,up to 8pcs
Permissible Altitude 4000 M Power Factor 0.8 leading~0.8 lagging
PV Start-up Voltage 200 V Rated AC Input/Output Active Power (W) 40 KW
SKU SM-HYB-SOS-01221 Storage Temperature -25°C~+60°C

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Sosen SSE-HH40K-P3EU is a 40kW 400V Three Phase hybrid inverter for Uganda power conditions. It supports up to 80kW PV input and is suitable for Commercial, Large-scale solar, Three phase grid-tied where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
  • RATED POWER: 40kW continuous output at 380/400VAC three phase, suitable for commercial and industrial loads.
  • MPPT CAPACITY: Four independent MPPT trackers with a total 80kW PV input capacity and a wide 150-850VDC operating range.
  • BATTERY FLEXIBILITY: Compatible with lithium and lead-acid batteries across a 135-850VDC voltage range, with dual 100A charge and discharge current capability.
  • PARALLEL OPERATION: Supports up to eight units in parallel for system expansion up to 320kW total capacity.
  • ENCLOSURE PROTECTION: IP66 rated for outdoor installation, with operating temperature range of -25°C to +60°C and derating above +45°C.

What's Included

  • Sosen SSE-HH40K-P3EU Hybrid Inverter unit, mounting brackets, communication cables (RS485, WiFi antenna), user manual, and warranty card. Battery cables and PV connectors are not included.

Applications

  • Commercial and industrial solar backup systems
  • Large-scale solar self-consumption installations
  • Three phase grid-tied systems with battery storage
  • Off-grid and backup power for factories, warehouses, and office buildings
  • Solar-powered irrigation and agricultural processing facilities
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Sosen SSE-HH40K-P3EU in Uganda?
Sosen SSE-HH40K-P3EU is a 40kW Three Phase hybrid inverter in Uganda. Key specs include battery voltage range 400V, max PV input power 80kW, rated AC output 40kW, communication RS485/CAN, monitoring WiFi Monitoring.
What PV voltage limits should technicians use for Sosen SSE-HH40K-P3EU?
For Sosen SSE-HH40K-P3EU, use MPPT/operating voltage range the listed range, max PV input voltage the listed max PV voltage, and max PV input power 80kW when designing strings.
How much solar PV can be connected to Sosen SSE-HH40K-P3EU?
Sosen SSE-HH40K-P3EU allows up to 80kW PV input power. Use max PV input power 80kW, nominal battery voltage 400V for string sizing checks.
What battery and charge current settings apply to Sosen SSE-HH40K-P3EU?
Sosen SSE-HH40K-P3EU is built for 400V battery systems. The battery voltage range is 400V, with maximum charging current the listed charging current.
What AC output should buyers and installers expect from Sosen SSE-HH40K-P3EU?
Sosen SSE-HH40K-P3EU has a rated AC output of 40kW on Three Phase output. It operates with grid frequency the listed grid frequency and AC voltage range 135~850. If needed, use the listed input range for compatibility checks.
What should buyers compare before ordering Sosen SSE-HH40K-P3EU in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Sosen SSE-HH40K-P3EU. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
