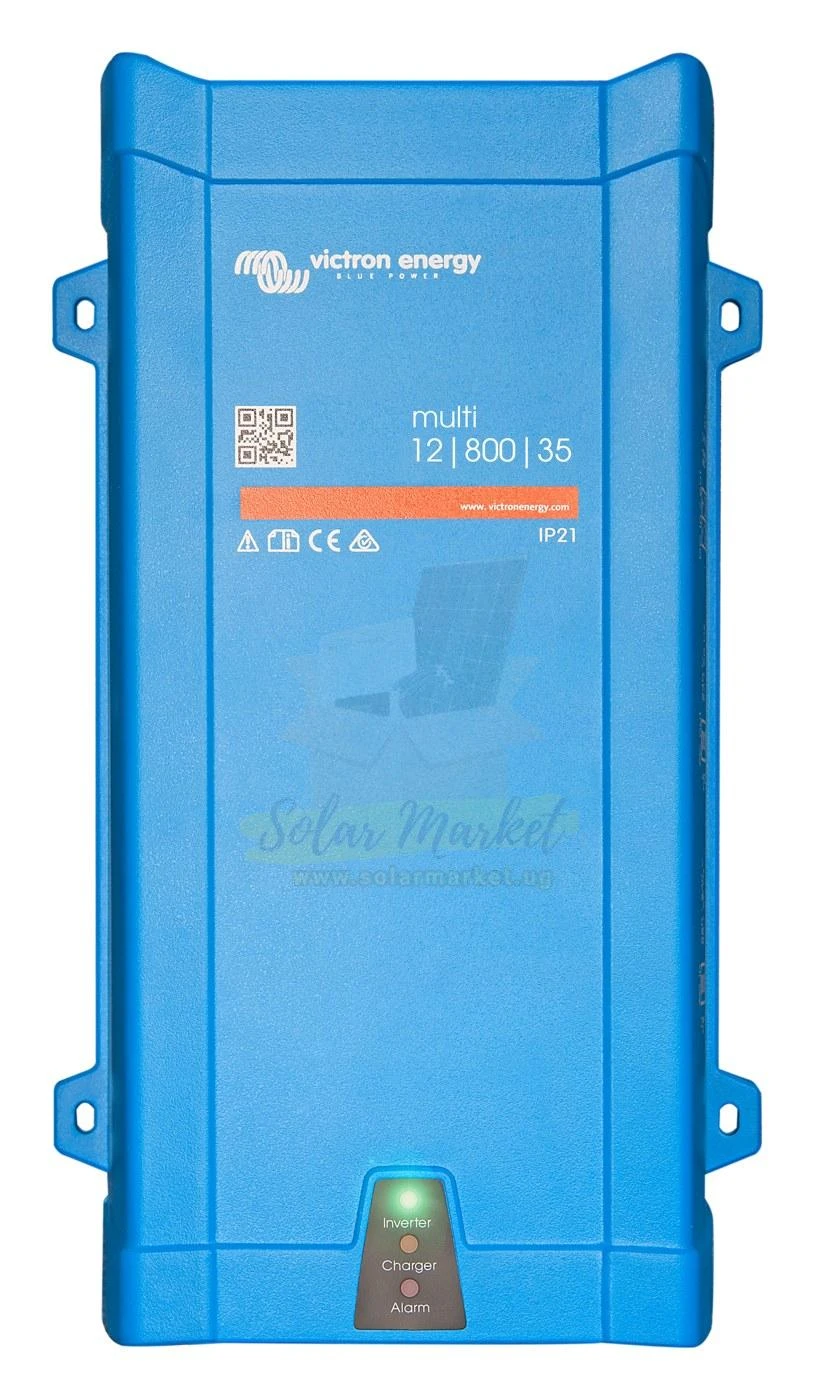

Victron Multiplus 12/800/35 Inverter Charger 12V Single Phase for Residential solar, Small commercial solar, Mobile power
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
victron · Inverter Chargers

Victron Multiplus 12/800/35 Inverter Charger 12V Single Phase for Residential solar, Small commercial solar, Mobile power

UGX2,138,400
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX60,0002-yr warranty
Sold by
Masrcorp Solar Uganda ✓
3 In stock
UGX2,138,400
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
Cworth 4kW Hybrid Inverter for Home and Small Business Backup 24V DC Input 230VAC Output 120A MPPT Parallel up to 12 Units (CE-H4K) Cworth 4kW Hybrid Inverter for Home and Small Business Backup 24V DC I... UGX2,102,760 Cworth Energy Sukam 6.2kVA/5500W Hybrid Inverter for Home and Small Business Backup 48VDC 230VAC Output 120A MPPT LCD & App Monitoring (FX6200-48H) Sukam 6.2kVA/5500W Hybrid Inverter for Home and Small Business Backup... UGX2,030,400 Auto Solutions plus ltd Entelechy 1500W Solar Hybrid Inverter for Home and Small Business Backup 230VAC Output 12VDC Battery 500VDC PV Input 100A Solar Charging RS232 Communication 0-55C Operating Temperature (BST-HPL-1500W) Entelechy 1500W Solar Hybrid Inverter for Home and Small Business Back... UGX1,417,500 Masrcorp Solar Uganda SRNE 5kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC Output Single MPPT 60-450VDC 100A Hybrid Charge 2-Year Warranty (AFP4850S100-H) SRNE 5kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC... UGX2,791,404 BLISON ENERGY
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
2 years
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty follows the shop's signed policy for this kind of product. Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 12 V
Solar Panels
UGX429,000
Battery
UGX1,019,520
Cables, mounting and protection
UGX3,678,200
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Victron Model Multiplus 12/800/35
Rated Power 800 VA Max Charging Current 35 A
MPPT Voltage Range -40 to +65 °C (fan assisted cooling) Nominal Output Voltage 230 VAC ± 2 %
Nominal Voltage 187 -250 V Surge Power 1600 W
Product Weight 10 KG Communication For parallel and three phase operation, remote monitoring and system integration
Efficiency 92 / 94% Auxiliary output n. a.
Battery Type connection,battery cables of 1.5 meter Battery-connection battery cables of 1.5 meter
Charge voltage 'equalization' 14,4 Continuous power at 25°C / 40°C 700 W
Current Rating 35 A Humidity condensing),max 95 %
Humidity (non-condensing) max 95 % Input AC Voltage Range 9,5 – 17 V
Integrated Transfer switch 16 A Material & Colour aluminium (blue RAL 5012)
Max AC Input Voltage Input voltage range: 187 -250 V Input frequency: 50/60 Hz Cos Φ >0.8 Max PV Input Current 250 A
Permissible Altitude 2000 m. PowerControl / PowerAssist Yes
Programmable Relay Yes Protection a - g
Remote On/Off Yes Safety EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
SKU SM-INV-VIC-01354 Start Voltage 12
Storage Temperature 13,2°C Zero load power (W) W),8 / 10
Zero load power in AES mode (W) W),5 / 8

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Single Phase configuration. The Victron Multiplus 12/800/35 Inverter Charger delivers dependable 12V low voltage (LV) single phase power conversion and battery charging for residential, commercial, and mobile solar systems in Uganda. With a continuous output of 800VA (700W) at 25°C, this unit supports both grid and generator input, making it suitable for areas with variable power supply. PowerAssist and PowerControl technologies help manage limited generator or grid capacity, while the integrated transfer switch ensures seamless switching between power sources. The device is equipped with a VE.Bus communication port for advanced system integration, remote monitoring, and parallel or three-phase operation if required. Built with robust aluminium housing and rated for operation in challenging environments, the Victron Multiplus 12/800/35 is engineered for long-term reliability and safety compliance.

About this item

  • SYSTEM TOPOLOGY: Single Phase architecture for compliant solar system design.
  • POWERASSIST & POWERCONTROL: Supports dynamic power management to prevent overload and optimize generator or grid input.
  • PURE SINE WAVE OUTPUT: Delivers stable 230V AC output for sensitive electronics and appliances.
  • INTEGRATED TRANSFER SWITCH: 16A automatic switching between AC sources for uninterrupted power supply.
  • ADVANCED BATTERY CHARGING: 35A multi-stage charging for 12V batteries, with temperature sensor for battery protection.
  • VE.BUS COMMUNICATION: Enables system integration, remote monitoring, and parallel/three-phase operation.

Applications

  • Residential solar backup systems
  • Small commercial solar installations
  • Mobile power (vehicles, caravans, boats)
  • Telecom and remote site power
  • Hybrid grid/off-grid solar setups
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What voltage class and phase does the Victron Multiplus 12/800/35 support?
This model operates as a low voltage (LV) inverter charger for 12V battery systems and provides single phase 230V AC output.
Can this inverter charger be used with both grid and generator input?
Yes, it supports AC input from both grid and generator sources within the specified voltage and frequency ranges.
Is the Victron Multiplus 12/800/35 suitable for off-grid solar systems in Uganda?
Yes, it is designed for reliable operation in both grid-tied and off-grid solar applications, including areas with unstable power supply.
Does the unit support remote monitoring and system integration?
Yes, the VE.Bus port allows for remote monitoring, system integration, and advanced configurations.
What type of batteries can be used with this inverter charger?
It is compatible with 12V battery banks, supporting various battery chemistries as specified in the technical datasheet.
What is the continuous output power rating?
The unit provides 800VA (700W) continuous output at 25°C, with derating at higher temperatures.
Is the inverter charger protected against environmental factors?
Yes, it features an IP20 rating, aluminium housing, and operates in a wide temperature range suitable for Ugandan conditions.
