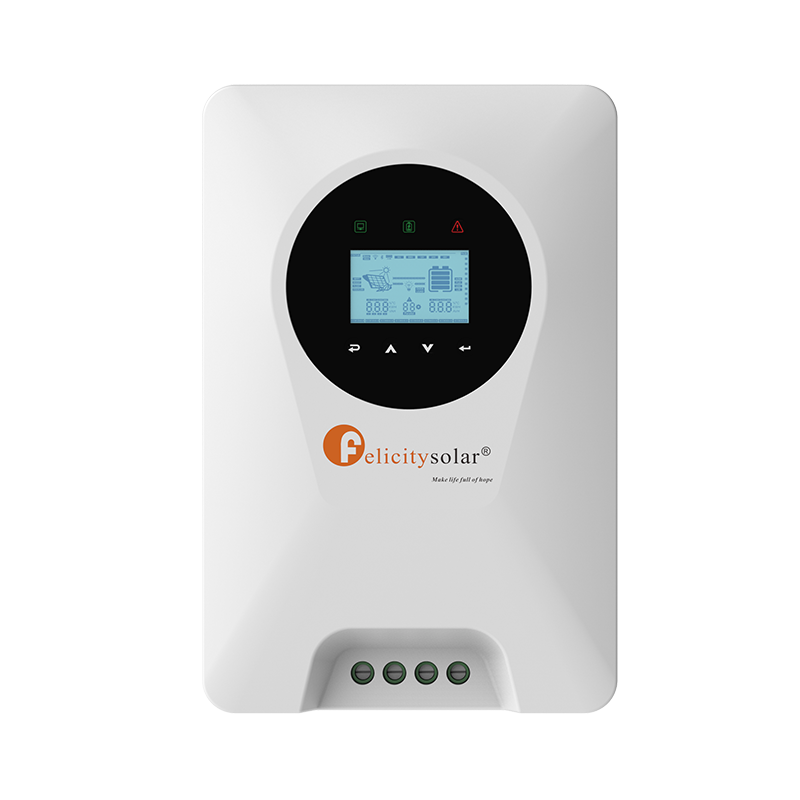

Felicity 100A MPPT Solar Charge Controller for VS Felicity 100V 420W MPPT Solar Charge Controller
VS
A/B
Specifications Comparison
Spec keys are preserved from both products. We never remove a key just because the other product has no value yet.
| Feature | Felicity 100A MPPT Solar Charge Controller for | Felicity 100V 420W MPPT Solar Charge Controller |
|---|---|---|
| Overview | ||
| Model | SCCM10048-III | SCCM3024-III |
| Battery Type | Lithium | - |
| Brand | Felicity | Felicity |
| Battery | ||
| Float Charge Voltage | 12 V | - |
| Chemistry | Lithium compatible | - |
| Solar Input | ||
| Short Circuit Current (Isc) | - | 30 A |
| Max PV Voltage (DC) | 200 V | 100 V |
| MPPT Voltage Range | 18-145 VDC/35-145 VDC 65-145 VDC V | 18-80 VDC/35-80 VDC V |
| Max PV Input Power | 12V-1375 W, 24V-2750 W, 48V-5500 W | 12V-420 W, 24V-830 W |
| PV Start-up Voltage | - | 20 V |
| Electrical | ||
| Rated Power | 5500 W | 830 W |
| Physical | ||
| Humidity (max) | 0%-90%RH (No Condensing) % | - |
| Start Voltage | 12V/24V/48V | - |
| Temperature Compensation Range | - | 0°C to +50°C |
| Temperature Coefficient of Voc | -5mV/°C/cell (25°Cref.) | - |
| Max AC Input Voltage | 165V Vac | - |
| Product Dimensions | 329×219×118.5 mm | 200.2x137.2x65 MM |
| Nominal Voltage | 200 V | 100 V |
| Product Weight | 5.2 kg | 1 kg |
| Charging Algorithm | 3-Step | 3-Step |
| Input AC Voltage Range | 18-145V Vac | 18-80 V |
| Ingress Protection | - | IP20 (Indoor & Vented) |
| Operating Temperature | 0°C to +50 °C | 0°C to +55° C |
| Peak Current (15s) | 100 | - |
| Enclosure Material & Colour | IP20 (Indoor & Vented) | IP20 (Indoor & Vented) |
| Humidity | - | 0%-90%RH (No Condensing) |
| Current Rating | 100 A | 30 A |
| Storage Temperature | -25°C to +75 °C | - |
| Max Charging Current | 100Amps A | - |
| Maximum input voltage | - | 95V |
| Compatibility | ||
| Brand Compatibility | Official: , | Official: , |
Overview
Model
SCCM10048-III
SCCM3024-III
Battery Type
Lithium
-
Brand
Felicity
Felicity
Battery
Float Charge Voltage
12 V
-
Chemistry
Lithium compatible
-
Solar Input
Short Circuit Current (Isc)
-
30 A
Max PV Voltage (DC)
200 V
100 V
MPPT Voltage Range
18-145 VDC/35-145 VDC 65-145 VDC V
18-80 VDC/35-80 VDC V
Max PV Input Power
12V-1375 W, 24V-2750 W, 48V-5500 W
12V-420 W, 24V-830 W
PV Start-up Voltage
-
20 V
Electrical
Rated Power
5500 W
830 W
Physical
Humidity (max)
0%-90%RH (No Condensing) %
-
Start Voltage
12V/24V/48V
-
Temperature Compensation Range
-
0°C to +50°C
Temperature Coefficient of Voc
-5mV/°C/cell (25°Cref.)
-
Max AC Input Voltage
165V Vac
-
Product Dimensions
329×219×118.5 mm
200.2x137.2x65 MM
Nominal Voltage
200 V
100 V
Product Weight
5.2 kg
1 kg
Charging Algorithm
3-Step
3-Step
Input AC Voltage Range
18-145V Vac
18-80 V
Ingress Protection
-
IP20 (Indoor & Vented)
Operating Temperature
0°C to +50 °C
0°C to +55° C
Peak Current (15s)
100
-
Enclosure Material & Colour
IP20 (Indoor & Vented)
IP20 (Indoor & Vented)
Humidity
-
0%-90%RH (No Condensing)
Current Rating
100 A
30 A
Storage Temperature
-25°C to +75 °C
-
Max Charging Current
100Amps A
-
Maximum input voltage
-
95V
Compatibility
Brand Compatibility
Official: ,
Official: ,
Frequently Asked Questions
Key differences from the current specs are: Model (SCCM10048-III vs SCCM3024-III); Rated Power (5500 W vs 830 W); Nominal Voltage (12 V vs 20 V).
Felicity SCCM10048-III 100A MPPT Solar Charge Controller, 12V/24V/48V Auto, 165V PV, 3-Stage Charging, IP20 Indoor, for Residential/Commercial/Off-Grid Solar currently leads on more weighted core specs (77/100 vs 23/100). For home backup, also confirm battery voltage match and your expected daily load before purchase.
Current price snapshot on SolarMarket Uganda is Felicity SCCM10048-III 100A MPPT Solar Charge Controller, 12V/24V/48V Auto, 165V PV, 3-Stage Charging, IP20 Indoor, for Residential/Commercial/Off-Grid Solar: UGX 726,000, Felicity SCCM3024-III 30A MPPT Solar Charge Controller, 12V/24V Auto, 95V PV, Temp Compensation, 3-S
Yes. You can request quotations from verified sellers using the RFQ flow: https://www.solarmarket.ug/rfq/create
