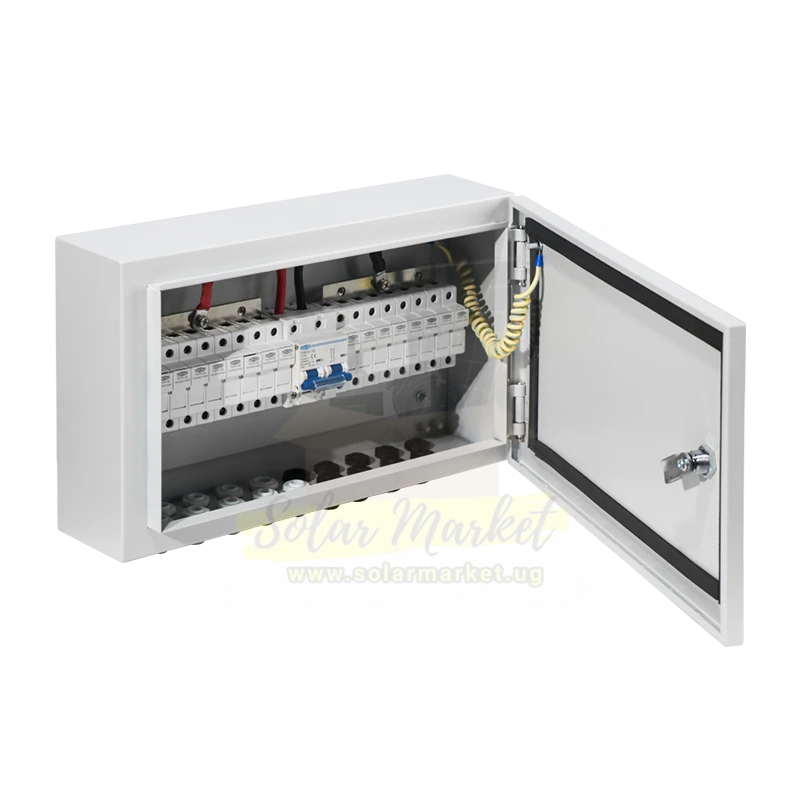

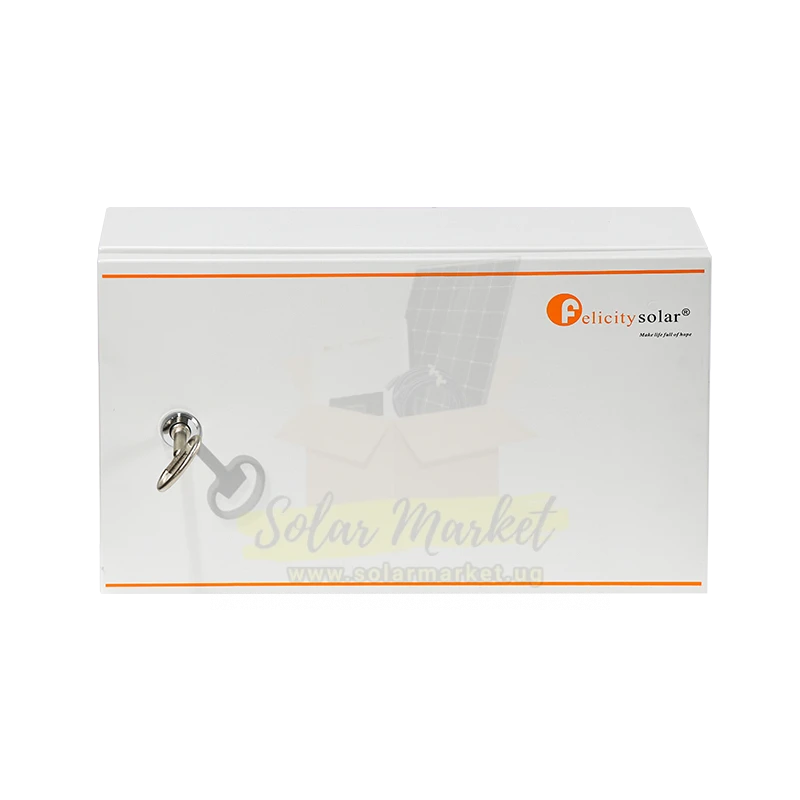

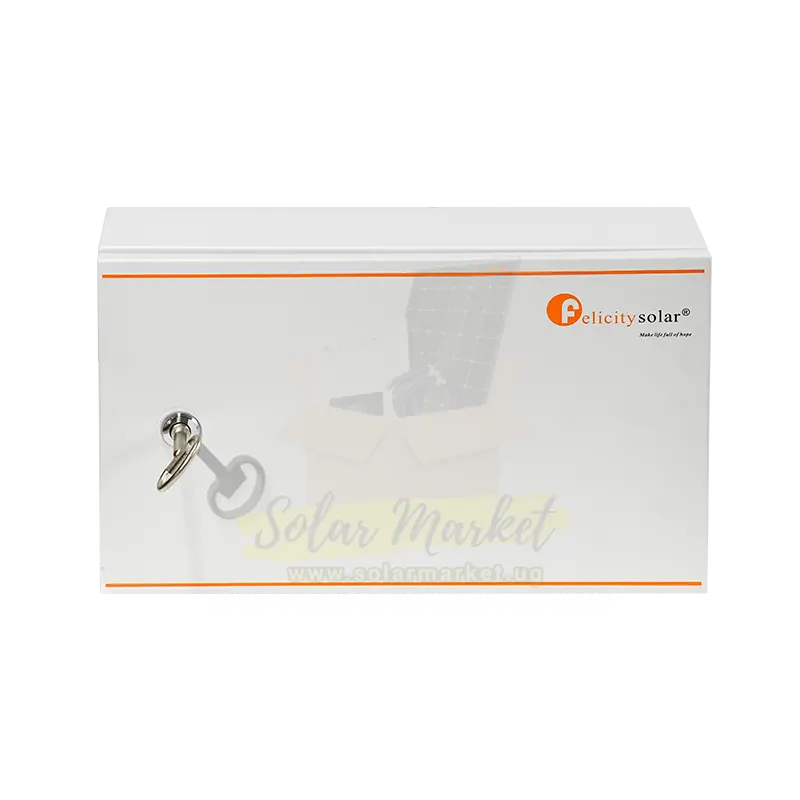

Felicity PVCB0601 6-String PV Combiner Box with Surge Protection for Solar Arrays, 500V, 15A per String, 63A Output, IP54
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
Felicity · Combiner Boxes

Felicity PVCB0601 6-String PV Combiner Box with Surge Protection for Solar Arrays, 500V, 15A per String, 63A Output, IP54

UGX475,200
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX14,256Delivery in 7 days1-yr warranty
Christmas on SolarMarket Power for the holidays A gift that keeps the lights on. Pay safely through SolarMarket. Black Friday → Solar for every Christmas plan –Days–Hours–mins
Sold by
Masrcorp Solar Uganda ✓
Uganda · Delivery in 7 days · 10 In stock
UGX475,200
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
More from FelicityOther Felicity products on SolarMarket
See All Felicity →
Felicity PVCB0801 8-String PV Combiner Box with Surge Protection for Solar Arrays, 500V, 15A per String, 63A Output, IP54 Felicity PVCB0801 8-String PV Combiner Box UGX554,040 Masrcorp Solar UgandaView → Felicity BTCB0606-200 Battery Combiner Box for Solar Battery Banks, 6 Battery Inputs, 200A per Branch, IP21 Felicity BTCB0606-200 Battery Combiner Box UGX475,200 Masrcorp Solar UgandaView → Portable Solar Kit With Lights And Power Bank Sdcm 0310 Portable Solar Kit UGX471,240 Masrcorp Solar UgandaView → Felicity SCCM6048-III 60A 12/24/48V MPPT Solar Charge Controller for Off-Grid Solar Systems, 145V PV, 3300W at 48V Felicity SCCM6048-III 60A 12/24/48V MPPT Solar… UGX563,760 Masrcorp Solar UgandaView → Felicity G12V100AH 100Ah 12V Gel Deep Cycle Solar Battery for Home Backup and Off-Grid Storage, 31.5kg Felicity G12V100AH 100Ah 12V Gel Deep Cycle Solar… UGX583,200 Masrcorp Solar UgandaView → 160Wp Poly Crystalline Solar Panel 160Wp Poly Crystalline Solar Panel UGX386,232 Masrcorp Solar UgandaView → Felicity IVPS1512 1.5kVA 1200W 12V Low Frequency Inverter Charger for Home and Small Business Backup, 18A AC Charger, Pure Sine Wave Felicity IVPS1512 1.5kVA 1200W 12V Low Frequency… UGX661,122 Masrcorp Solar UgandaView → 100Wp Poly Crystalline Solar Panel 100Wp Poly Crystalline Solar Panel UGX317,625 Masrcorp Solar UgandaView →
More choice from other shopsSimilar products near this price, sold by other shops on SolarMarket
See All Combiner Boxes →
Tripp Lite AVRX750U 750VA Line-Interactive UPS with AVR for Computers and Network Equipment, 230V, C13 Outlets Tripp Lite AVRX750U 750VA Line-Interactive UPS UGX891,000 Baseline Africa UgandaView →
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · manufacturing defects
The warranty is this product's own (1 year). 7-day return window for manufacturing defects. Contact Masrcorp Solar support with your order reference to arrange an exchange or repair. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Felicity Model PVCB0601
Nominal Voltage 500 V Product Dimensions 430 x 260 x 118 mm
Product Weight 5.8 KG Operating Temperature -10°C~40°C
Warranty 1 years Application PV array combiner, 6 string inputs
Current Rating 63 A output, 15 A per input Ingress Protection IP54
Input cable diameter 4-8mm Lightning protection device Surge switch
Maximum allowable input 63A Maximum input voltage 500V
Maximum number of input paths 15A Protection Device Type PV combiner box with surge protection
Shell material Metal chassis SKU SM-CIR-FEL-00569

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Felicity PVCB0601 is a pv combiner box for Uganda operating conditions. It is suitable for Grid-tied solar PV, Off-grid solar arrays, Commercial solar, Residential solar. Buyers should also confirm Model: PVCB0601; Product: PV Combiner Box; Section: PV Combiner Box; Source page: 1, verified seller pricing, warranty terms, and installer compatibility before ordering

About this item

  • DC VOLTAGE RATING: Rated for 1000V DC, suitable for high-voltage solar arrays common in grid-tied systems.
  • OVERCURRENT PROTECTION: Includes a 45A overcurrent protector to safeguard the combined output circuit.
  • FUSE PROTECTION: Equipped with 15A fuses per string input, providing individual string overcurrent protection.
  • ENCLOSURE DIMENSIONS: Measures 430 x 318 x 120.5 mm, offering a compact yet accessible layout for wiring.
  • BUILD QUALITY: Designed for outdoor or indoor use with durable construction to withstand environmental conditions.
  • WARRANTY: Backed by a 1-year warranty for peace of mind.

What's Included

  • 1 x Felicity PVCB0601 PV Combiner Box
  • Pre-installed 15A fuses per string input
  • 45A overcurrent protector
  • Mounting hardware (if applicable, confirm with seller)

Applications

  • Grid-tied solar PV systems
  • Off-grid solar arrays with multiple strings
  • Commercial solar installations requiring string consolidation
  • Residential solar systems with multiple panel orientations
