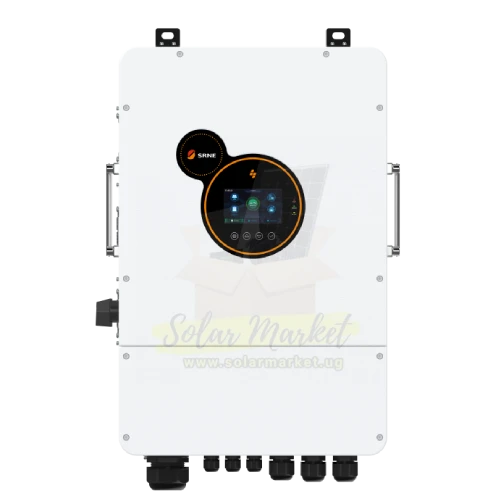

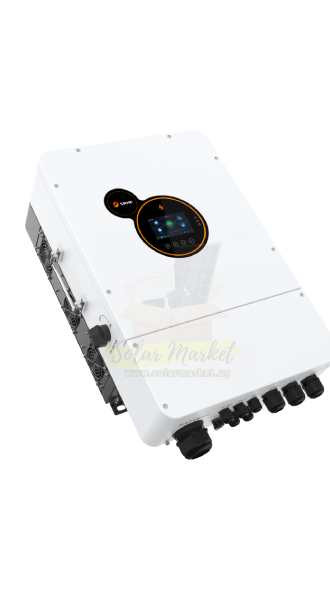

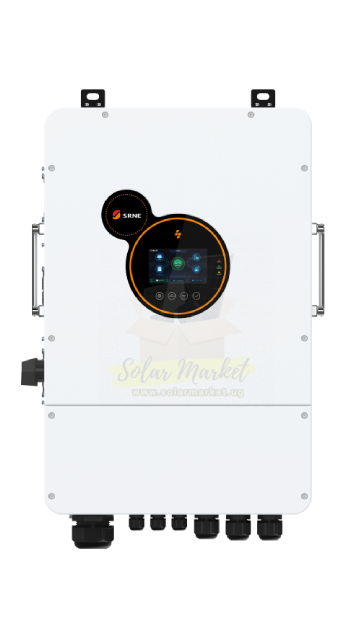

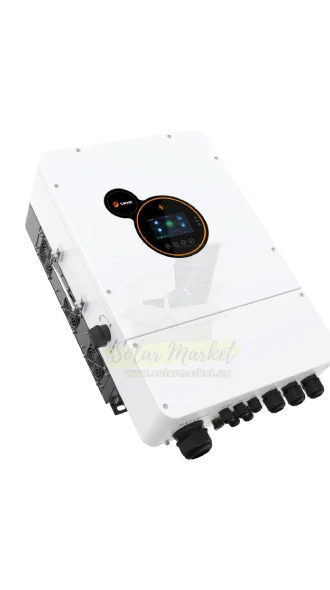

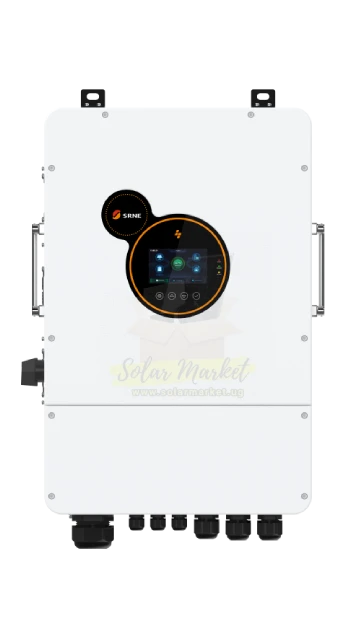

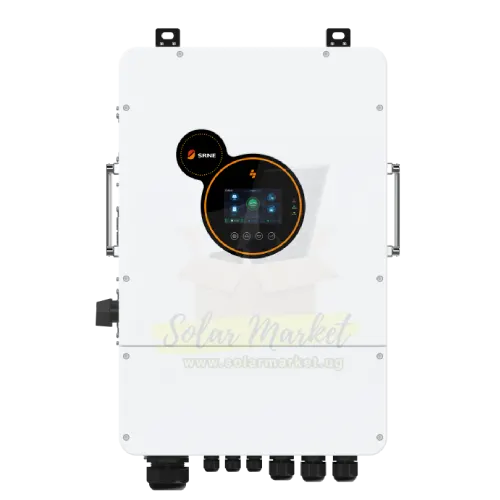

SRNE 12kW Single Phase Hybrid Inverter for Home backup power and Small business 48V Battery 5-Year Warranty (HESP48120S200)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
SRNE · Hybrid Inverters

SRNE 12kW Single Phase Hybrid Inverter for Home backup power and Small business 48V Battery 5-Year Warranty (HESP48120S200)

UGX7,690,300
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX153,806Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · 10 In stock
UGX7,690,300
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
SRNE 12kW Hybrid Inverter for Three-Phase Commercial Backup 48V 230/400Vac Dual MPPT 800Vdc 6-Parallel RS485/CAN (ASP48120H3) SRNE 12kW Hybrid Inverter for Three-Phase Commercial Backup 48V 230/40... UGX8,045,400 BLISON ENERGY SRNE 12kW 24kVA Max Surge Hybrid Inverter for Home and Small Business Backup 48Vdc 230Vac Single-Phase Dual MPPT 125-425Vdc Parallel up to 6 Units IP20 Indoor (ASP48120S200-H) SRNE 12kW 24kVA Max Surge Hybrid Inverter for Home and Small Business... UGX8,946,718 BLISON ENERGY SRNE 10kW Single Phase Hybrid Inverter for Home solar backup and Small business power 48V Battery MPPT 425V 2-Year Warranty (ASP48100S200-H) SRNE 10kW Single Phase Hybrid Inverter for Home solar backup and Small... UGX6,879,400 BLISON ENERGY SRNE 6kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC Dual MPPT 120-450VDC Expandable to 6 Units IP65 5-Year Warranty (HESP4860S100-H) SRNE 6kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC... UGX5,669,092 BLISON ENERGY
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 48 V
Solar Panels
UGX429,000
Battery
UGX8,257,400
Cables, mounting and protection
UGX935,550
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand SRNE Model HESP48120S200
Rated Power 12,000W Max PV Input Power 6,600W+6,600W
Max Charging Current 120A MPPT Voltage Range 125-425Vdc
Max PV Open Circuit Voltage 500Vdc Nominal Output Voltage 230Vac（Single phase）（200/208/220/240Vac settable）
Nominal Output Frequency 50/60Hz ±0.3Hz Nominal Voltage 48 V
Number of MPPT Trackers 2 Surge Power 24,000VA
Product Dimensions 670x440x240mm Product Weight 37 KG
Communication RS485/CAN/USB/Dry Contact Waveform Pure Sine Wave
Efficiency 97.5% Warranty 5 years
AC Output Rated Current 50/60Hz Anti-Islanding Protection Yes
Battery Type Lead-Acid / Li-ion / User-Define Certification IEC62109-1, IEC62109-2,EN61000-6-1, EN61000-6-3, FCC 15 class B,RoHS
Chemistry Lead-acid Cooling Method Heat sink + intelligent fan cooling
Current Rating 52.2 A DC Polarity Reverse Connection Protection Yes
DC Terminal insulation impedance Monitoring Yes Discharging time 10ms（typical）
Energy 6HP External Modules (Optional) Wi-Fi/GPRS
Ground Fault Current Monitoring Yes Humidity 0～100%
Ingress Protection IP65 Input AC Voltage Range 90-280Vac
Load Motor Capacity 6HP Max PV Input Current 22/22A
Max. AC Input/Output Apparent Power (VA) 12,000W Max. Bypass Overload Current 63A
Max. Parallel Capacity 1～6 Units（More than 3 units in parallel can form a three-phase output） Max. PV short circuit current 37A/37A
Noise <60dB Number of Cells 2
Output Over Current Protection Yes Output Short Circuit Protection Yes
Overcharge Protection AC type II/DC type III Power Factor 0.8 leading to 0.8 lagging
Protection Degree,IP65 Rated AC Input/Output Active Power (W) 12,000W
Short-circuit Current (Isc) 37A/37A SKU SM-HYB-SRN-01325
Temperature Rating -25～60°C, >45°C Derate THDi <3%

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

SRNE HESP48120S200 is a 12kW 48V hybrid inverter for Uganda power conditions. It supports up to 6.6kW PV input and is suitable for Home backup power, Small business, Off-grid residential where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED OUTPUT POWER: 12,000W continuous, with 24, max surge capacity for motor loads up to 6HP.
  • DUAL MPPT TRACKERS: Two independent MPPT inputs, each rated for 6,600W, with an operating voltage range of 125-425VDC and 99.9% tracking efficiency.
  • BATTERY FLEXIBILITY: Supports lead-acid, Li-ion, or user-defined battery types at 48V nominal, with a voltage range of 40-60VDC.
  • PARALLEL CAPABILITY: Expandable from 1 to 6 units; more than 3 units can form a three-phase output for larger installations.
  • IP65 PROTECTION: Dust-tight and water-resistant enclosure suitable for indoor or sheltered outdoor installation.
  • COMMUNICATION AND MONITORING: RS485, CAN, USB, and dry contact ports included; optional Wi-Fi or GPRS module for remote monitoring.

What's Included

  • SRNE HESP48120S200 Hybrid Inverter unit
  • User manual
  • Mounting brackets
  • Communication cables (RS485, USB)
  • Dry contact connector
  • Warranty card (5 years)

Applications

  • Home backup power during grid outages
  • Small business and shop backup
  • Off-grid residential solar systems
  • Grid-tied self-consumption with battery storage
  • Three-phase commercial setups (with 3+ units in parallel)
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of SRNE HESP48120S200 in Uganda?
SRNE HESP48120S200 is a 12kW hybrid inverter in Uganda. Key specs include battery voltage range 48V, max PV input voltage 500Vdc, max PV input power 6.6kW, rated AC output 12kW, communication RS485/CAN, warranty 5 years.
What PV voltage limits should technicians use for SRNE HESP48120S200?
For SRNE HESP48120S200, use MPPT/operating voltage range 500Vdc, max PV input voltage 500Vdc, and max PV input power 6.6kW when designing strings.
How much solar PV can be connected to SRNE HESP48120S200?
SRNE HESP48120S200 allows up to 6.6kW PV input power. Use max PV input voltage 500Vdc for string sizing checks.
What battery and charge current settings apply to SRNE HESP48120S200?
SRNE HESP48120S200 is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current the listed charging current.
What AC output should buyers and installers expect from SRNE HESP48120S200?
SRNE HESP48120S200 has a rated AC output of 12kW. It operates with grid frequency 50/60Hz and AC voltage range 230Vac（Single phase）（200/208/220/240Vac settable）. If needed, use 90-280Vac for compatibility checks.
What should buyers compare before ordering SRNE HESP48120S200 in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for SRNE HESP48120S200. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
