SRNE · Hybrid Inverters

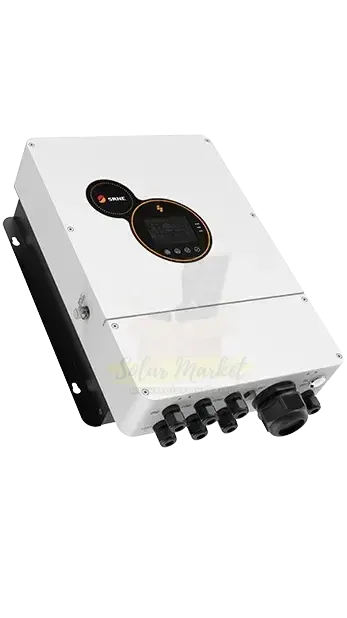

SRNE 6kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC Dual MPPT 120-450VDC Expandable to 6 Units IP65 5-Year Warranty (HESP4860S100-H)

UGX5,669,092 from 2 Shops
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX113,382
Christmas on SolarMarket Power for the holidays A gift that keeps the lights on. Pay safely through SolarMarket. Black Friday → Solar for every Christmas plan –Days–Hours–mins
Sold by BLISON ENERGY ✓ Best match
UGX5,669,092
⇄ Compare shops
Ways to payAll options
Pay NowBank Transfer
Complete your systemPick one of each. They go in your cart with this product.
Matched to 48 V
Solar PanelsUGX429,000
BatteryUGX3,334,760
Cables, mounting and protectionUGX47,817
With this product
Technicians who install this
Swipe/scroll to see more →
Key specs
Brand SRNE Model HESP4860S100-H
Rated Power 6000 W Max PV Input Power 4500 W + 4500 W
Max Charging Current 60Adc MPPT Voltage Range 120-450 V
Nominal Output Voltage 230 Vac Nominal Output Frequency 50/60 Hz
Nominal Voltage 40-60 V Number of MPPT Trackers 2
Surge Power 12000 VA Product Dimensions 556*345*182mm
Product Weight 22.1 KG Communication RS485, CAN, USB, Dry contact, Wi-Fi/4G stick (optional)
Waveform Pure sine wave Efficiency 97.5 %
Operating Temperature -25 to 60 C Warranty 5 years
AC Output Rated Current 26 A Anti-Islanding Protection Yes
Battery Type Li-ion, Lead-acid, User-defined Chemistry Lead-acid
Cooling Concept Heat sink + intelligent fan cooling Cooling Method Heat sink + intelligent fan cooling
Country of Origin Made in China Current Rating 26 A
DC Polarity Reverse Connection Protection Yes DC Terminal insulation impedance Monitoring Yes
Discharging time 10ms (typical) Energy 4HP
External Modules (Optional) Wi-Fi/4G Stick Ground Fault Current Monitoring Yes
Humidity 0~100% Ingress Protection IP65
Input AC Voltage Range 90-280 Vac Inverter Type Hybrid
Load Motor Capacity 4HP Max PV Input Current 16 A + 16 A
Max PV Short Circuit Current (per tracker) 27A/27A Max PV Voltage (DC) 500 V
Max. AC Input/Output Apparent Power (VA) 12,000VA Max. Bypass Overload Current 40Aac
Max. PV short circuit current 27Adc/27Adc Noise <60dB
Number of Cells 2 Output Over Current Protection Yes
Output Short Circuit Protection Yes Overcharge Protection AC type II/DC type III
Parallel Operation Yes, up to 6 units Phase Single phase
Power Factor 0.8 leading to 0.8 lagging Protection Degree,IP65
PV Start-up Voltage 90V Short-circuit Current (Isc) 27Adc/27Adc
SKU SM-HYB-SRN-00405 Storage Temperature -25~60°C, >45°C Derate
Temperature Rating -25 to +60°C, >45°C Derate THDi <3%
Transfer Time 10 ms

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

SRNE HESP4860S100-H is a 6kW 48V hybrid inverter for Uganda power conditions. It supports up to 4.5kW PV input and is suitable for Home solar backup, Small business power, Off-grid solar where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED OUTPUT POWER: 6,000W continuous output with 12, peak power for handling motor loads up to 4HP, suitable for running pumps and refrigerators during outages.
  • DUAL MPPT TRACKERS: Two independent MPPT inputs each rated for 4,500W, with a 120-450VDC operating range and 99.9% tracking efficiency, maximizing energy harvest from solar panels.
  • BATTERY FLEXIBILITY: Supports 48V lithium-ion, lead-acid, or user-defined battery types with a 40-60Vdc range and up to 100A hybrid charging current from solar and grid or generator simultaneously.
  • PARALLEL AND THREE-PHASE CAPABILITY: Expandable from 1 to 6 units in parallel; more than 3 units can form a three-phase output, allowing system scaling for growing energy needs.
  • IP65 PROTECTION AND DURABILITY: Weatherproof enclosure rated IP65, with heat sink and intelligent fan cooling, operating from -25°C to +60°C, ensuring reliable performance in Uganda's climate.
  • COMPREHENSIVE PROTECTION AND MONITORING: Includes PV reverse, anti-islanding, residual-current, insulation resistance, output short-circuit, over-current, over-voltage (AC type II/DC type III), and surge protection (AC type II/DC type II).

What's Included

  • 1x SRNE HESP4860S100-H Hybrid Inverter
  • 1x User Manual
  • 1x Warranty Card
  • Mounting brackets (if applicable, check seller offer)

Applications

  • Home solar backup during grid outages
  • Small business power backup for lighting, computers, and refrigeration
  • Off-grid solar systems for rural households
  • Solar-powered water pumping with motor loads up to 4HP
  • Grid-tied solar systems with battery storage for self-consumption
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of SRNE HESP4860S100-H in Uganda?
SRNE HESP4860S100-H is a 6kW hybrid inverter in Uganda. Key specs include battery voltage range 48V, max PV input voltage 500Vdc, max PV input power 4.5kW, rated AC output 6kW, communication RS485/CAN, warranty 5 years.
What PV voltage limits should technicians use for SRNE HESP4860S100-H?
For SRNE HESP4860S100-H, use MPPT/operating voltage range 500Vdc, max PV input voltage 500Vdc, and max PV input power 4.5kW when designing strings.
How much solar PV can be connected to SRNE HESP4860S100-H?
SRNE HESP4860S100-H allows up to 4.5kW PV input power. Use max PV input voltage 500Vdc for string sizing checks.
What battery and charge current settings apply to SRNE HESP4860S100-H?
SRNE HESP4860S100-H is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current the listed charging current.
What AC output should buyers and installers expect from SRNE HESP4860S100-H?
SRNE HESP4860S100-H has a rated AC output of 6kW. It operates with grid frequency the listed grid frequency and AC voltage range 230Vac (Single phase) (200/208/220/240Vac settable). If needed, use 90~280Vac for compatibility checks.
What should buyers compare before ordering SRNE HESP4860S100-H in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for SRNE HESP4860S100-H. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
