Specifications Comparison
Spec keys are preserved from both products. We never remove a key just because the other product has no value yet.
| Feature | Felicity 4kVA/4000W Hybrid Inverter for Home and | Felicity IVCM1012 LV 1kW Hybrid Inverter, 105V, |
|---|---|---|
| Overview | ||
| Model | IVEM4024-II | IVCM1012 LV |
| Solar Charger Type | MPPT | - |
| Battery Type | - | Lithium |
| Brand | Felicity | Felicity |
| Output | ||
| Nominal Output Voltage | 230 Vac+5% Vac | (V), 120V±5% V |
| Rated Power | 4000V W | 1000 VA/1000 W |
| Nominal Output Frequency | (Hz), 50±0.3 Hz/60 Hz±0.3 Hz (Adjustable) Hz | (Hz), 50±0.3 Hz/60 Hz±0.3 Hz (Auto detection) Hz |
| Waveform | Pure Sine Wave | Pure sine wave |
| AC Output Rated Current | - | 10 A |
| Battery | ||
| Pass Through Without Battery | Yes | - |
| Charging Algorithm | - | Three stage |
| Chemistry | Lithium | Lithium |
| Float Charge Voltage | 24 V | - |
| DC low shut down (adjustable) | - | @ Load < 20% |
| Solar Input | ||
| MPPT Voltage Range | 60V-500 V | Range (V), 15-90 V |
| Max PV Open Circuit Voltage | 500 V | 105 V |
| Max PV Input Power | 6000 W/60-500V W | 800 W |
| PV Start-up Voltage | 60 V | - |
| Number of MPPT Trackers | er: 1 | 1 |
| Start Voltage | 60V | 23 V |
| Max PV Input Current | 27 A | 35 A |
| AC Input | ||
| Max. AC Input/Output Apparent Power (VA) | - | 14 A |
| Transfer Time | - | 10ms typical (UPS); 20ms typical (Appliances) |
| Input AC Voltage Range | 90-280V Vac | (V), 65-140 Vac V |
| Max AC Input Voltage | 280 Vac | 140 Vac±3V Vac |
| Parallel Capability | No | - |
| Rated AC Input/Output Active Power (W) | - | 1000 W |
| Electrical | ||
| High Line Voltage Disconnect | - | 140 Vac±3V |
| Nominal Voltage | 24 V | 105 V |
| Peak Current (15s) | 120 | - |
| Low voltage load disconnect | - | 40±1 Hz |
| Max Charging Current | 120 A | 10 A |
| Current Rating | 120 A | 10 A |
| Max. Shorted Current | - | 10 A/1000 W |
| Max. Bypass Overload Current | - | 14 A |
| Max. efficiency | - | 90% |
| Connectivity | ||
| Communication | With lithium battery and WiFi module | - |
| Protection | ||
| Certification | CE-EMC. IEC62109-1/2 | - |
| Overcharge Protection | - | Yes |
| Output Short Circuit Protection | Yes | Yes |
| High DC Input Alarm & Fault | - | 30 V |
| Physical | ||
| Module Dimensions | - | 422x330x181 mm |
| Package Dimensions | (MM), 507*387*197 mm | 422x330x181mm W |
| Product Dimensions | 4KVA/4000 W, 24V, 50/60 Hz mm | 340x248x107mm W |
| Product Weight | 10.4 kg | 5.5 kg |
| Operating Temperature | Range, -10°C~50° C | Range, -10°C ~55° C |
| Storage Temperature | -15°C~60° C | -15°C ~60° C |
| Operating Temperature Range Discharge | - | -10°C ~55°C |
| Compatibility | ||
| Brand Compatibility | Not specified | Any Brand |
| Other Specs | ||
| Warranty | 2 Years | - |
| Low DC Input Shut-down Recovery | - | 29 V |
Overview
Model
IVEM4024-II
IVCM1012 LV
Solar Charger Type
MPPT
-
Battery Type
-
Lithium
Brand
Felicity
Felicity
Output
Nominal Output Voltage
230 Vac+5% Vac
(V), 120V±5% V
Rated Power
4000V W
1000 VA/1000 W
Nominal Output Frequency
(Hz), 50±0.3 Hz/60 Hz±0.3 Hz (Adjustable) Hz
(Hz), 50±0.3 Hz/60 Hz±0.3 Hz (Auto detection) Hz
Waveform
Pure Sine Wave
Pure sine wave
AC Output Rated Current
-
10 A
Battery
Pass Through Without Battery
Yes
-
Charging Algorithm
-
Three stage
Chemistry
Lithium
Lithium
Float Charge Voltage
24 V
-
DC low shut down (adjustable)
-
@ Load < 20%
Solar Input
MPPT Voltage Range
60V-500 V
Range (V), 15-90 V
Max PV Open Circuit Voltage
500 V
105 V
Max PV Input Power
6000 W/60-500V W
800 W
PV Start-up Voltage
60 V
-
Number of MPPT Trackers
er: 1
1
Start Voltage
60V
23 V
Max PV Input Current
27 A
35 A
AC Input
Max. AC Input/Output Apparent Power (VA)
-
14 A
Transfer Time
-
10ms typical (UPS); 20ms typical (Appliances)
Input AC Voltage Range
90-280V Vac
(V), 65-140 Vac V
Max AC Input Voltage
280 Vac
140 Vac±3V Vac
Parallel Capability
No
-
Rated AC Input/Output Active Power (W)
-
1000 W
Electrical
High Line Voltage Disconnect
-
140 Vac±3V
Nominal Voltage
24 V
105 V
Peak Current (15s)
120
-
Low voltage load disconnect
-
40±1 Hz
Max Charging Current
120 A
10 A
Current Rating
120 A
10 A
Max. Shorted Current
-
10 A/1000 W
Max. Bypass Overload Current
-
14 A
Max. efficiency
-
90%
Connectivity
Communication
With lithium battery and WiFi module
-
Protection
Certification
CE-EMC. IEC62109-1/2
-
Overcharge Protection
-
Yes
Output Short Circuit Protection
Yes
Yes
High DC Input Alarm & Fault
-
30 V
Physical
Module Dimensions
-
422x330x181 mm
Package Dimensions
(MM), 507*387*197 mm
422x330x181mm W
Product Dimensions
4KVA/4000 W, 24V, 50/60 Hz mm
340x248x107mm W
Product Weight
10.4 kg
5.5 kg
Operating Temperature
Range, -10°C~50° C
Range, -10°C ~55° C
Storage Temperature
-15°C~60° C
-15°C ~60° C
Operating Temperature Range Discharge
-
-10°C ~55°C
Compatibility
Brand Compatibility
Not specified
Any Brand
Other Specs
Warranty
2 Years
-
Low DC Input Shut-down Recovery
-
29 V
Frequently Asked Questions
Key differences from the current specs are: Max PV Input Power (6000 W vs 800 W); Max PV Open Circuit Voltage (500 V vs 105 V); Rated Power (4000 W vs 1000 VA/1000 W).

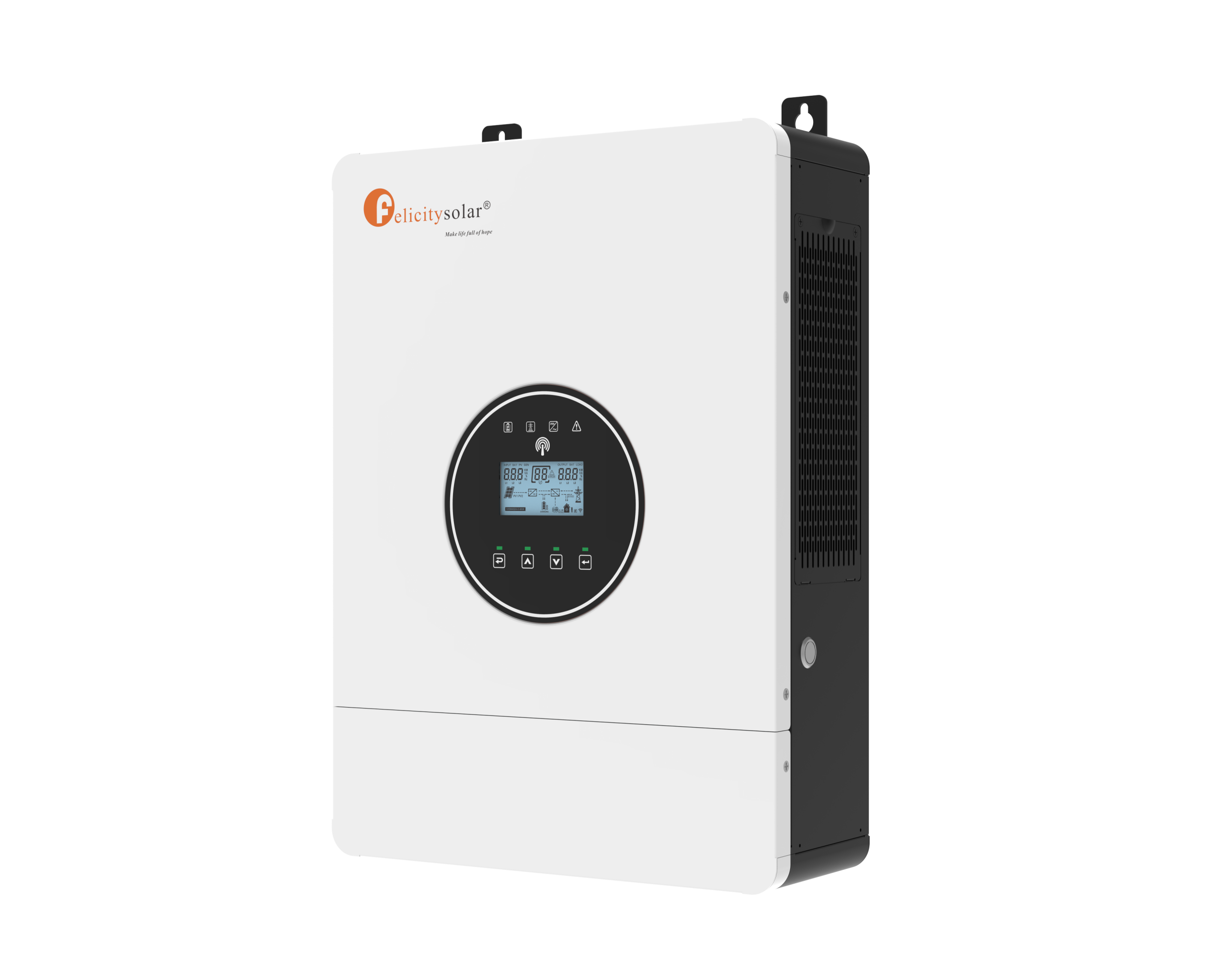

Felicity IVEM4024-II Hybrid Inverter 4kVA 24V, 500V PV, 1 MPPT, Pure Sine Wave, Built-in WiFi, CAN/RS485, for Residential Solar and Small Commercial Solar currently leads on more weighted core specs (86/100 vs 14/100). For home backup, also confirm battery voltage match and your expected daily load before purchase.
Current price snapshot on SolarMarket Uganda is Felicity IVEM4024-II Hybrid Inverter 4kVA 24V, 500V PV, 1 MPPT, Pure Sine Wave, Built-in WiFi, CAN/RS485, for Residential Solar and Small Commercial Solar: UGX 1,212,750, 1kW Felicity Hybrid Inverter IVCM1012 LV, 105V, Supports up to 1kW PV Input, For Home backup, Small s
Yes. You can request quotations from verified sellers using the RFQ flow: https://www.solarmarket.ug/rfq/create
