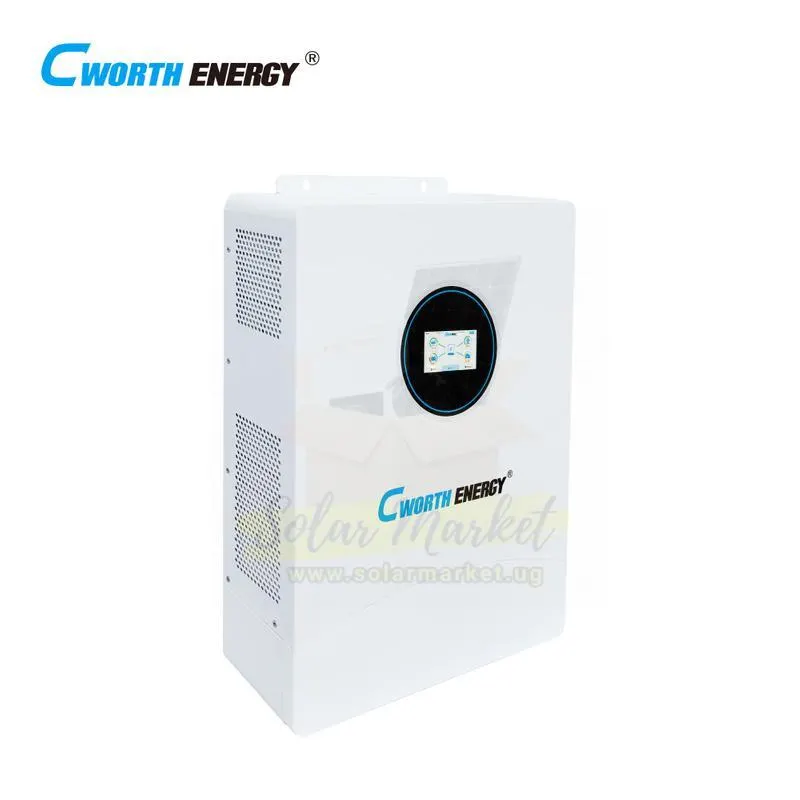

Cworth 12kW Hybrid Inverter for Home and Small Business Backup 48V DC Input 230VAC Output Dual MPPT 85-450VDC Parallel up to 12 Units 210A Solar Charger (CE-H12K)
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
Cworth · Hybrid Inverters

Cworth 12kW Hybrid Inverter for Home and Small Business Backup 48V DC Input 230VAC Output Dual MPPT 85-450VDC Parallel up to 12 Units 210A Solar Charger (CE-H12K)

UGX4,674,600
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX93,492Pickup in Kampala3-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Kampala · Pickup in Kampala · 2 In stock
UGX4,674,600
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
Entelechy 60kW High Voltage Hybrid Inverter for Commercial and Large-scale grid-tied 850V Battery MPPT 1000V (BST-HPI-60KW-H3) Entelechy 60kW High Voltage Hybrid Inverter for Commercial and Large-s... UGX5,633,564 Entelechy Solar Solutions SRNE 6kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC Dual MPPT 120-450VDC Expandable to 6 Units IP65 5-Year Warranty (HESP4860S100-H) SRNE 6kW Hybrid Inverter for Home and Small Business Backup 48V 230VAC... UGX5,669,092 BLISON ENERGY Cosuper 5kW 48V Solar Hybrid Inverter Pure Sine Wave MPPT 60A Parallel 3 Phase Support Spe5000 Cosuper 5kW 48V Solar Hybrid Inverter Pure Sine Wave MPPT 60A Parallel... UGX4,081,000 Baseline Africa Uganda Sukam 11kW Hybrid Inverter for Home and Small Business Backup 48V 150A MPPT 90-450VDC Dual MPPT Parallel up to 6 Units RS232 USB WiFi (FX1100-48H) Sukam 11kW Hybrid Inverter for Home and Small Business Backup 48V 150A... UGX4,028,000 Auto Solutions plus ltd
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
3 years · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (3 years). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 48 V
Solar Panels
UGX429,000
Battery
UGX8,257,400
Cables, mounting and protection
UGX3,985
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Cworth Model CE-H12K
Rated Power 12000 W Max PV Input Power 12000W
Max Charging Current 10A-Max. Grid Charge Curent (Adjustable unit is 1A) MPPT Voltage Range 85V-450V
Max PV Open Circuit Voltage 500 V Nominal Output Voltage 230Vact5%
Nominal Output Frequency (Hz),50+0.3Hz/60Hz+0.3Hz (Adjustable) Nominal Voltage 85 V
Product Dimensions 525x630x125mm Product Weight 27 KG
Waveform Pure sine wave Efficiency 93%
Operating Temperature -10°C~55°C AC Output Rated Current 54.5A
Battery Type Flooded 29.2V/58.4V 27V/54V Chemistry Lithium
Current Rating 54.5 A High DC Input Alarm & Fault 62V+0.4V
High Line Voltage Disconnect 280Vact+3V Input AC Voltage Range 85 V
Low DC Input Shut-down Recovery 60V+0.4V Low voltage load disconnect 170Vac+3V (For Computers)
Max PV Input Current 27A+27A Max. AC Input/Output Apparent Power (VA) 12000W
Max. PV short circuit current 170Vac+3V (For Computers) Max. Shorted Current 54.5A/12000W
Output Short Circuit Protection Yes Overcharge Protection Yes
Parallel Capability Yes,up to 12 units Pass Through Without Battery Yes
Rated AC Input/Output Active Power (W) 12000W Self Discharge Adjustable, up to 30V/60V
SKU SM-CAT-GEN-00928 Storage Temperature -15°C~60°C
Transfer Time 10ms typical (UPS);20ms typical (Appliances)

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Cworth CE-H12K is a 12kW 48V hybrid inverter for Uganda power conditions. It supports up to 12kW PV input and is suitable for Home backup power, Small business, Off-grid residential where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • RATED OUTPUT POWER: 12,000W continuous output from a 48V DC battery bank, suitable for powering multiple appliances and equipment in homes and small businesses.
  • DUAL MPPT SOLAR CHARGER: Two independent MPPT trackers accept PV voltage from 85V to 450V, with a combined solar charging current of up to 210A and maximum input power of 12,000W.
  • PARALLEL OPERATION: Supports up to 12 units in parallel for scalable power capacity, allowing system expansion as energy needs grow.
  • BATTERY TYPE FLEXIBILITY: Compatible with AGM, flooded, and lithium batteries with adjustable charge voltage settings (up to 30V/60V for self-defined profiles).
  • PURE SINE WAVE OUTPUT: Delivers clean 230VAC pure sine wave power with nominal frequency of 50Hz or 60Hz (auto-detection), suitable for sensitive electronics.
  • PASS-THROUGH WITHOUT BATTERY: The inverter can operate in line mode without a battery connected, passing utility or generator power directly to loads.

What's Included

  • 1x Cworth CE-H12K Hybrid Inverter
  • 1x User Manual
  • 1x Warranty Card

Applications

  • Home backup power during grid outages
  • Small business and shop power backup
  • Off-grid residential solar systems
  • Grid-tied solar systems with battery storage
  • Remote offices and clinics requiring reliable power
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of Cworth CE-H12K in Uganda?
Cworth CE-H12K is a 12kW hybrid inverter in Uganda. Key specs include battery voltage range 48V, max PV input voltage SOOV, max PV input power 12kW, rated AC output 12kW.
What PV voltage limits should technicians use for Cworth CE-H12K?
For Cworth CE-H12K, use MPPT/operating voltage range 85V-450V, max PV input voltage SOOV, and max PV input power 12kW when designing strings.
How much solar PV can be connected to Cworth CE-H12K?
Cworth CE-H12K allows up to 12kW PV input power. Use MPPT range 85V-450V, max PV input voltage SOOV for string sizing checks.
What battery and charge current settings apply to Cworth CE-H12K?
Cworth CE-H12K is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current 210A.
What AC output should buyers and installers expect from Cworth CE-H12K?
Cworth CE-H12K has a rated AC output of 12kW. It operates with grid frequency 50/60Hz (Auto detection) and AC voltage range 230Vact5%. If needed, use the listed input range for compatibility checks.
What should buyers compare before ordering Cworth CE-H12K in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for Cworth CE-H12K. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
