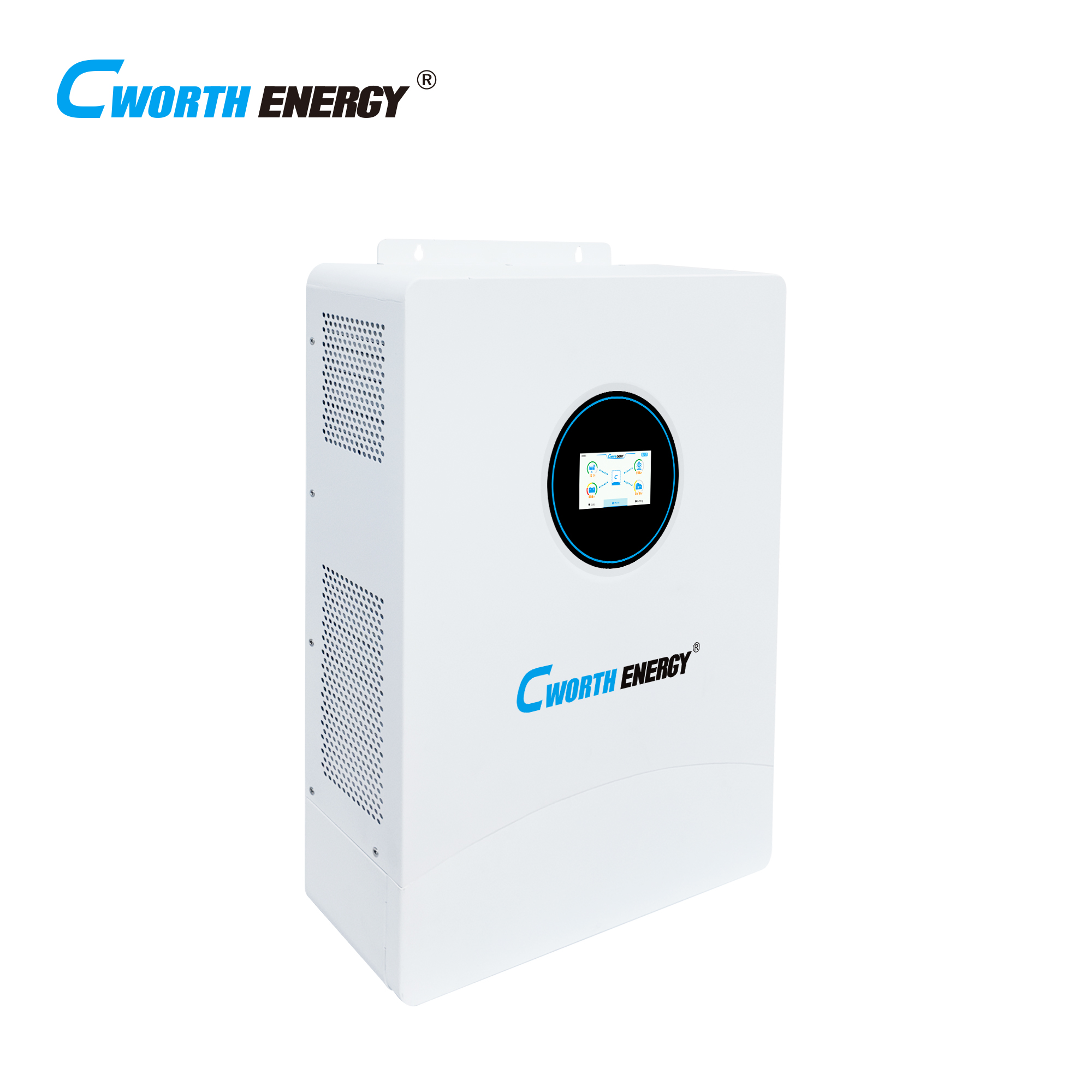

Cworth 12kW Hybrid Inverter for Home and Small Business Backup 48V DC Input 230VAC Output Dual MPPT 85-450VDC Parallel up to 12 Units 210A Solar Charger (CE-H12K)

Name: Cworth 12kW Hybrid Inverter for Home and Small Business Backup 48V DC Input 230VAC Output Dual MPPT 85-450VDC Parallel up to 12 Units 210A Solar Charger (CE-H12K)
Brand: Cworth
SKU: SM-CAT-GEN-00928
Price: 4410000.00 UGX
Availability: InStock

Cworth

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: Cworth CE-H12K is a 12kW 48V hybrid inverter in Uganda. It supports up to 12kW PV input and is built for Home backup power, Small business, Off-grid residential where battery-backed continuity and stable AC output matter

UGX4,410,000

7 Days

2 available

Minimum order qty 1

QTY

Order on WhatsApp

Compare With Similar capacity Hybrid Inverters

Estimate Shipping Time 7 Days

Sold by Masrcorp Solar

Message Seller

Brand Cworth

Products from this brand

Product Information

Technical specifications

Brand	Cworth	Model	CE-H12K
Rated Power	12000 W	Max PV Input Power	12000W
Max Charging Current	10A-Max. Grid Charge Curent (Adjustable unit is 1A)	MPPT Voltage Range	85V-450V
Max PV Open Circuit Voltage	500 V	Nominal Output Voltage	230Vact5%
Nominal Output Frequency	(Hz),50+0.3Hz/60Hz+0.3Hz (Adjustable)	Nominal Voltage	85 V
Product Dimensions	525x630x125mm	Product Weight	27 KG
Waveform	Pure sine wave	Efficiency	93%
Operating Temperature	-10°C~55°C	AC Output Rated Current	54.5A
Battery Type	Flooded 29.2V/58.4V 27V/54V	Chemistry	Lithium
Current Rating	54.5 A	High DC Input Alarm & Fault	62V+0.4V
High Line Voltage Disconnect	280Vact+3V	Input AC Voltage Range	85 V
Low DC Input Shut-down Recovery	60V+0.4V	Low voltage load disconnect	170Vac+3V (For Computers)
Max PV Input Current	27A+27A	Max. AC Input/Output Apparent Power (VA)	12000W
Max. PV short circuit current	170Vac+3V (For Computers)	Max. Shorted Current	54.5A/12000W
Output Short Circuit Protection	Yes	Overcharge Protection	Yes
Parallel Capability	Yes,up to 12 units	Pass Through Without Battery	Yes
Rated AC Input/Output Active Power (W)	12000W	Self Discharge	Adjustable, up to 30V/60V
SKU	SM-CAT-GEN-00928	Storage Temperature	-15°C~60°C
Transfer Time	10ms typical (UPS);20ms typical (Appliances)

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

Tumuhimbise · @Mike

EXPERT IN DIESEL GENERATORS, SOLAR SYSTEMS,ISO(QHES) AUDITS, ENERGY AUDITS AND...

Automotive Repair Solar Energy Audits Solar Installation

View Profile

Ndawula · @ndawula

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Energy Audits Solar Installation Solar System Design

View Profile

Wasswa · @Wasswa

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Osama · @matt

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

Kibozeeyi · @solar_installer

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

Francis · @Franics

Professional Solar Expert

Kampala

Solar Energy Audits Solar Installation

View Profile

Etiene · @EngMaate

ElectroMechanical Engineer

Kampala

Project Management Solar Energy Audits Solar Water heater

View Profile

Okitwi · @OKITWI

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

Francis · @francismakayi

Reliable Solar Solutions Expert in Uganda – Power Your Home & Business with Clea...

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

Kaswa · @Kaselec

Solar and Electrical expert

Mukono

Inverter Repair Generator Repair Solar System Design

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

Cworth CE-H12K is a 12kW 48V hybrid inverter for Uganda power conditions. It supports up to 12kW PV input and is suitable for Home backup power, Small business, Off-grid residential where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

RATED OUTPUT POWER: 12,000W continuous output from a 48V DC battery bank, suitable for powering multiple appliances and equipment in homes and small businesses.
DUAL MPPT SOLAR CHARGER: Two independent MPPT trackers accept PV voltage from 85V to 450V, with a combined solar charging current of up to 210A and maximum input power of 12,000W.
PARALLEL OPERATION: Supports up to 12 units in parallel for scalable power capacity, allowing system expansion as energy needs grow.
BATTERY TYPE FLEXIBILITY: Compatible with AGM, flooded, and lithium batteries with adjustable charge voltage settings (up to 30V/60V for self-defined profiles).
PURE SINE WAVE OUTPUT: Delivers clean 230VAC pure sine wave power with nominal frequency of 50Hz or 60Hz (auto-detection), suitable for sensitive electronics.
PASS-THROUGH WITHOUT BATTERY: The inverter can operate in line mode without a battery connected, passing utility or generator power directly to loads.

What's Included

1x Cworth CE-H12K Hybrid Inverter
1x User Manual
1x Warranty Card

Applications

Home backup power during grid outages
Small business and shop power backup
Off-grid residential solar systems
Grid-tied solar systems with battery storage
Remote offices and clinics requiring reliable power

Product FAQs

Cworth CE-H12K is a 12kW hybrid inverter in Uganda. Key specs include battery voltage range 48V, max PV input voltage SOOV, max PV input power 12kW, rated AC output 12kW.

Browse live offers

For Cworth CE-H12K, use MPPT/operating voltage range 85V-450V, max PV input voltage SOOV, and max PV input power 12kW when designing strings.

Browse live offers Find technicians

Cworth CE-H12K allows up to 12kW PV input power. Use MPPT range 85V-450V, max PV input voltage SOOV for string sizing checks.

Browse live offers

Cworth CE-H12K is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current 210A.

Browse live offers

Cworth CE-H12K has a rated AC output of 12kW. It operates with grid frequency 50/60Hz (Auto detection) and AC voltage range 230Vact5%. If needed, use the listed input range for compatibility checks.

Browse live offers Request quotes Find technicians

Compare verified seller pricing, warranty terms, authenticity, and installer support for Cworth CE-H12K. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
