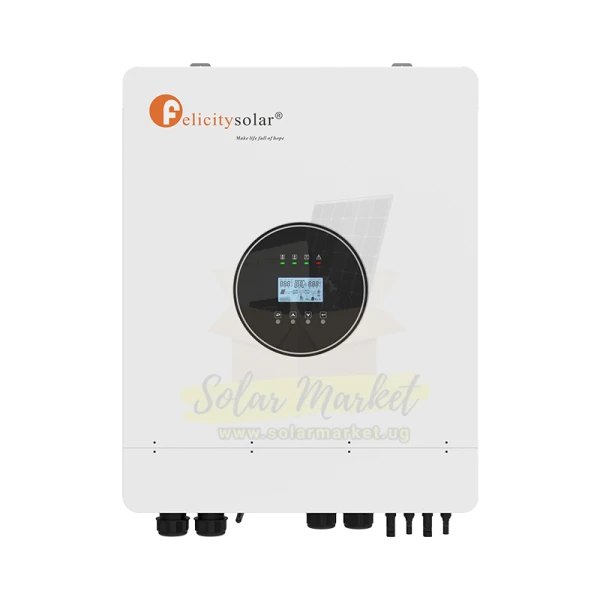

Felicity 12kVA 12000W Hybrid Inverter for Home and Small Business Backup 48V 240A MPPT 90-450VDC Parallel up to 6 Units Single/Three Phase WiFi Communication (IVEM12048-II)

Name: Felicity 12kVA 12000W Hybrid Inverter for Home and Small Business Backup 48V 240A MPPT 90-450VDC Parallel up to 6 Units Single/Three Phase WiFi Communication (IVEM12048-II)
Brand: Felicity
SKU: SM-CAT-FEL-00563
Price: 3465000.00 UGX
Availability: InStock

Felicity

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: Felicity IVEM12048-II is a 48V Three Phase hybrid inverter in Uganda. It supports the published PV input limit and is built for Home backup power, Small business power, Off-grid residential where battery-backed continuity and stable AC output matter

UGX3,465,000 /Pcs

VAT incl. Presale enabled

4 available

Minimum order qty 1

QTY

Order on WhatsApp

Compare With Similar capacity Hybrid Inverters

Sold by Masrcorp Solar Uganda

Message Seller

Brand Felicity

Products from this brand

Product Information

Technical specifications

Brand	Felicity	Model	IVEM12048-II
Rated Power	12000VA	Max PV Input Power	15000W (7500W for single PV)/90-450V
Max Charging Current	27A x 2 (MAX 54A)	MPPT Voltage Range	90V-450V
Max PV Open Circuit Voltage	500	Nominal Output Voltage	230Vac+5%
Nominal Output Frequency	50±0.3Hz / 60Hz±0.3Hz (Adjustable)	Nominal Voltage	48 V
Number of MPPT Trackers	2	Product Dimensions	12KVA/12000W, 48V, 50/60Hz
Product Weight	26.8KG	Communication	Yes
Waveform	Pure Sine Wave	Operating Temperature	-10°C~50°C
Warranty	2 years	Certification	CE-EMC, IEC 62109-1/2
Chemistry	Lithium	Current Rating	240
Input AC Voltage Range	90-280Vac	Max AC Input Voltage	280Vac
Max PV Input Current	27A x 2 (MAX 54A)	Parallel Capability	Yes, Up to 6 Units
Pass Through Without Battery	Yes	PV Start-up Voltage	100V
SKU	SM-CAT-FEL-00563	Start Voltage	100V

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

Felicity IVEM12048-II is a 48V Three Phase hybrid inverter for Uganda power conditions. It supports the published PV input limit and is suitable for Home backup power, Small business power, Off-grid residential where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
HIGH FREQUENCY HYBRID DESIGN: This inverter uses high-frequency switching technology for efficient power conversion, suitable for residential and small commercial backup applications in Uganda.
48V SYSTEM WITH 240A MPPT CHARGER: Operates on a standard 48V battery bank and integrates a 240A maximum MPPT solar charge controller, allowing for substantial solar array input.
PARALLEL OPERATION UP TO 6 UNITS: Supports parallel connection of up to six identical inverters, enabling scalable power for single-phase or three-phase loads as demand grows.
WIDE PV INPUT RANGE: Accepts solar panel array voltage from 90V to 450V, with a maximum PV input power of 15000W (7500W per individual PV input), offering flexibility in panel configuration.
LITHIUM BATTERY AND WIFI COMMUNICATION: Includes built-in communication protocols for lithium battery management and a WiFi module for remote monitoring and system control via a mobile app.

What's Included

Felicity IVEM12048-II Hybrid Inverter unit, user manual, WiFi module (built-in), communication cable for lithium battery, mounting brackets, warranty card.

Applications

Home backup power during grid outages
Small business power backup for shops and offices
Off-grid residential solar systems
Three-phase backup for light commercial equipment
Scalable solar storage for growing energy needs

Compatibility

Compatible with any brand

For more information please contact our technical team. Some models within the listed brands may be incompatible even if the brand is officially supported.

Product FAQs

Felicity IVEM12048-II is a specified Three Phase hybrid inverter in Uganda. Key specs include battery voltage range 48V, monitoring WiFi Monitoring.

Browse live offers

For Felicity IVEM12048-II, use MPPT/operating voltage range the listed range, max PV input voltage the listed max PV voltage, and max PV input power the listed PV input power when designing strings.

Browse live offers Find technicians

Felicity IVEM12048-II allows up to the listed limit PV input power. Use nominal battery voltage 48V for string sizing checks.

Browse live offers

Felicity IVEM12048-II is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current the listed charging current.

Browse live offers

Felicity IVEM12048-II has a rated AC output of the listed AC output on Three Phase output. It operates with grid frequency the listed grid frequency and AC voltage range the listed AC voltage. If needed, use the listed input range for compatibility checks.

Browse live offers Request quotes Find technicians

Compare verified seller pricing, warranty terms, authenticity, and installer support for Felicity IVEM12048-II. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.

Browse live offers Compare models Request quotes
