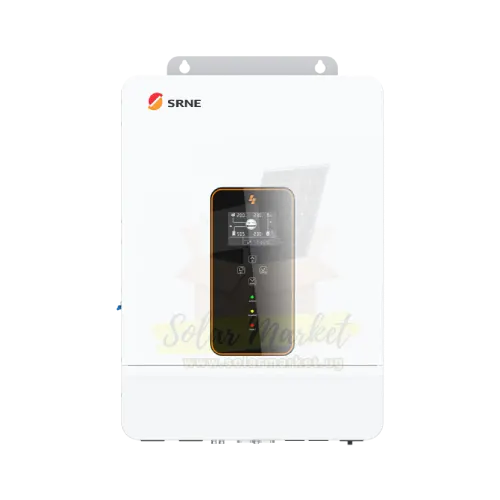

SRNE ASF48120SH3 12kW 48V Three Phase Off-Grid Solar Inverter for Business and Three Phase Loads, 2 MPPT 18kW PV, 800V, 260A Charge, IP20
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
SRNE · Off-Grid Inverters

SRNE ASF48120SH3 12kW 48V Three Phase Off-Grid Solar Inverter for Business and Three Phase Loads, 2 MPPT 18kW PV, 800V, 260A Charge, IP20

UGX5,462,180
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX109,244Delivery in 7 days1-yr warranty
Christmas on SolarMarket Power for the holidays A gift that keeps the lights on. Pay safely through SolarMarket. Black Friday → Solar for every Christmas plan –Days–Hours–mins
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · 10 In stock
UGX5,462,180
More from SRNEOther SRNE products on SolarMarket
See All SRNE →
SRNE ASP48100S200-H 10kW 48V Off-Grid Solar Inverter for Home and Business Backup, 2 MPPT, 500V PV, 11kW PV, 200A Charge, Parallel up to 6 SRNE ASP48100S200-H 10kW 48V Off-Grid Solar… UGX6,879,400 BLISON ENERGYView → SRNE HYP4860S100-H 6.2kW 48V Off-Grid Solar Inverter for Home and Small Business Backup, 2 MPPT, 550V PV, 9kW PV, 100A Charge, Parallel up to 6 SRNE HYP4860S100-H 6.2kW 48V Off-Grid Solar… UGX3,293,950 BLISON ENERGYView → SRNE ASP48120SH3 12kW 48V Three Phase Off-Grid Solar Inverter for Business Backup, 2 MPPT 18kW PV, 800V, 260A Charge, Parallel up to 6 SRNE ASP48120SH3 12kW 48V Three Phase Off-Grid… UGX8,045,400 BLISON ENERGYView → SRNE AFP4850S100-H 5kW 48V Off-Grid Solar Inverter for Home and Small Business Backup, 7.5kW PV, 500V, 100A Charge, IP20 SRNE AFP4850S100-H 5kW 48V Off-Grid Solar Inverter UGX2,791,404 BLISON ENERGYView → SRNE HF1215S60-108 1.5kW 12V Off-Grid Solar Inverter for Home and Small Business Backup, 1 MPPT, 108V PV, 60A Solar Charger, 60A AC Charger SRNE HF1215S60-108 1.5kW 12V Off-Grid Solar… UGX2,921,894 Masrcorp Solar UgandaView → SRNE HF2430S80-H 3.3kW 24V Off-Grid Solar Inverter for Home and Small Business Backup, 1 MPPT, 500V PV, 4kW PV, 80A Charge SRNE HF2430S80-H 3.3kW 24V Off-Grid Solar Inverter UGX1,703,592 BLISON ENERGYView → SRNE ASP48120S200-H 12kW 48V Off-Grid Solar Inverter for Home and Business Backup, 2 MPPT, 500V PV, 13.2kW PV, 200A Charge, Parallel up to 6 SRNE ASP48120S200-H 12kW 48V Off-Grid Solar… UGX8,946,718 BLISON ENERGYView → SRNE AEP4860S135-H 6kW 48V Off-Grid Solar Inverter for Home and Small Business Backup, 2 MPPT 12kW PV, 500V, 135A Charge, Parallel up to 6, IP65 SRNE AEP4860S135-H 6kW 48V Off-Grid Solar Inverter UGX2,401,960 Masrcorp Solar UgandaView →
More choice from other shopsSimilar products near this price, sold by other shops on SolarMarket
See All Off-Grid Inverters →
Felicity IVEM12048-II 12kVA 12000W 48V Off-Grid Solar Inverter for Home and Business Backup, 2 PV Inputs, 500V PV, 15kW PV, 240A Charge, Parallel up to 6 Felicity IVEM12048-II 12kVA 12000W 48V Off-Grid… UGX3,353,840 Masrcorp Solar UgandaView →
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemPick one of each. They go in your cart with this product.
Matched to 48 V
Solar PanelsUGX429,000
BatteryUGX6,323,960
Cables, mounting and protectionUGX7,970
With this product
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand SRNE Model ASF48120SH3
Rated Power 12000 W Max PV Input Power 9000 W + 9000 W
Max Charging Current 260 A MPPT Voltage Range 200-650 V
Nominal Output Voltage 230/400 Vac Nominal Output Frequency 50/60 Hz
Nominal Voltage 40-60 V Number of MPPT Trackers 2
Surge Power 24000 VA Product Dimensions 620 x 445 x 130 mm
Product Weight 27 KG Communication RS485, CAN, USB, Dry contact, Wi-Fi/GPRS (optional)
Waveform Pure sine wave Efficiency 92 %
Operating Temperature -10 to 55 C Warranty 2 years
AC Output Rated Current 50/60Hz Battery Type Li-ion, Lead-acid, User-defined
Certification IEC62109-1/IEC62109-2/UL1741/RoHs/EN61000-6-1/EN61000-6-3/FCC 15 class B Chemistry Lead-acid
Cooling Method air cooling Current Rating 260 A
Discharging time 10ms (typical) Energy 6HP
External Modules (Optional) Wi-Fi/GPRS Ingress Protection IP20
Input AC Voltage Range 170-280 Vac phase, 305-485 Vac line Inverter Type Off-grid
Load Motor Capacity 6HP Max PV Input Current 22 A + 22 A
Max PV Voltage (DC) 800 V Max. AC Input/Output Apparent Power (VA) 24,000VA
Max. Bypass Overload Current 63A Noise <60dB
Output Cables Off-grid (default) / power the load without battery Phase Three phase
Protection Degree,IP20 Indoor Only SKU SM-HYB-SRN-01312
Temperature Rating -10-55°C, >45°C Derate Transfer Time 10 ms

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

SRNE ASF48120H3 is a 12kW 48V Three Phase hybrid inverter for Uganda power conditions. It supports up to 9kW PV input and is suitable for Commercial, Three-phase equipment, Water pumping where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

  • SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
  • RATED OUTPUT POWER: 12,000W continuous output with a maximum surge capacity of 24, for starting motors and handling transient loads.
  • THREE-PHASE OUTPUT: Delivers 230/400Vac three-phase power, suitable for commercial equipment, industrial machinery, and three-phase loads in Uganda.
  • DUAL MPPT SOLAR CHARGING: Two independent MPPT trackers with a voltage range of 200-650VDC and a maximum PV input of 9,000W each, supporting up to 18kW total solar capacity.
  • HIGH SURGE AND MOTOR LOAD CAPACITY: Capable of handling up to 6HP motor loads, making it ideal for pumps, compressors, and other inductive equipment common in commercial settings.
  • FLEXIBLE BATTERY COMPATIBILITY: Works with 48V Li-ion, lead-acid, or user-defined battery types, with a maximum hybrid charging current of 260A.

What's Included

  • 1x SRNE ASF48120H3 Hybrid Inverter
  • 1x User Manual
  • 1x Communication Cable Kit
  • 1x Warranty Card

Applications

  • Commercial and industrial solar backup systems
  • Three-phase equipment and machinery power
  • Water pumping and irrigation systems
  • Manufacturing and processing facilities
  • Office buildings and retail complexes
  • Telecommunications and data centers
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What are the key specs of SRNE ASF48120H3 in Uganda?
SRNE ASF48120H3 is a 12kW Three Phase hybrid inverter in Uganda. Key specs include battery voltage range 48V, max PV input voltage 800Vdc+800Vdc, max PV input power 9kW, rated AC output 12kW, communication RS485/CAN, warranty 2 years.
What PV voltage limits should technicians use for SRNE ASF48120H3?
For SRNE ASF48120H3, use MPPT/operating voltage range 200~650Vdc, max PV input voltage 800Vdc+800Vdc, and max PV input power 9kW when designing strings.
How much solar PV can be connected to SRNE ASF48120H3?
SRNE ASF48120H3 allows up to 9kW PV input power. Use MPPT range 200~650Vdc, max PV input voltage 800Vdc+800Vdc for string sizing checks.
What battery and charge current settings apply to SRNE ASF48120H3?
SRNE ASF48120H3 is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current 260A.
What AC output should buyers and installers expect from SRNE ASF48120H3?
SRNE ASF48120H3 has a rated AC output of 12kW on Three Phase output. It operates with grid frequency 50/60Hz and AC voltage range 230/400Vac,Three-phase. If needed, use phase voltage 170~280V, line voltage 305~485V for compatibility checks.
What should buyers compare before ordering SRNE ASF48120H3 in Uganda?
Compare verified seller pricing, warranty terms, authenticity, and installer support for SRNE ASF48120H3. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
