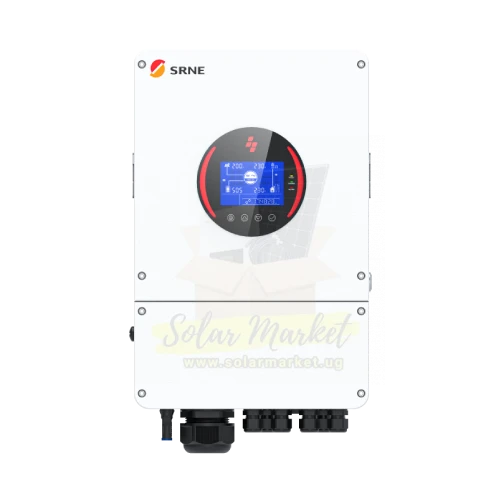

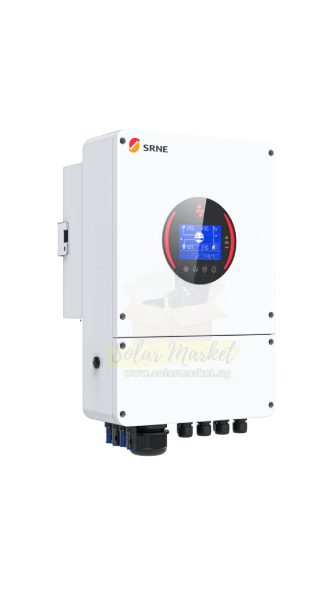

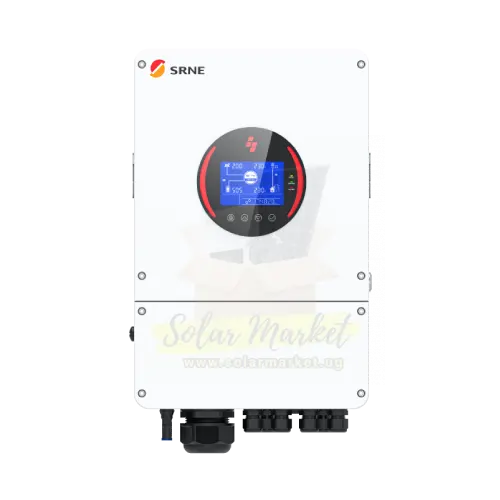

SRNE 6kW Hybrid Inverter for Home and Small Business Backup Dual MPPT 48V 230VAC Output Parallel up to 6 Units IP65 (AEP4860S135-H)

Name: SRNE 6kW Hybrid Inverter for Home and Small Business Backup Dual MPPT 48V 230VAC Output Parallel up to 6 Units IP65 (AEP4860S135-H)
Brand: SRNE
SKU: SM-HYB-SRN-01224
Price: 2266000.00 UGX
Availability: InStock

SRNE

0 out of 5 | 0 Ratings | Q&A

About this item

Product spotlights

Highlights: SRNE AEP4860S135-H is a 6kW 500V hybrid inverter in Uganda. It supports up to 6kW PV input and is built for Home backup power, Small business solar, Off-grid residential where battery-backed continuity and stable AC output matter

UGX2,266,000

FREE delivery · 7 Days

10 available

Minimum order qty 1

QTY

Compare With Similar capacity Hybrid Inverters

Estimate Shipping Time 7 Days

Inhouse product

Message Seller

Brand SRNE

Products from this brand

Product Information

Technical specifications

Brand	SMA	Model	IP65
Rated Power	6000W	Max PV Input Power	r (W),6000W + 6000W
Max Charging Current	135 A	MPPT Voltage Range	65Vdc ~ 450Vdc / 65Vdc ~ 450Vdc
Nominal Output Voltage	230Vac (200/208/220/230/240Vac Settable)	Nominal Voltage	48 V
Number of MPPT Trackers	2	Surge Power	2 times of rated power,10s
Product Dimensions	300x460x217	Product Weight	17.5 KG
Communication	RS485/CAN	Waveform	Pure sine wave
Efficiency	97.5%	Warranty	5 years
AC Output Rated Current	26.1Aac	Battery Type	Lithium-ion Battery / Lead-acid Battery / User-defined Battery
Built-in WiFi	RS485/CAN/USB/Dry Contact	Certification	RoHs, IEC 62109-1/-2, EN 61000
Chemistry	Lead-acid	Color Temperature	-40 ~ 60°C, >45°C Derated
Cooling Method	Heat sink + intelligent air cooling	Current Rating	26.1
Discharging time	10ms (Typical)	Energy	1～6 Units
External Modules (Optional)	WiFi (Optional)	Ingress Protection	IP65
Input AC Voltage Range	(170Vac ~ 280Vac) ±2%	Max AC Input Voltage	500Vdc / 500Vdc
Max PV Input Current	22Adc + 22Adc	Max. AC Input/Output Apparent Power (VA)	6000W
Max. Bypass Overload Current	40Aac	Max. Parallel Capacity	1～6 Units
Max. PV short circuit current	135Adc	Maximum input voltage	220Vac / 230Vac
Noise	<55dB	Number of Cells	2
Protection	Degree,IP65	PV Start-up Voltage	60Vdc / 60Vdc
Rated AC Input/Output Active Power (W)	6000W	SKU	SM-HYB-SRN-01224
Start Voltage	48

Notice a wrong or outdated datasheet? Help us fix it.

Freelancers

Verified

Verified Solar Installers for this Product

View All

Kizito Vincent

I am a technician dealing in hydro and solar power, security systems, networking...

Kampala

IT Support Electrical Repairs Battery Wiring

View Profile

Osama Mathew

Solar | water pumps | Backup systems

Kampala

Lighting Troubleshooting CAD Design

View Profile

Okitwi Francis

Certified solar technician based in Tororo

Tororo

Solar Installation Inverter Setup Solar System Design

View Profile

WASSWA Emmy

Solar installer

Bugiri

Electrical Repairs Solar System Design Electrical Installation

View Profile

ANITA

Solar system installation

Kampala

Electrical Repairs Appliance Repair Solar Installation

View Profile

Francis Ekapuloni

Professional Solar Expert

Kampala

Solar Installation Solar Energy Audits

View Profile

Tamale Muhamad

Expert Solar Systems Designer & Installer – Powering Your Future!

Kampala

Solar Installation Solar Panel Cleaning Solar Water heater

View Profile

ETIENE MAATE

ElectroMechanical Engineer

Kampala

Project Management Solar Water heater Solar System Design

View Profile

Kibozeeyi John

Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands

Kampala

Solar Installation Solar Panel Cleaning Solar System Design

View Profile

Ndawula Muhamadi

Hybrid Solar Wholesale Supplier & Installer Expert

Masaka

Solar Installation Solar System Design Solar Energy Audits

View Profile

Swipe/scroll to see more →

Description

Specs & details

Overview

SRNE AEP4860S135-H is a 6kW 500V hybrid inverter for Uganda power conditions. It supports up to 6kW PV input and is suitable for Home backup power, Small business solar, Off-grid residential where dependable backup and solar charging are required. Buyers should also confirm the datasheet limits, warranty coverage, seller authenticity, and installer compatibility before ordering

About this item

RATED OUTPUT POWER: 6000W continuous output with 2x peak power for 10 seconds, suitable for running lights, fridges, TVs, and small machinery.
DUAL MPPT TRACKERS: Two independent MPPT channels each handle up to 6000W PV input (total 12kW) with a 65-450VDC operating range and 99.9% tracking efficiency.
BATTERY FLEXIBILITY: Compatible with lithium-ion, lead-acid, or user-defined batteries at 48V nominal, with a 40-60Vdc operating range and up to 135A charging/discharging current.
PARALLEL CAPABILITY: Up to 6 units can be paralleled to increase total output power, ideal for scaling from home backup to larger commercial systems.
IP65 PROTECTION: Dust-tight and protected against low-pressure water jets, allowing installation outdoors or in semi-exposed areas without additional enclosures.
COMMUNICATION INTERFACES: Built-in RS485, CAN, USB, and dry contact ports for monitoring, battery communication, and remote control; optional WiFi module available.

What's Included

SRNE AEP4860S135-H Hybrid Inverter
User manual
Mounting brackets
Communication cable (RS485)
Warranty card (5 years)

Applications

Home backup power during grid outages
Small business solar systems for shops and offices
Off-grid residential solar installations
Hybrid solar systems with battery storage
Backup for critical loads such as fridges, lights, and routers

Product FAQs

SRNE AEP4860S135-H is a 6kW hybrid inverter in Uganda. Key specs include battery voltage range 48V, max PV input voltage 500Vdc / 500Vdc, max PV input power 6kW, rated AC output 6kW, communication RS485/CAN, monitoring WiFi Monitoring, warranty 5 years.

Browse live offers

For SRNE AEP4860S135-H, use MPPT/operating voltage range 500Vdc / 500Vdc, max PV input voltage 500Vdc / 500Vdc, and max PV input power 6kW when designing strings.

Browse live offers Find technicians

SRNE AEP4860S135-H allows up to 6kW PV input power. Use max PV input voltage 500Vdc / 500Vdc for string sizing checks.

Browse live offers

SRNE AEP4860S135-H is built for 48V battery systems. The battery voltage range is 48V, with maximum charging current the listed charging current and maximum discharging current 135Adc.

Browse live offers

SRNE AEP4860S135-H has a rated AC output of 6kW. It operates with grid frequency the listed grid frequency and AC voltage range 230Vac (200/208/220/230/240Vac Settable). If needed, use (170Vac ~ 280Vac) ±2% for compatibility checks.

Browse live offers Request quotes Find technicians

Compare verified seller pricing, warranty terms, authenticity, and installer support for SRNE AEP4860S135-H. Also match battery voltage range, MPPT layout, max PV input voltage, communication, monitoring, AC output, and warranty against the datasheet.
