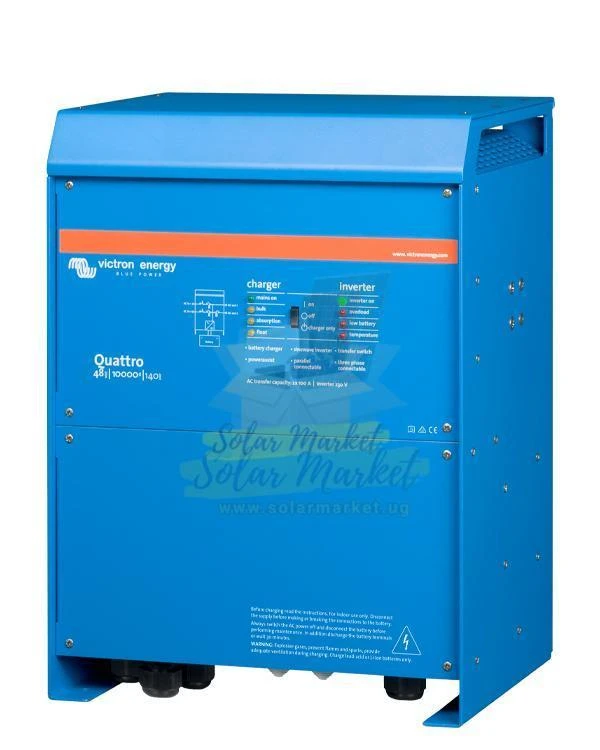

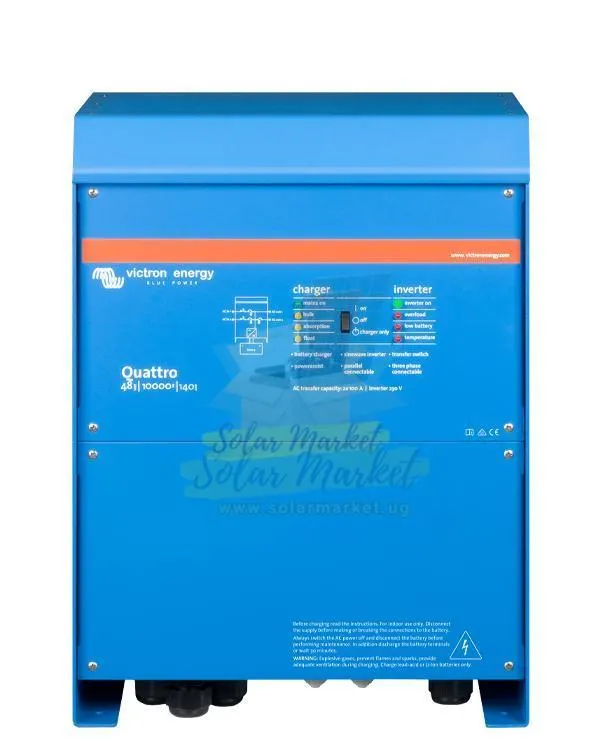

Victron 48/10000/140-100/100 Inverter Charger 48V Three Phase for Large residential, Commercial solar, Hybrid
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
victron · Inverter Chargers

Victron 48/10000/140-100/100 Inverter Charger 48V Three Phase for Large residential, Commercial solar, Hybrid

UGX10,776,480
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX215,530Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · 3 In stock
UGX10,776,480
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
SRNE 12kW Hybrid Inverter for Three-Phase Commercial Backup 48V 230/400Vac Dual MPPT 800Vdc 6-Parallel RS485/CAN (ASP48120H3) SRNE 12kW Hybrid Inverter for Three-Phase Commercial Backup 48V 230/40... UGX8,045,400 BLISON ENERGY SRNE 12kW 24kVA Max Surge Hybrid Inverter for Home and Small Business Backup 48Vdc 230Vac Single-Phase Dual MPPT 125-425Vdc Parallel up to 6 Units IP20 Indoor (ASP48120S200-H) SRNE 12kW 24kVA Max Surge Hybrid Inverter for Home and Small Business... UGX8,946,718 BLISON ENERGY 100kW Three Phase Solar Hybrid Inverter 100kW Three Phase Solar Hybrid Inverter UGX15,226,640 Entelechy Solar Solutions 110Kw132Kva Solar Hybrid Inverter 110Kw132Kva Solar Hybrid Inverter UGX15,429,655 Entelechy Solar Solutions
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 48 V
Solar Panels
UGX429,000
Battery
UGX2,862,000
Cables, mounting and protection
UGX7,970
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Victron Model 48/10000/140-100/100
Rated Power 10000 VA Max Charging Current 140 A
Nominal Output Voltage 230 VAC ± 2% Nominal Output Frequency 50 Hz ± 0.1%
Nominal Voltage 187 - 250 V Surge Power 20000 W
Product Dimensions 444 x 328 x 240 mm Product Weight 51 KG
Communication For parallel and three phase operation, remote monitoring and system integration Efficiency 96%
Operating Temperature -20 to +60 ˚C Absorption Voltage 57.6 V
Auxiliary output 50 A Battery Type connection,Four M8 bolts (2 plus and 2 minus connections)
Battery-connection Four M8 bolts (2 plus and 2 minus connections) Continuous power at 25°C / 40°C 8000 W
Current Rating 140 A Enclosure Material & Colour aluminium (blue RAL 5012)
Float Charge Voltage 55.2 V General purpose analogue/digital in port 2x
Humidity condensing),max. 95% Humidity (non-condensing) max. 95%
Ingress Protection category,"IP20, pollution degree 2, OVC III" Integrated Transfer switch Yes
Material & Colour aluminium (blue RAL 5012) Max PV Input Current 235 A
Maximum input voltage 38 – 66 V Maximum output current 37 A
Output Cables 50 A Peak Current (15s) 235
Permissible Altitude 2000 M Power Factor ±0.8
PowerControl / PowerAssist Yes Programmable Relay 3x
Protection IP20, pollution degree 2, OVC III Remote On/Off Yes
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 Safety Standard EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
SKU SM-INV-VIC-00287 Storage Temperature 52.8°C
Zero load power (W) 60 W Zero load power in AES mode (W) 40 W

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

The Victron 48/10000/140-100/100 Inverter Charger delivers 10kVA continuous output at 48V, engineered for low voltage (LV) three phase installations. Featuring dual AC inputs, integrated transfer switch, and PowerAssist functionality, this unit ensures stable power supply and seamless integration with solar, generator, or grid sources. Its high efficiency and programmable relays make it adaptable for complex energy management needs. The inverter charger is equipped with comprehensive communication ports for parallel operation, remote monitoring, and system integration, supporting reliable performance in demanding Ugandan environments.

About this item

  • SYSTEM TOPOLOGY: Three Phase architecture for compliant solar system design.
  • POWERASSIST TECHNOLOGY: Actively manages and supplements generator or grid power to prevent overloads.
  • DUAL AC INPUTS: Supports two independent AC sources with automatic transfer switching for uninterrupted supply.
  • HIGH CONTINUOUS OUTPUT: Provides up to 10kVA (8kW) continuous power at 25°C, suitable for large residential or commercial loads.
  • THREE PHASE COMPATIBILITY: Designed for integration into three phase LV systems, supporting parallel operation.
  • ADVANCED CHARGING: Delivers up to 140A battery charging current with temperature sensing for optimal battery health.

Applications

  • Large residential solar backup systems
  • Commercial solar installations
  • Hybrid solar-generator-grid setups
  • Telecom and industrial power solutions
  • Off-grid and remote site electrification
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What voltage class and phase does this inverter charger support?
This model is designed for low voltage (LV) 48V battery systems and supports three phase AC output.
Can the Victron 48/10000/140-100/100 operate in parallel with other units?
Yes, it supports parallel and three phase operation using the VE.Bus communication port.
Is this inverter charger suitable for off-grid applications in Uganda?
Yes, it is suitable for both off-grid and hybrid systems, providing reliable power in areas with unstable grid supply.
What is the maximum continuous output power?
The inverter charger provides up to 10kVA (8kW) continuous output at 25°C.
Does the unit include a transfer switch?
Yes, it features an integrated transfer switch for seamless switching between AC sources.
How does PowerAssist benefit my installation?
PowerAssist helps prevent overloads by supplementing generator or grid power with battery power when needed.
Is remote monitoring available?
Yes, remote monitoring and system integration are supported via VE.Bus and general-purpose communication ports.
