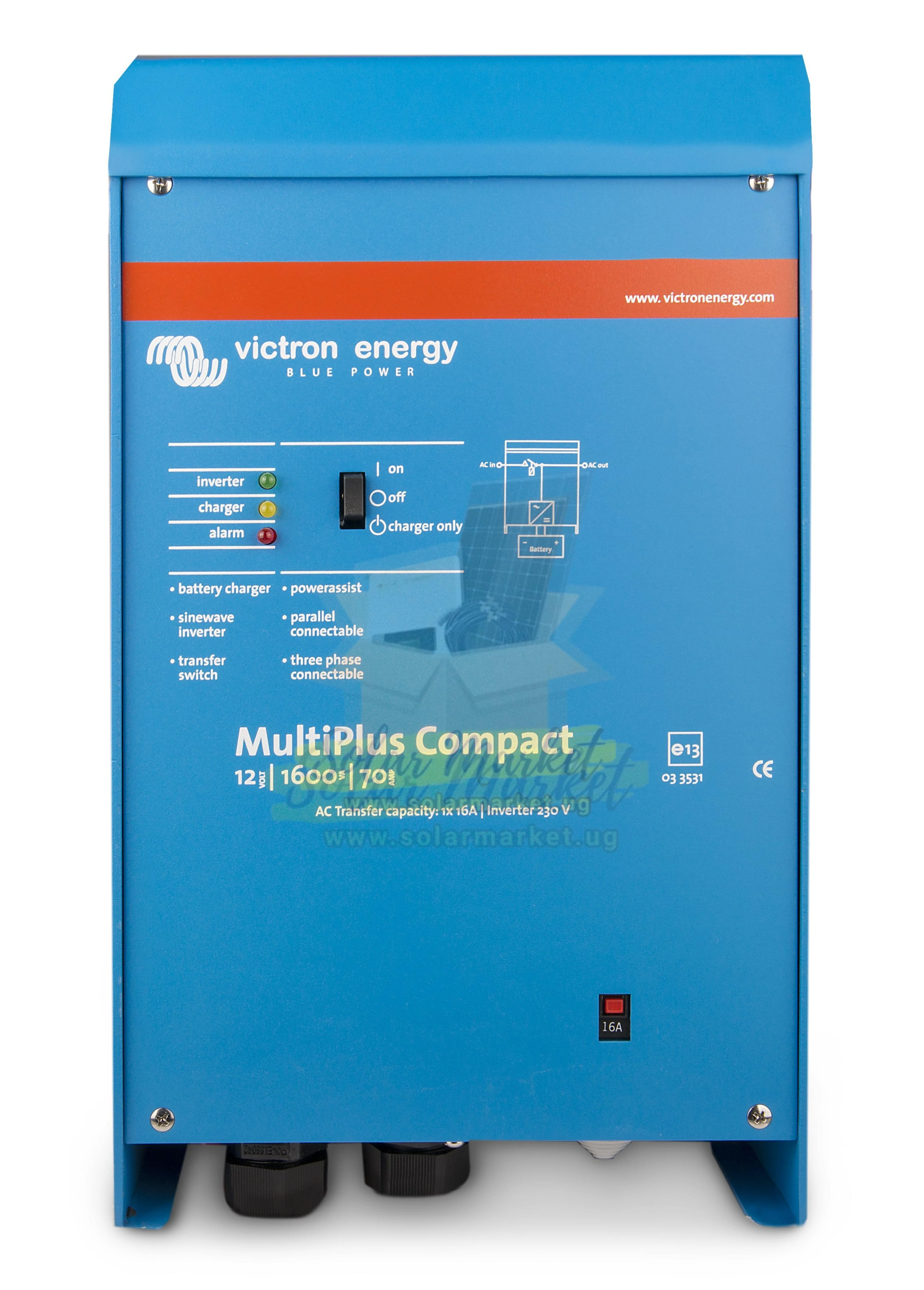

Victron Multiplus 12/1600/70 Inverter Charger 12V Single Phase for Residential solar, Off-grid rural, Commercial backup
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
victron · Inverter Chargers

Victron Multiplus 12/1600/70 Inverter Charger 12V Single Phase for Residential solar, Off-grid rural, Commercial backup

UGX3,660,657
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX73,213Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · 3 In stock
UGX3,660,657
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
Sukam 11kW Hybrid Inverter for Home and Small Business Backup 48V 150A MPPT 90-450VDC Dual MPPT Parallel up to 6 Units RS232 USB WiFi (FX1100-48H) Sukam 11kW Hybrid Inverter for Home and Small Business Backup 48V 150A... UGX4,028,000 Auto Solutions plus ltd Felicity 12kVA 12000W Hybrid Inverter for Home and Small Business Backup 48V 240A MPPT 90-450VDC Parallel up to 6 Units Single/Three Phase WiFi Communication (IVEM12048-II) Felicity 12kVA 12000W Hybrid Inverter for Home and Small Business Back... UGX3,353,840 Masrcorp Solar Uganda Cosuper 5kW 48V Solar Hybrid Inverter Pure Sine Wave MPPT 60A Parallel 3 Phase Support Spe5000 Cosuper 5kW 48V Solar Hybrid Inverter Pure Sine Wave MPPT 60A Parallel... UGX4,081,000 Baseline Africa Uganda Sukam 10.2kVA/8.2kW Hybrid Inverter for Home and Small Business Backup 48VDC 230VAC Output 160A MPPT LCD and App Monitoring (FX10200-48H) Sukam 10.2kVA/8.2kW Hybrid Inverter for Home and Small Business Backup... UGX3,604,000 Auto Solutions plus ltd
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 12 V
Solar Panels
UGX429,000
Battery
UGX1,019,520
Cables, mounting and protection
UGX190,575
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Victron Model Multiplus 12/1600/70
Rated Power 1600 VA Max Charging Current 70 / 40 A
Nominal Output Voltage 230 VAC ± 2 % Nominal Output Frequency 50 Hz ± 0,1 %
Nominal Voltage 187 -250 V Surge Power 3000 W
Product Dimensions 375 x 214 x 110 mm Product Weight 10 KG
Communication For parallel and three phase operation, remote monitoring and system integration Efficiency 93 / 94 / 95%
Operating Temperature -40 to +65 °C (fan assisted cooling) Absorption Voltage 14,4 / 28,8 / 57,6 V
Auxiliary output Yes (16A) Battery Type connection,Four M8 bolts (2 plus and 2 minus connections)
Battery-connection Four M8 bolts (2 plus and 2 minus connections) Continuous power at 25°C / 40°C 1300 W
Current Rating 70 A Enclosure Material & Colour aluminium (blue RAL 5012)
Float Charge Voltage 13,8 / 27,6 / 55,2 V Humidity condensing),max 95 %
Humidity (non-condensing) max 95 % Ingress Protection a - g
Integrated Transfer switch 16 A Material & Colour aluminium (blue RAL 5012)
Max AC Input Voltage Input voltage range: 187 -250 V Input frequency: 50/60 Hz Cos Φ >0.8 Max PV Input Current 250 / 125 / 65 A
Maximum input voltage 9,5 – 17 V Maximum output current 11 A
Permissible Altitude 2000 m. Power Factor ±0.8
PowerControl / PowerAssist Yes Programmable Relay Yes
Protection a - g Remote On/Off Yes
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 Safety Standard EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
SKU SM-SOL-VIC-00282 Storage Temperature Being checked
Transfer Time 16 A Zero load power (W) W),8 / 10
Zero load power in AES mode (W) W),5 / 8

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

Single Phase configuration. The Victron Multiplus 12/1600/70 Inverter Charger delivers reliable 12V low voltage (LV) single phase power conversion, suitable for both off-grid and backup energy systems in Uganda. With a continuous output of 1600VA (1.6kVA) and advanced features such as PowerAssist and PowerControl, this unit supports stable operation even under variable load conditions. The integrated transfer switch (16A) allows for automatic switching between grid and inverter sources, while the VE.Bus communication port enables parallel, three-phase operation, and remote monitoring. The device is engineered for high efficiency (up to 95%) and includes comprehensive protection features, programmable relay, and a battery temperature sensor for optimal battery management. Its robust aluminium enclosure and wide operating temperature range make it suitable for diverse Ugandan environments, including rural and urban installations.

About this item

  • SYSTEM TOPOLOGY: Single Phase architecture for compliant solar system design.
  • POWERASSIST TECHNOLOGY: Supports seamless transition and boosts power during peak demand to prevent overloads.
  • POWERCONTROL FUNCTION: Manages input current to avoid tripping of limited AC sources such as generators or weak grids.
  • PURE SINE WAVE OUTPUT: Delivers stable 230V AC ±2% single phase output for sensitive electronics and appliances.
  • VE.BUS COMMUNICATION: Enables parallel and three-phase operation, remote monitoring, and system integration.
  • INTEGRATED TRANSFER SWITCH: 16A automatic switching between grid and inverter for uninterrupted power supply.

Applications

  • Residential solar backup systems
  • Off-grid rural electrification
  • Commercial backup power
  • Mobile and road vehicle power systems
  • Telecom and remote site installations
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What is the voltage class and phase of the Victron Multiplus 12/1600/70?
This inverter charger operates at low voltage (12V) and provides single phase 230V AC output.
Can the unit be used for both off-grid and backup applications?
Yes, it is suitable for off-grid, backup, and hybrid systems, supporting seamless switching between power sources.
Does the inverter charger support remote monitoring?
Yes, the VE.Bus communication port enables remote monitoring and system integration.
What is the maximum continuous output power?
The unit delivers up to 1600VA (1.6kVA) continuous output at 25°C.
Is the device compatible with solar PV systems?
Yes, it can be integrated with solar charge controllers and PV systems for hybrid energy setups.
What protection features are included?
The inverter charger includes multiple protection features such as overload, short circuit, and battery temperature monitoring.
What type of batteries can be used?
It is compatible with 12V battery banks, including lead-acid and lithium types, as specified in the datasheet.
