Felicity T-REX-10KLP3G01 Three Phase Hybrid Invert... VS Felicity IVPM10048 Hybrid Inverter 10kVA 48V, 8000...
VS
A

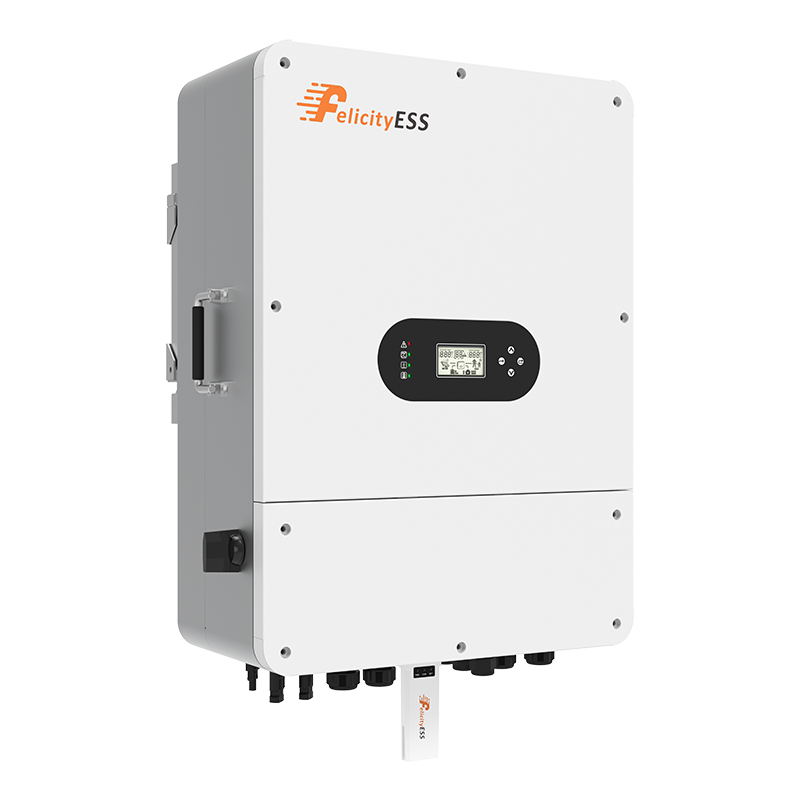

Felicity T-REX-10KLP3G01 Three Phase Hybrid Invert...
Felicity
UGX5,566,000
Offers: 2
View Product
A/B
B

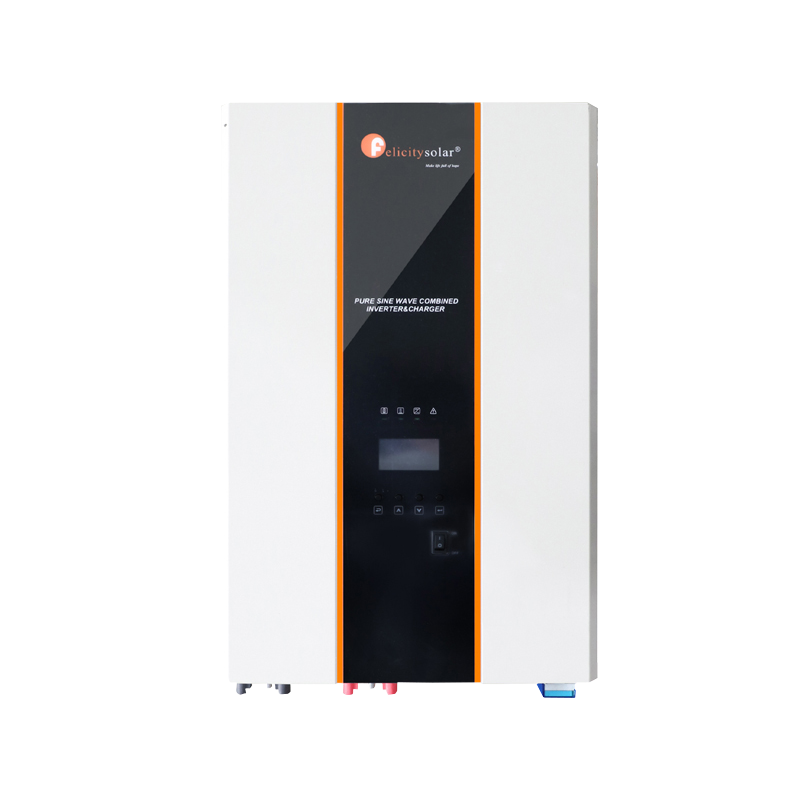

Felicity IVPM10048 Hybrid Inverter 10kVA 48V, 8000...
Felicity
UGX3,905,000
Offers: 1
View Product
Specifications Comparison
Spec keys are preserved from both products. We never remove a key just because the other product has no value yet.
| Feature | Felicity T-REX-10KLP3G01 Three Phase Hybrid Invert... | Felicity IVPM10048 Hybrid Inverter 10kVA 48V, 8000... |
|---|---|---|
| Overview | ||
| Model | T‑REX‑10KLP3G01 | IVPM10048 |
| Brand | Felicity | Felicity |
| Output | ||
| Rated Power | 10000 W | 10000 VA W |
| AC Output Rated Current | 14.5 A | - |
| Nominal Output Voltage | L1/L2/L3/N/PE, 230/400 Vac | - |
| Power Factor | >0.99 | - |
| Nominal Output Frequency | 50/60 Hz | - |
| Displacement Power Factor | 0.8 (Leading) to 0.8 (Lagging) | - |
| THDi | <3% | - |
| Battery | ||
| Nominal Voltage | 40V–60V | - |
| Chemistry | Li-ion / Lead-acid | - |
| Solar Input | ||
| Number of MPPT Trackers | 2 / 1 | 1 |
| MPPT Voltage Range | 160V–900 V | 65~145 VDC V |
| Max PV Open Circuit Voltage | 900 V | 170 VDC V |
| Max PV Input Power | 13000 W (6500 W for Single PV) W | 6600 W |
| Start Voltage | 180V | - |
| AC Input | ||
| Nominal DC Input Voltage | 2 V | - |
| Grid Regulation | VDE-AR-N 4105 | - |
| Anti-Islanding Protection | Integrated | - |
| Max AC Input Voltage | L1/L2/L3/N/PE, 230/400 Vac | - |
| Max. Continuous AC Passthrough | 30 A | - |
| Electrical | ||
| Peak Current (15s) | - | 80 |
| Max Charging Current | 200 A | 200 A |
| Max. Shorted Current | 18 A / 18 A | - |
| Connectivity | ||
| Built-in WiFi | - | No |
| Display | LCD + LED | - |
| Communication | RS232 / RS485 | - |
| Monitor Module | WiFi / GPRS | - |
| Protection | ||
| Output Over Current Protection | Integrated | - |
| Insulation Resistor Detection | Integrated | - |
| Safety Regulation IEC 62109-1 / | IEC 62109-1 / -2 | - |
| Output Short Circuit Protection | Integrated | - |
| Ingress Protection | IP65 | - |
| Physical | ||
| Cooling Concept | Smart cooling | - |
| Operating Temperature | -25°C–60°C, >45°C Derating C | - |
| Package Dimensions | 792 × 597 × 351 mm | (MM), 670*470*355 mm |
| Product Dimensions | 655 × 475 × 266 mm | 670*470*355 mm |
| Gross Weight | 47.1 kg | - |
| Installation Style | Wall-mounted | - |
| Product Weight | 38.9 kg | - |
| Compatibility | ||
| Brand Compatibility | Official: , | Official: , |
| Other Specs | ||
| Warranty | 10 Years | 1 Years |
Overview
Model
T‑REX‑10KLP3G01
IVPM10048
Brand
Felicity
Felicity
Output
Rated Power
10000 W
10000 VA W
AC Output Rated Current
14.5 A
-
Nominal Output Voltage
L1/L2/L3/N/PE, 230/400 Vac
-
Power Factor
>0.99
-
Nominal Output Frequency
50/60 Hz
-
Displacement Power Factor
0.8 (Leading) to 0.8 (Lagging)
-
THDi
<3%
-
Battery
Nominal Voltage
40V–60V
-
Chemistry
Li-ion / Lead-acid
-
Solar Input
Number of MPPT Trackers
2 / 1
1
MPPT Voltage Range
160V–900 V
65~145 VDC V
Max PV Open Circuit Voltage
900 V
170 VDC V
Max PV Input Power
13000 W (6500 W for Single PV) W
6600 W
Start Voltage
180V
-
AC Input
Nominal DC Input Voltage
2 V
-
Grid Regulation
VDE-AR-N 4105
-
Anti-Islanding Protection
Integrated
-
Max AC Input Voltage
L1/L2/L3/N/PE, 230/400 Vac
-
Max. Continuous AC Passthrough
30 A
-
Electrical
Peak Current (15s)
-
80
Max Charging Current
200 A
200 A
Max. Shorted Current
18 A / 18 A
-
Connectivity
Built-in WiFi
-
No
Display
LCD + LED
-
Communication
RS232 / RS485
-
Monitor Module
WiFi / GPRS
-
Protection
Output Over Current Protection
Integrated
-
Insulation Resistor Detection
Integrated
-
Safety Regulation IEC 62109-1 /
IEC 62109-1 / -2
-
Output Short Circuit Protection
Integrated
-
Ingress Protection
IP65
-
Physical
Cooling Concept
Smart cooling
-
Operating Temperature
-25°C–60°C, >45°C Derating C
-
Package Dimensions
792 × 597 × 351 mm
(MM), 670*470*355 mm
Product Dimensions
655 × 475 × 266 mm
670*470*355 mm
Gross Weight
47.1 kg
-
Installation Style
Wall-mounted
-
Product Weight
38.9 kg
-
Compatibility
Brand Compatibility
Official: ,
Official: ,
Other Specs
Warranty
10 Years
1 Years
Frequently Asked Questions
Key differences from the current specs are: Max PV Open Circuit Voltage (900 V vs 170 VDC V); MPPT Voltage Range (160V–900 V vs 65~145 VDC V); Model (T‑REX‑10KLP3G01 vs IVPM10048).
Felicity T-REX-10KLP3G01 Three Phase Hybrid Inverter 10kVA, 40V-60V, 2 MPPTs, WiFi/GPRS, RS232/RS485, IP65, for Residential Solar, Commercial, Mini-grid and Rural currently leads on more weighted core specs (80/100 vs 20/100).
Current price snapshot on SolarMarket Uganda is Felicity T-REX-10KLP3G01 Three Phase Hybrid Inverter 10kVA, 40V-60V, 2 MPPTs, WiFi/GPRS, RS232/RS485, IP65, for Residential Solar, Commercial, Mini-grid and Rural: UGX 5,566,000, Felicity IVPM10048 Hybrid Inverter 10kVA 48V, 8000W Output, 6600W PV, 65-145Vdc, for Resident
Yes. You can request quotations from verified sellers using the RFQ flow: https://www.solarmarket.ug/rfq/create
