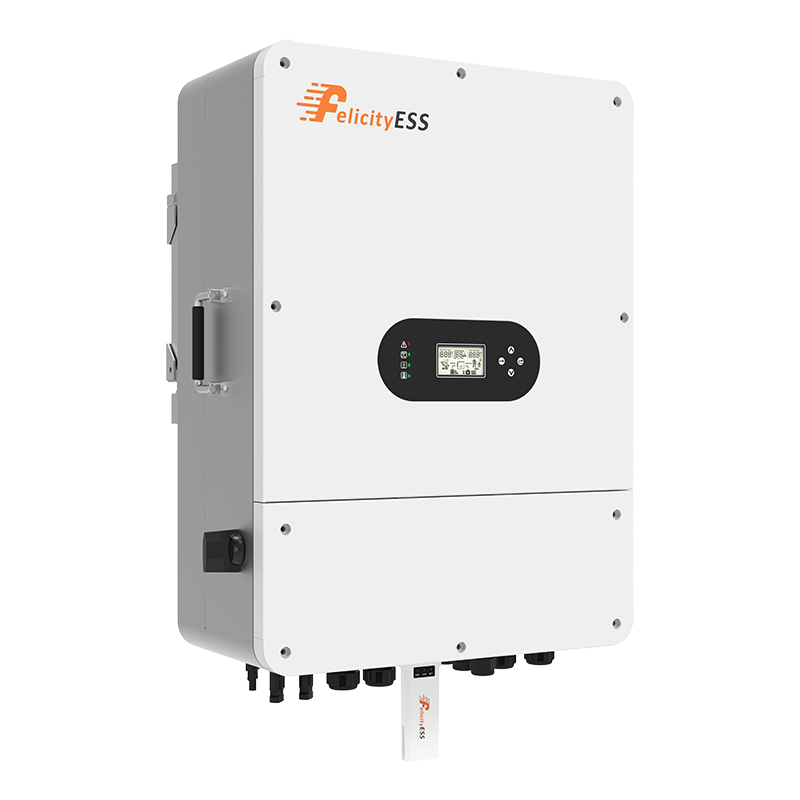

Felicity T-REX-10KLP3G01 Three Phase Hybrid Invert...
Felicity
UGX5,566,000
Offers: 2
View Product
A/B
Specifications Comparison
Spec keys are preserved from both products. We never remove a key just because the other product has no value yet.
| Feature | Felicity T-REX-10KLP3G01 Three Phase Hybrid Invert... | Felicity IVEM12048-II Hybrid Inverter 12kVA 48V, 2 |
|---|---|---|
| Overview | ||
| Model | T‑REX‑10KLP3G01 | IVEM12048-II |
| Brand | Felicity | Felicity |
| Output | ||
| Nominal Output Frequency | 50/60 Hz | 50±0.3 Hz / 60 Hz±0.3 Hz (Adjustable) Hz |
| Nominal Output Voltage | L1/L2/L3/N/PE, 230/400 Vac | 230 Vac+5% Vac |
| Rated Power | 10000 W | 12000 W |
| AC Output Rated Current | 14.5 A | - |
| Power Factor | >0.99 | - |
| Waveform | - | Pure Sine Wave |
| Displacement Power Factor | 0.8 (Leading) to 0.8 (Lagging) | - |
| THDi | <3% | - |
| Electrical | ||
| Max Charging Current | 200 A | 240 A |
| Max. Shorted Current | 18 A / 18 A | - |
| Battery | ||
| Nominal Voltage | 40V–60V | 48 V |
| Chemistry | Li-ion / Lead-acid | - |
| Pass Through Without Battery | - | Yes |
| Solar Input | ||
| Max PV Input Current | - | 27 A x 2 (MAX 54 A) A |
| MPPT Voltage Range | 160V–900 V | 90V-450 V |
| Max PV Open Circuit Voltage | 900 V | 500 V |
| Max PV Input Power | 13000 W (6500 W for Single PV) W | 15000 W (7500 W for Single PV) W |
| Number of MPPT Trackers | 2 / 1 | 2 |
| Start Voltage | 180V | 100V |
| PV Start-up Voltage | - | 100 V |
| AC Input | ||
| Input AC Voltage Range | - | 90-280 Vac |
| Max. Continuous AC Passthrough | 30 A | - |
| Grid Regulation | VDE-AR-N 4105 | - |
| Max AC Input Voltage | L1/L2/L3/N/PE, 230/400 Vac | 280 Vac |
| Nominal DC Input Voltage | 2 V | 2 V |
| Parallel Capability | - | Yes, Up to 6 Units |
| Anti-Islanding Protection | Integrated | - |
| Connectivity | ||
| Display | LCD + LED | - |
| Communication | RS232 / RS485 | CAN/RS148 |
| Monitor Module | WiFi / GPRS | - |
| Protection | ||
| Insulation Resistor Detection | Integrated | - |
| Certification | - | CE-EMC, IEC 62109-1/2 |
| Output Over Current Protection | Integrated | - |
| Safety Regulation IEC 62109-1 / | IEC 62109-1 / -2 | - |
| Output Short Circuit Protection | Integrated | - |
| Ingress Protection | IP65 | - |
| Physical | ||
| Installation Style | Wall-mounted | - |
| Package Dimensions | 792 × 597 × 351 mm | - |
| Product Dimensions | 655 × 475 × 266 mm | 634*476*141 mm |
| Product Weight | 38.9 kg | 26.8 kg |
| Operating Temperature | -25°C–60°C, >45°C Derating C | -10°C~50° C |
| Cooling Concept | Smart cooling | - |
| Gross Weight | 47.1 kg | - |
| Compatibility | ||
| Brand Compatibility | Not specified | Any Brand |
| Other Specs | ||
| Warranty | 10 Years | - |
Overview
Model
T‑REX‑10KLP3G01
IVEM12048-II
Brand
Felicity
Felicity
Output
Nominal Output Frequency
50/60 Hz
50±0.3 Hz / 60 Hz±0.3 Hz (Adjustable) Hz
Nominal Output Voltage
L1/L2/L3/N/PE, 230/400 Vac
230 Vac+5% Vac
Rated Power
10000 W
12000 W
AC Output Rated Current
14.5 A
-
Power Factor
>0.99
-
Waveform
-
Pure Sine Wave
Displacement Power Factor
0.8 (Leading) to 0.8 (Lagging)
-
THDi
<3%
-
Electrical
Max Charging Current
200 A
240 A
Max. Shorted Current
18 A / 18 A
-
Battery
Nominal Voltage
40V–60V
48 V
Chemistry
Li-ion / Lead-acid
-
Pass Through Without Battery
-
Yes
Solar Input
Max PV Input Current
-
27 A x 2 (MAX 54 A) A
MPPT Voltage Range
160V–900 V
90V-450 V
Max PV Open Circuit Voltage
900 V
500 V
Max PV Input Power
13000 W (6500 W for Single PV) W
15000 W (7500 W for Single PV) W
Number of MPPT Trackers
2 / 1
2
Start Voltage
180V
100V
PV Start-up Voltage
-
100 V
AC Input
Input AC Voltage Range
-
90-280 Vac
Max. Continuous AC Passthrough
30 A
-
Grid Regulation
VDE-AR-N 4105
-
Max AC Input Voltage
L1/L2/L3/N/PE, 230/400 Vac
280 Vac
Nominal DC Input Voltage
2 V
2 V
Parallel Capability
-
Yes, Up to 6 Units
Anti-Islanding Protection
Integrated
-
Connectivity
Display
LCD + LED
-
Communication
RS232 / RS485
CAN/RS148
Monitor Module
WiFi / GPRS
-
Protection
Insulation Resistor Detection
Integrated
-
Certification
-
CE-EMC, IEC 62109-1/2
Output Over Current Protection
Integrated
-
Safety Regulation IEC 62109-1 /
IEC 62109-1 / -2
-
Output Short Circuit Protection
Integrated
-
Ingress Protection
IP65
-
Physical
Installation Style
Wall-mounted
-
Package Dimensions
792 × 597 × 351 mm
-
Product Dimensions
655 × 475 × 266 mm
634*476*141 mm
Product Weight
38.9 kg
26.8 kg
Operating Temperature
-25°C–60°C, >45°C Derating C
-10°C~50° C
Cooling Concept
Smart cooling
-
Gross Weight
47.1 kg
-
Compatibility
Brand Compatibility
Not specified
Any Brand
Other Specs
Warranty
10 Years
-
Frequently Asked Questions
Key differences from the current specs are: Model (T‑REX‑10KLP3G01 vs IVEM12048-II); Max PV Open Circuit Voltage (900 V vs 500 V); MPPT Voltage Range (160V–900 V vs 90V-450 V).
Felicity IVEM12048-II Hybrid Inverter 12kVA 48V, 2 MPPTs, 500V PV, Pure Sine Wave, Built-in WiFi, CAN/RS485, for Residential Solar, Small to Medium Systems and Off-grid currently leads on more weighted core specs (61/100 vs 39/100).
Current price snapshot on SolarMarket Uganda is Felicity T-REX-10KLP3G01 Three Phase Hybrid Inverter 10kVA, 40V-60V, 2 MPPTs, WiFi/GPRS, RS232/RS485, IP65, for Residential Solar, Commercial, Mini-grid and Rural: UGX 5,566,000, Felicity IVEM12048-II Hybrid Inverter 12kVA 48V, 2 MPPTs, 500V PV, Pure Sine Wave, Built-in W
