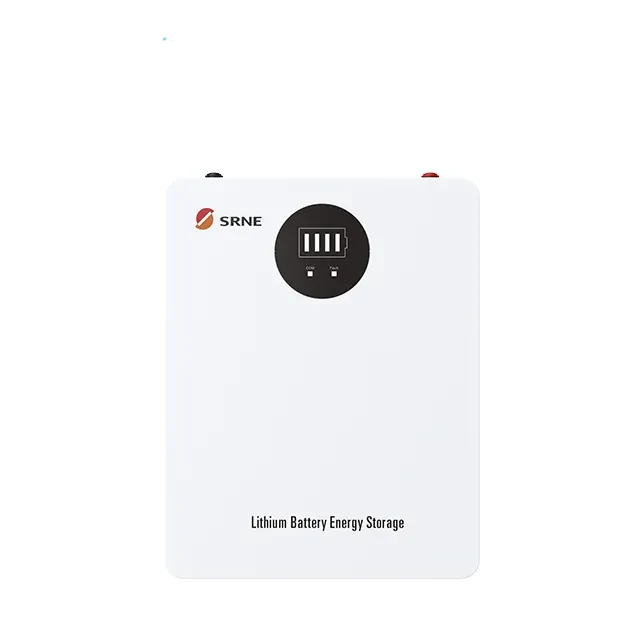

The EOS02B 2.56kWh 100Ah 25.6V LiFePO4 Lithium Battery is a high-performance deep-cycle battery designed for solar energy storage, off-grid power systems, and backup applications. Built with Lithium Iron Phosphate (LFP) technology, it delivers exceptional efficiency, long lifespan, and fast charging capabilities.

With a 6000+ cycle life, parallel connection support, and smart BMS integration, this battery is ideal for home solar storage, commercial backup power, and renewable energy solutions.

Key Features and Benefits

High-Efficiency 2.56kWh Energy Storage

• Stores 100Ah at 25.6V, providing stable power for inverters, solar systems, and backup power applications.

Long 6000+ Cycle Life for Maximum Durability

• Designed to last with up to 6000 cycles at 80% Depth of Discharge (DOD), significantly outlasting traditional lead-acid batteries.

Fast and Reliable Charging

• Maximum charging current of 100A reduces charging time for faster power availability.
• Peak charging current of 120A for 3 seconds, ensuring rapid energy replenishment.

Safe and Stable LiFePO4 Battery Technology

• Built-in Battery Management System (BMS) provides overcharge, over-discharge, and short-circuit protection.
• Thermal stability ensures safe and consistent performance in all conditions.

Expandable and Scalable Energy Storage

• Supports parallel connection of up to 4 units, allowing for larger energy storage capacity.

Smart Monitoring and Communication

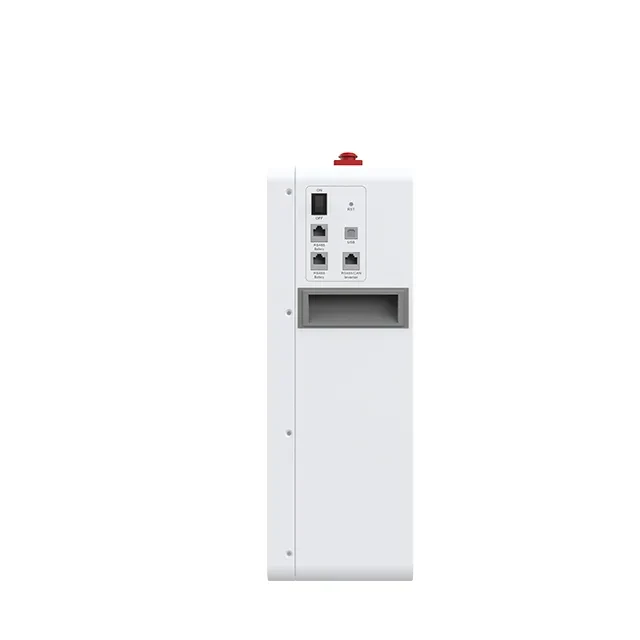

• Compatible with CAN, RS485, and USB for real-time monitoring and integration with solar inverters.
• Optional Bluetooth and WiFi connectivity for remote system control.

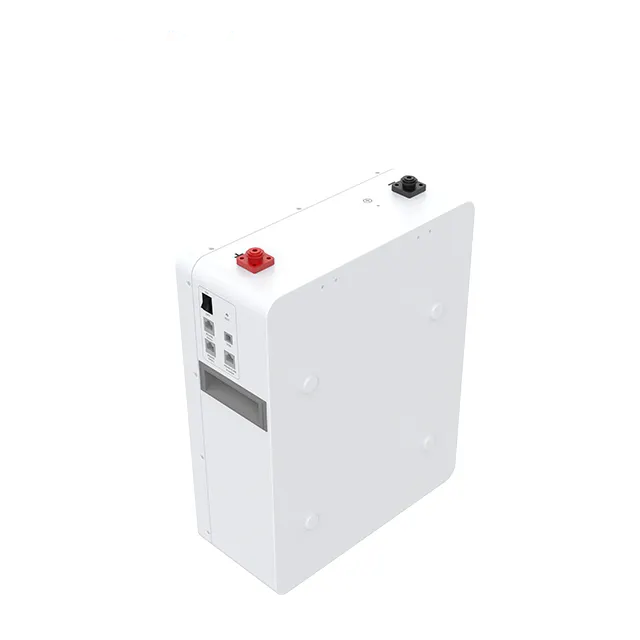

Compact and Lightweight Design for Easy Installation

• Weighs only 23kg, making it easier to handle than traditional deep-cycle batteries.
• Compact size: 420 × 330 × 148mm, suitable for a wide range of installation setups.

Ideal Applications

• Solar Energy Storage Systems for home and business use
• Off-grid power solutions and backup power storage
• RV, marine, and mobile solar applications
• Industrial and telecommunications energy storage
• Solar pumping systems for agriculture and commercial use

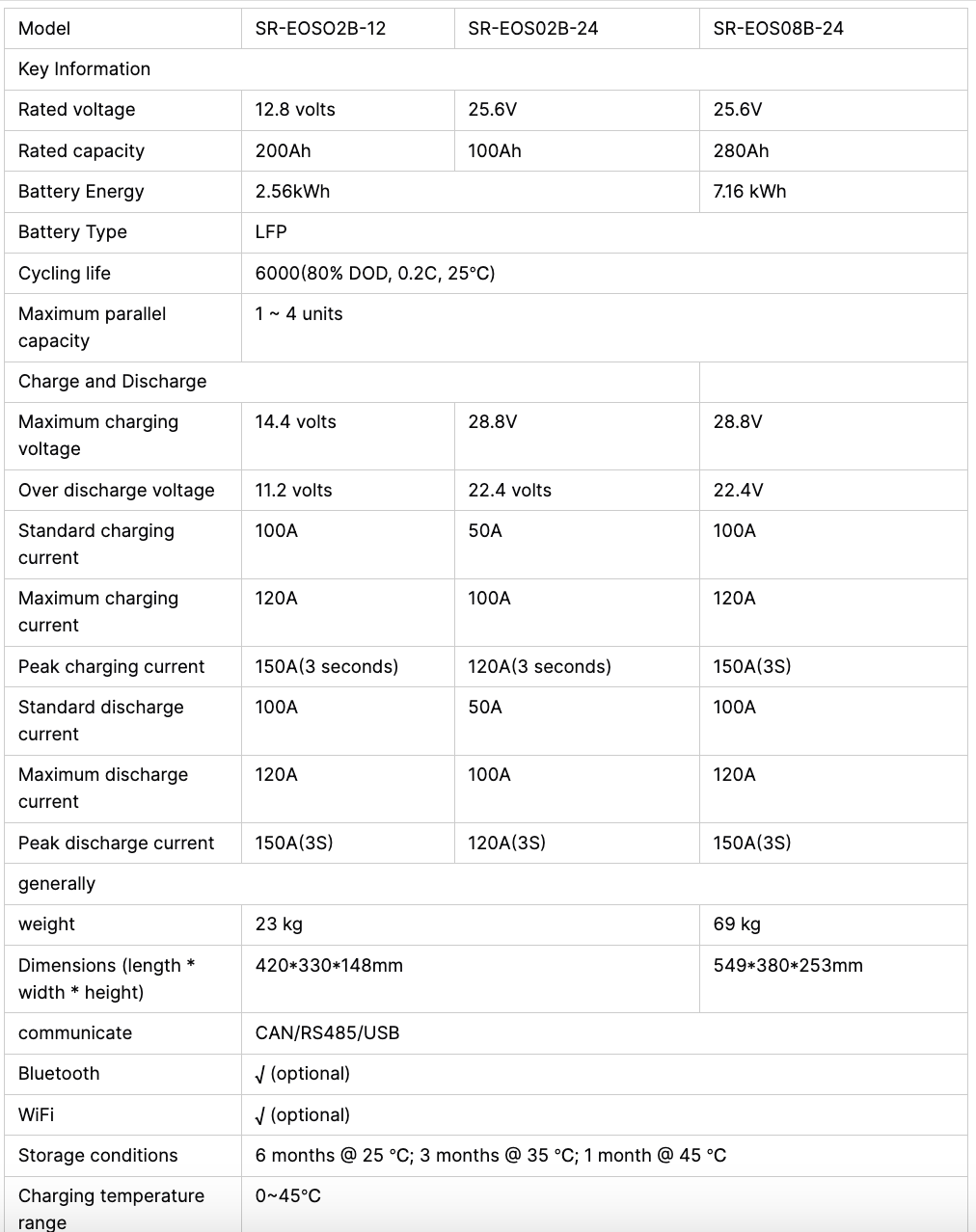

Technical Summary

• Model: EOS02B
• Battery Energy: 2.56kWh
• Rated Voltage: 25.6V
• Capacity: 100Ah
• Cycle Life: 6000 cycles (80% DOD, 0.2C, 25°C)
• Charging Current: Standard 50A / Max 100A / Peak 120A
• Discharge Current: Standard 50A / Max 100A / Peak 120A
• Parallel Connection: 1-4 units
• Weight: 23kg
• Communication: CAN / RS485 / USB
• Bluetooth & WiFi: Optional
