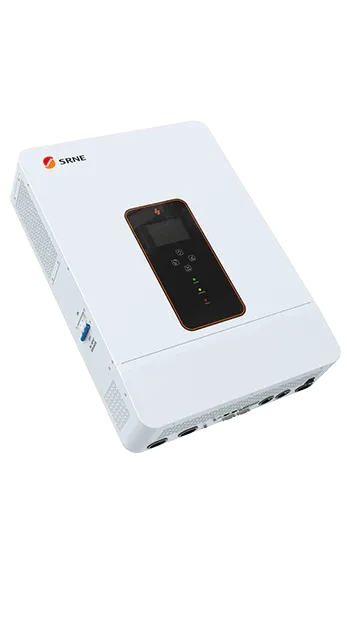

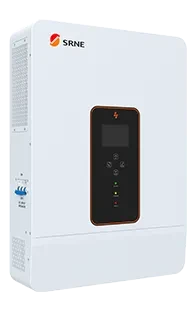

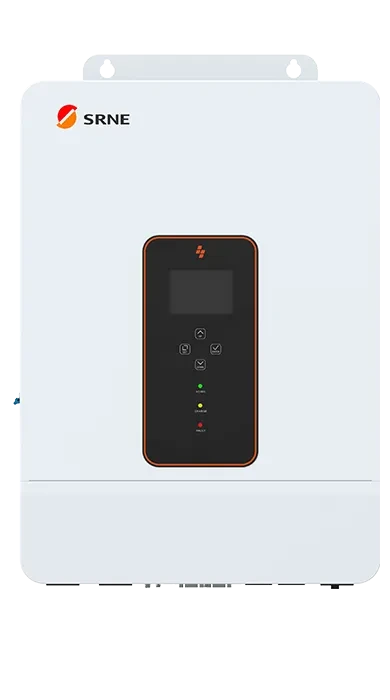

The SRNE ASF48120SH3 12KW Three-Phase Hybrid Solar Inverter is a high-performance solution for demanding solar energy systems requiring stable, efficient power delivery. Designed to support up to 260A hybrid charging, dual MPPT inputs, and a massive 800V open circuit voltage, this inverter is ideal for commercial buildings, high-demand residential setups, and solar water pumping systems.
Built for reliability, expandability, and real-time energy optimization, it offers clean three-phase output, robust safety protections, and seamless switching between solar, generator, and grid inputs.
Key Features and Benefits
Three-Phase Output for Commercial and Heavy-Duty Use
- Rated at 230/400V three-phase AC output, supporting 5HP motors.
- Ideal for powering industrial machinery, water pumps, compressors, and multiple appliances.
Ultra-Efficient 260A MPPT Solar Charging
- Features two MPPT trackers with up to 9KW + 9KW input.
- 800V open circuit voltage per input for greater solar array flexibility.
- 200–650V MPPT voltage range for efficient performance even in varied sunlight conditions.
Powerful Hybrid Charging Capability
- Handles up to 260A combined solar + grid/generator charging.
- Compatible with 48V battery systems including lithium, lead-acid, and user-defined battery setups.
Flexible Power Modes and Rapid Switching
- Supports off-grid and battery-less operation.
- Switches within 10ms, maintaining consistent power delivery during outages.
Comprehensive Safety & Monitoring Features
- Built-in protections: over-voltage, under-voltage, short-circuit, thermal, overload, and reverse current.
- Supports RS485, CAN, USB, and optional Wi-Fi/GPRS for system monitoring and control.
Industrial-Grade Design
- Compact and robust housing (620x445x130mm), air-cooled system.
- Designed for indoor installations, with IP20 protection rating and 2-year warranty.
Ideal Applications
- Commercial solar power systems
- Large residential or villa setups
- Agricultural and irrigation systems (water pumps, boreholes)
- Workshop, office, or light industrial energy setups
- Hybrid energy installations requiring both grid and solar integration

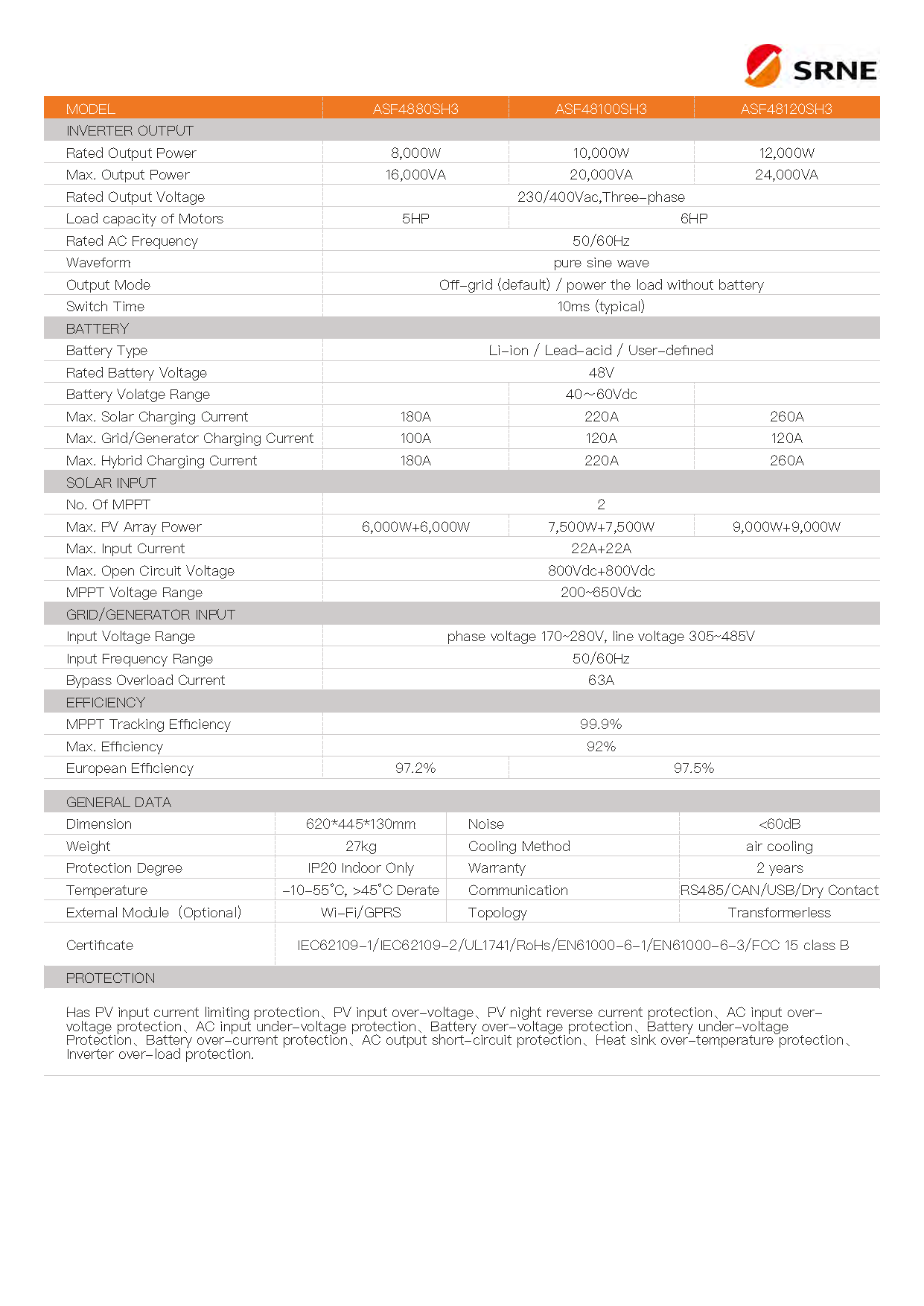

Technical Summary
- Model: ASF48120SH3
- Rated Power: 12,000W
- Battery Voltage: 48V
- Max Hybrid Charging: 260A
- Max PV Voltage: 800V per MPPT
- MPPT Voltage Range: 200–650V
- Output: 230/400V Three-Phase AC
- Efficiency: 97.5%
- Warranty: 2 Years
