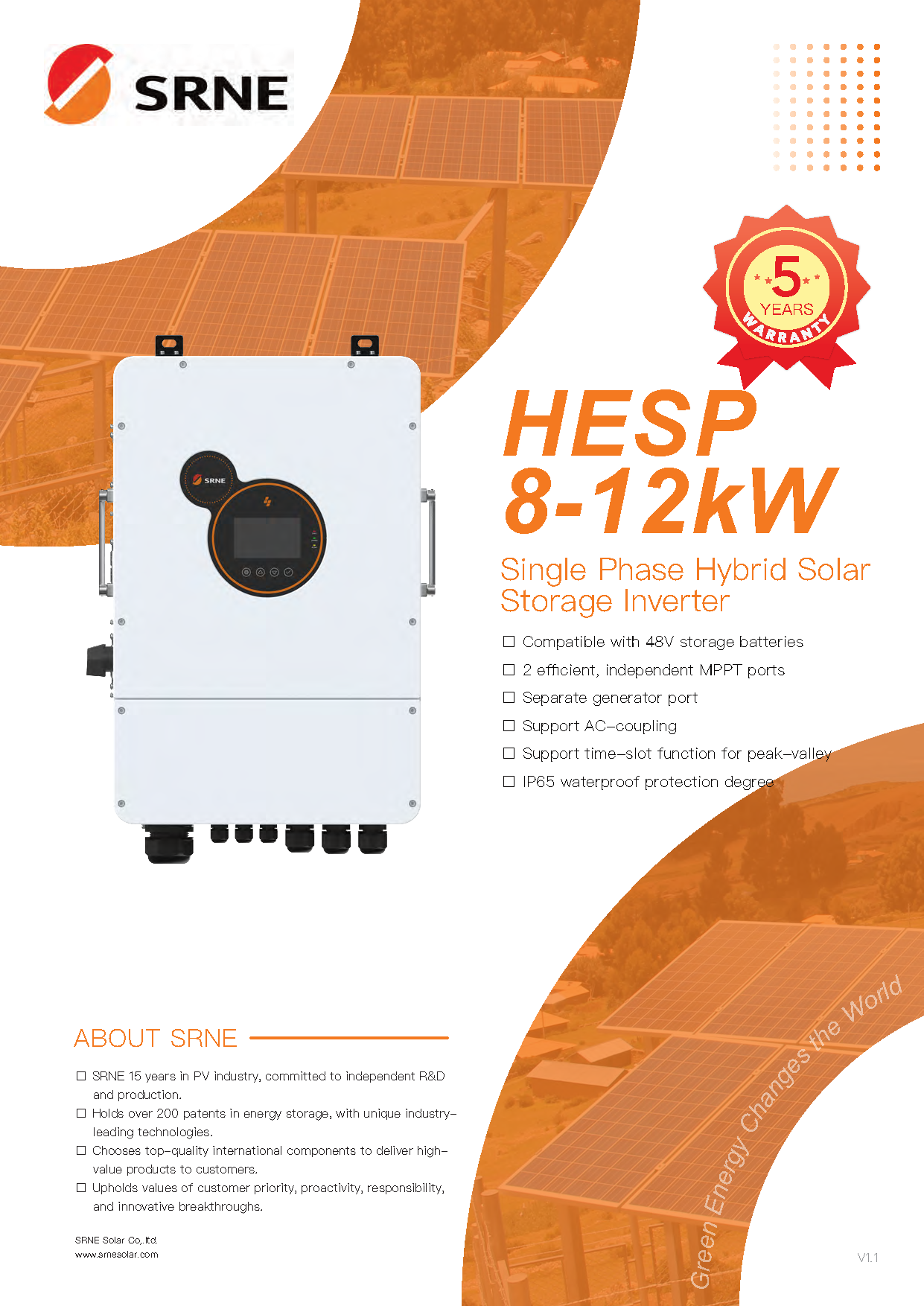

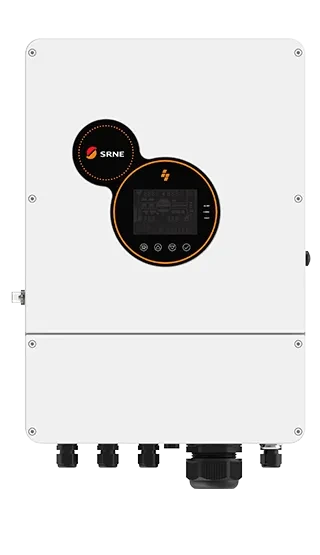

Take your solar system to the next level with the SRNE HESP48120S200-H 12KW Hybrid Inverter – a heavy-duty, intelligent power solution for homes, businesses, and high-demand solar installations. Designed with 200A hybrid charging, dual MPPTs, and IP65 waterproof protection, this inverter supports 5HP motor loads, parallel expansion, and seamless backup switching – all backed by a solid 5-year warranty.
Key Features & Benefits:
Massive 12KW Power Output
- Handles up to 5HP motor loads – ideal for solar water pumps, fridges, compressors, and other appliances.
- Supports both AC and off-grid outputs for flexible use.
Dual MPPT Technology – Ultra-Efficient Solar Charging
- Two independent MPPTs (6.6KW + 6.6KW) for better solar utilization.
- MPPT voltage range: 120V–450VDC with 500V open circuit voltage per string.
- 99.9% MPPT tracking efficiency, 97.5% overall efficiency.
Massive 200A Hybrid Charging Current
- Combine solar, grid, and generator inputs to achieve faster, smarter charging.
- Supports 48V battery banks, including lithium, lead-acid, and custom options.
AC Coupling + Generator Port
- Integrate with existing grid-tied systems using AC coupling.
- Dedicated generator port allows seamless switching and peak-valley control.
Durable IP65 Protection
- Built to withstand tough environments with IP65 waterproof rating.
- Suitable for indoor and outdoor installations.
Expandable Parallel Setup
- Connect up to 6 inverters in parallel (up to 72KW), with three-phase output support for larger systems.
Smart Monitoring & Safety Features
- Supports RS485, CAN, USB, Wi-Fi, and GPRS monitoring.
- Built-in protections: PV reverse, surge, short-circuit, insulation monitoring, anti-islanding and more.
Ideal For:
- Large home solar systems
- Commercial & industrial solar installations
- Solar water pumping (up to 5HP)
- Off-grid & hybrid backup power
- Sites needing high-efficiency + scalability

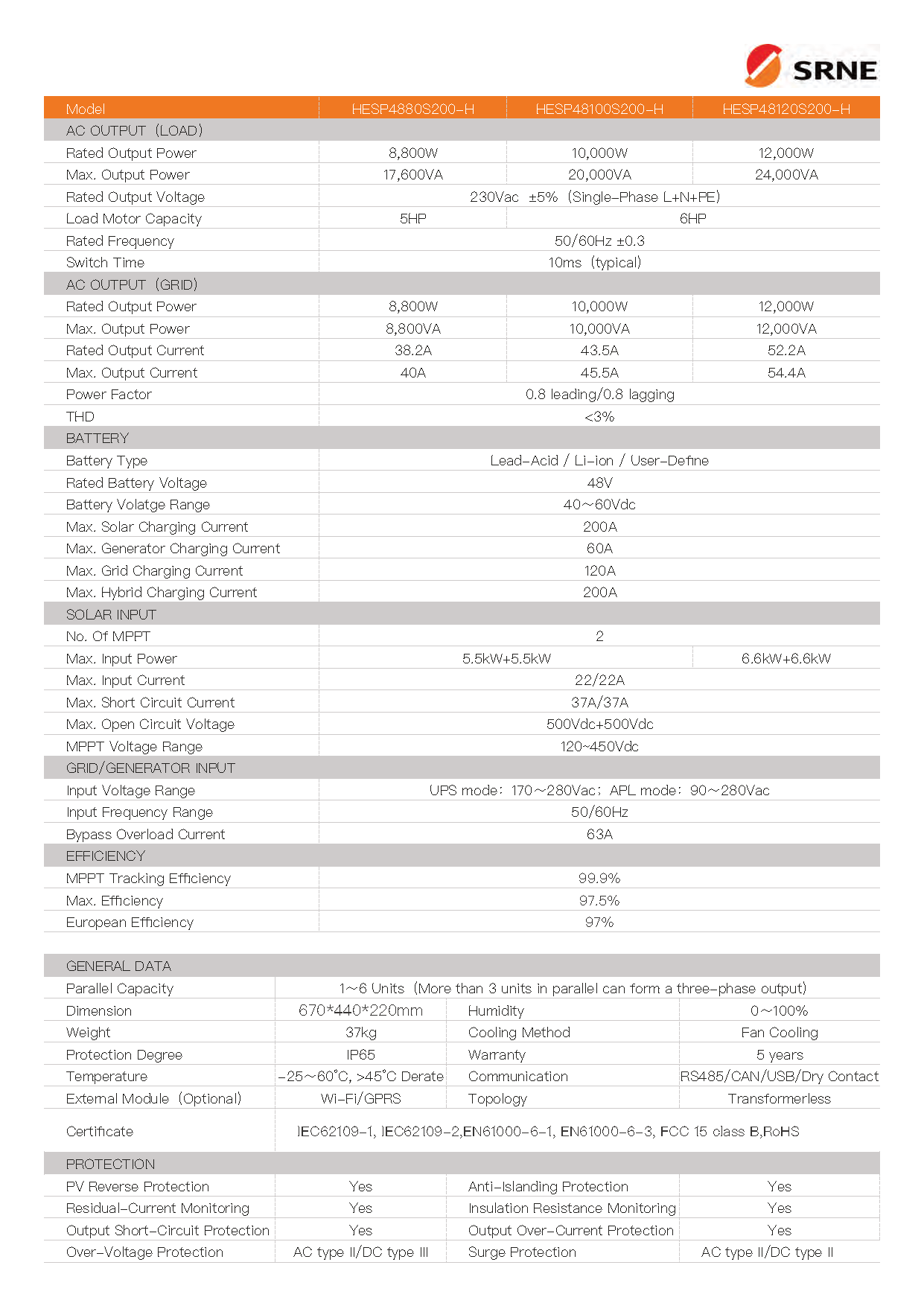

Technical Summary:
- Model: HESP48120S200-H
- Rated Power: 12,000W
- Battery Voltage: 48V
- Max Hybrid Charging: 200A
- PV Input: Dual 6.6KW, 500VDC
- Output: 230V Single-phase, <3% THD
- Switch Time: 10ms
- Protection Rating: IP65
- Warranty: 5 Years
