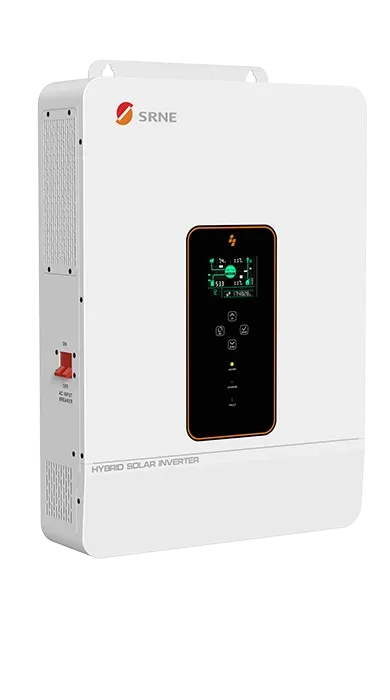

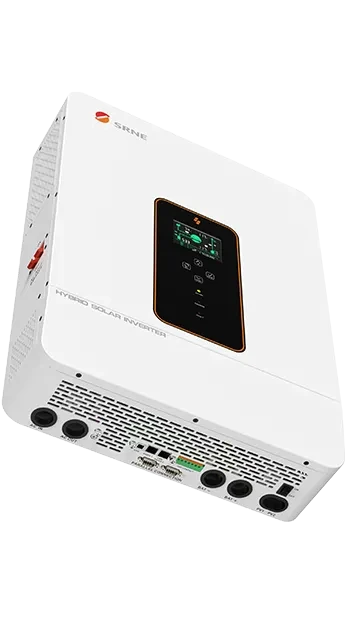

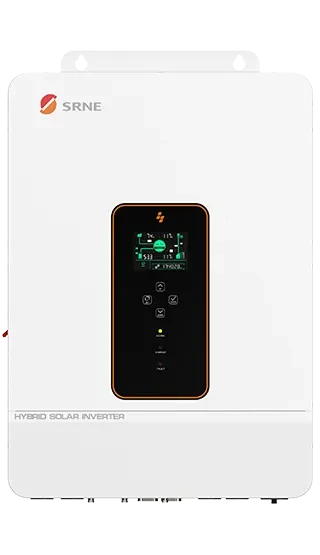

SRNE 10KW 48V Hybrid Solar Inverter – 200A MPPT, Dual MPPT, Single-Phase, 500V PV Input
Highlights: SRNE 10KW 48V Hybrid Solar Inverter – 200A MPPT, Dual MPPT, Single-Phase, 500V PV Input features a powerful 10KW 48V Hybrid Solar Inverter! Designed for seamless energy management, this cutting-edge inverter features dual MPPT technology and a robust 200A capacity, ensuring optimal solar energy conversion and efficiency. Enjoy the benefits of reduced electricity bills and energy independence, all backed by a 2-year warranty for peace of mind. With a 500V PV input, it's perfect for both residential and commercial use, making it the ultimate choice for sustainable energy solutions. Invest in the SRNE inverter Hybrid Inverter. Its hybrid flexibility allows seamless use of solar, battery, and grid power. The offer is completed with warranty, making energy independence affordable and hassle-free.
Specifications
-
UGX1,084,600
-
UGX1,548,000
UGX1,848,000 -
UGX2,009,000
UGX1,990,000 - UGX2,189,000
Reviews & Ratings
BLISON ENERGY
The SRNE ASP48100S200-H 10KW Hybrid Solar Inverter is a high-capacity, intelligent off-grid inverter designed for modern solar systems that demand performance, efficiency, and flexibility. Engineered to handle up to 200A hybrid charging, dual MPPT input, and 10KW pure sine wave output, it’s the perfect solution for large homes, commercial sites, and off-grid solar applications.
Its parallel connection capability allows for up to 6 units in sync (up to 60KW total), making it scalable for future energy needs.
Key Features and Benefits
10KW Continuous Power Output
- Delivers 20KVA peak output for powering multiple appliances, equipment, and large household systems.
- Supports 6HP motor loads, ideal for water pumps, fridges, and compressors.
Advanced 200A MPPT Charging with Dual Inputs
- Two independent MPPT inputs, each accepting up to 5.5KW solar power.
- Open circuit voltage up to 500Vdc per input, allowing for more solar panel flexibility.
- MPPT efficiency at 99.9%, delivering maximum energy harvesting from your solar array.
Powerful Hybrid Charging
- Accepts solar + grid/generator input simultaneously for hybrid charging.
- 200A max hybrid charging current charges batteries faster and more efficiently.
- Works with 48V battery systems, including Li-ion, Lead-Acid, and user-defined types.
Battery-Free Operation and Fast Switching
- Can power loads without batteries (UPS mode).
- 10ms automatic switch between power sources ensures uninterrupted electricity.
Parallel Scalability
- Connect up to 6 inverters in parallel, forming up to 60KW total system capacity.
- Supports three-phase output when three or more units are connected.
Protection and Control
- Built-in protections: over-voltage, under-voltage, overload, reverse current, and over-temperature.
- Communication via RS485, CAN, USB, and optional Wi-Fi/GPRS for remote monitoring.
- Industrial-grade enclosure with IP20 indoor protection, quiet fan cooling, and compact design.
Ideal Applications
- Large residential solar systems
- Commercial and office backup setups
- Solar water pumping and farm installations
- Remote or off-grid areas needing scalable energy solutions
- Businesses seeking uninterrupted power with generator integration
Technical Summary
- Model: ASP48100S200-H
- Output Power: 10,000W (20,000VA max)
- Battery Voltage: 48V
- Hybrid Charging Current: 200A
- MPPT Inputs: Dual 5.5KW (500Vdc per string)
- MPPT Voltage Range: 125–425V
- Efficiency: 92% (99.9% MPPT tracking)
- Switch Time: 10ms
- Protection Rating: IP20
- Warranty: 2 Years
