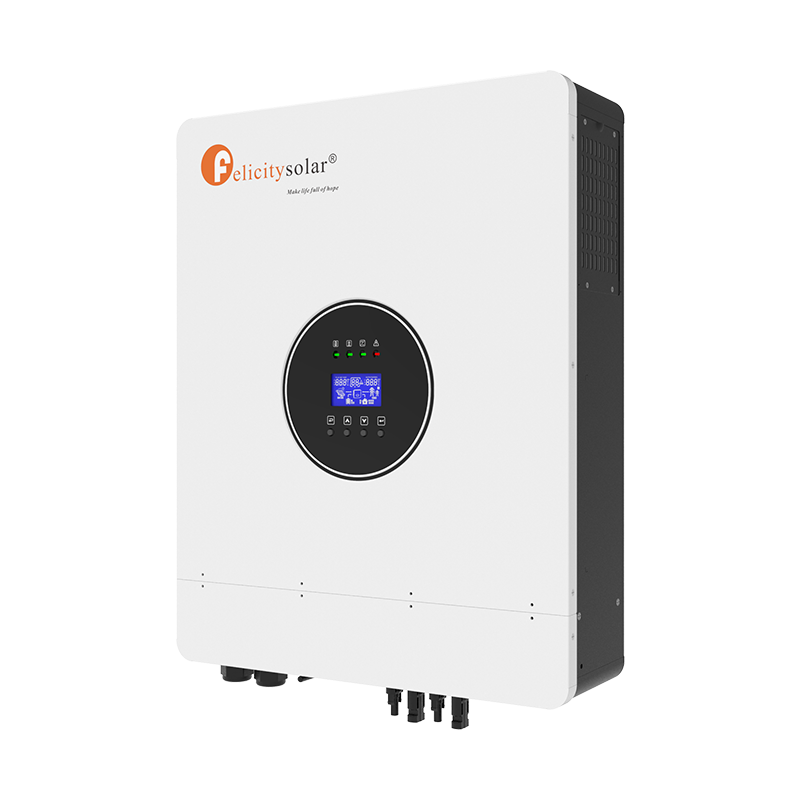

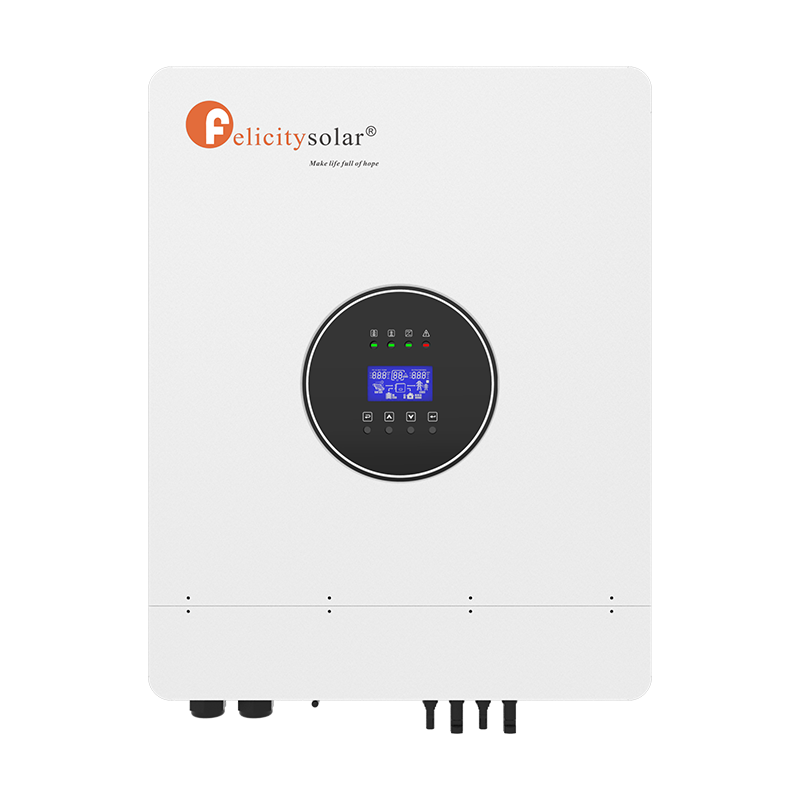

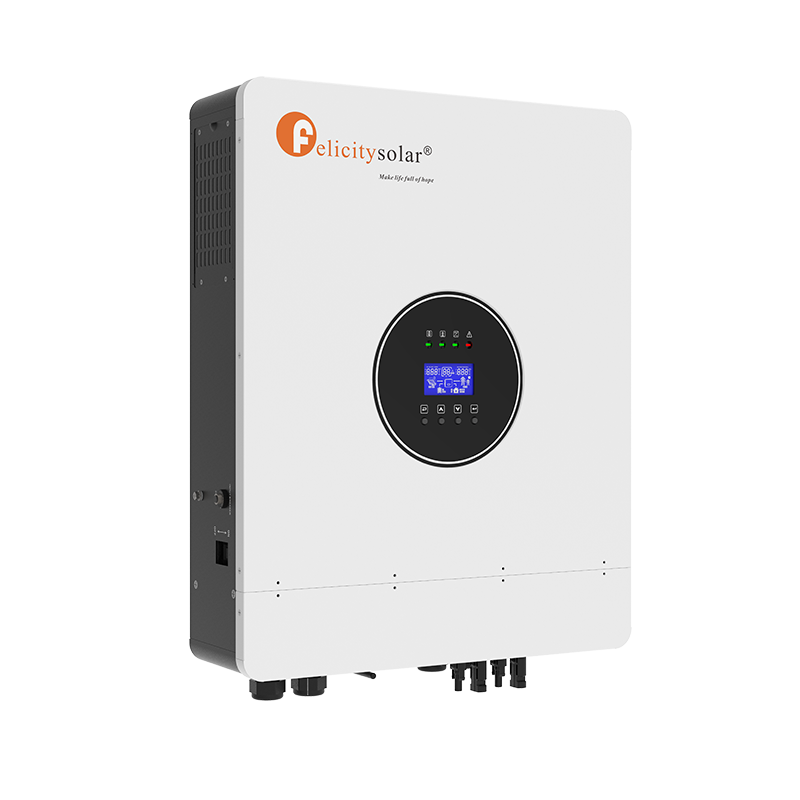

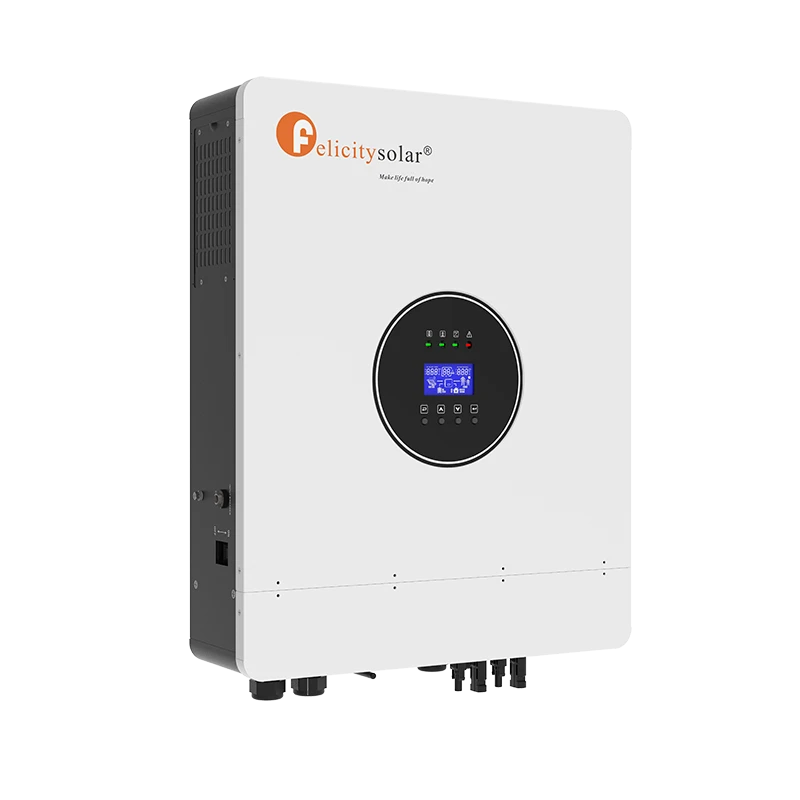

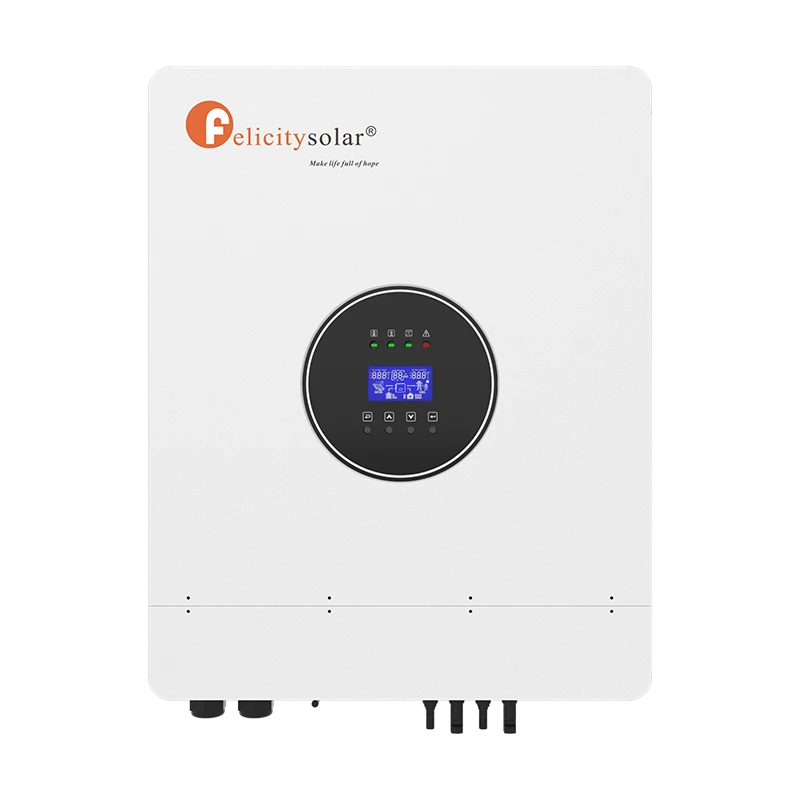

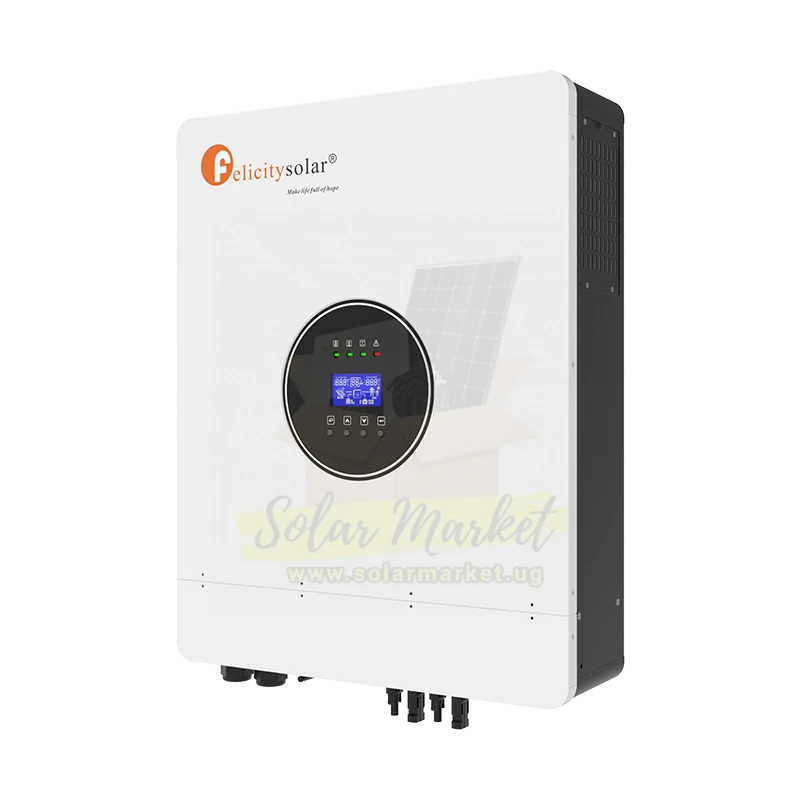

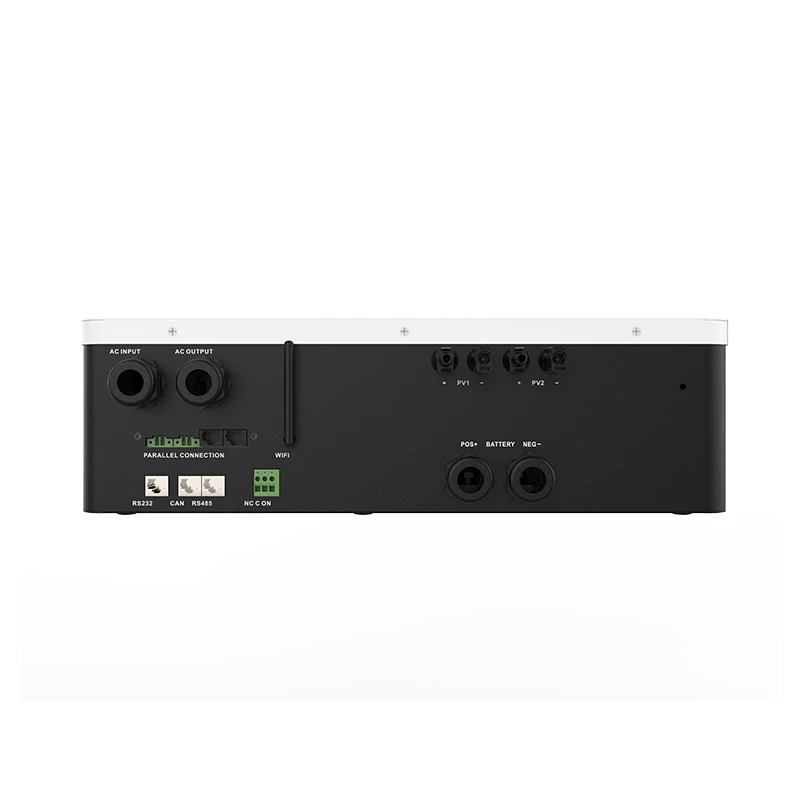

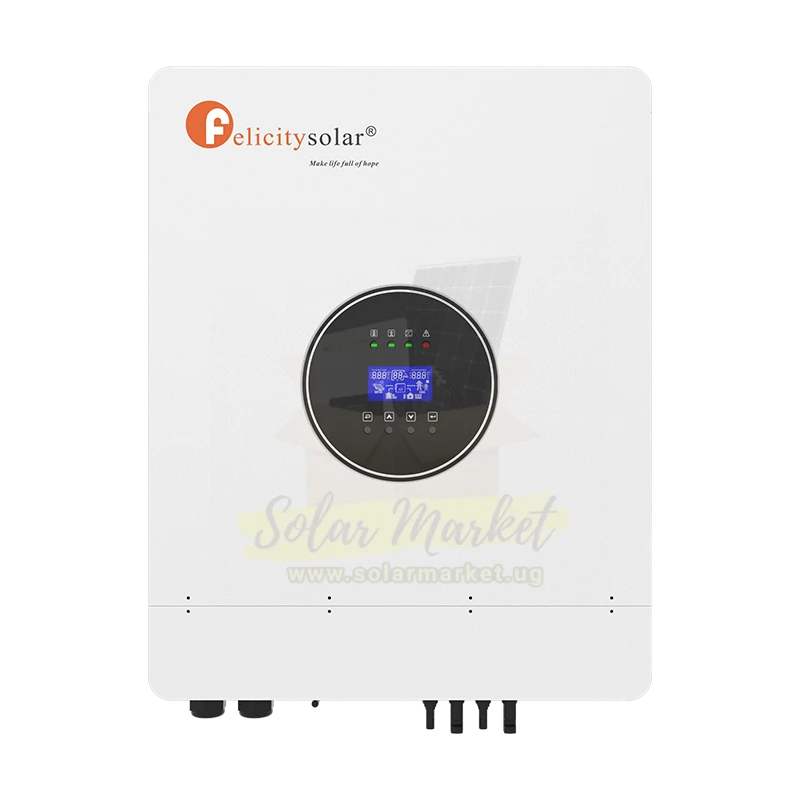

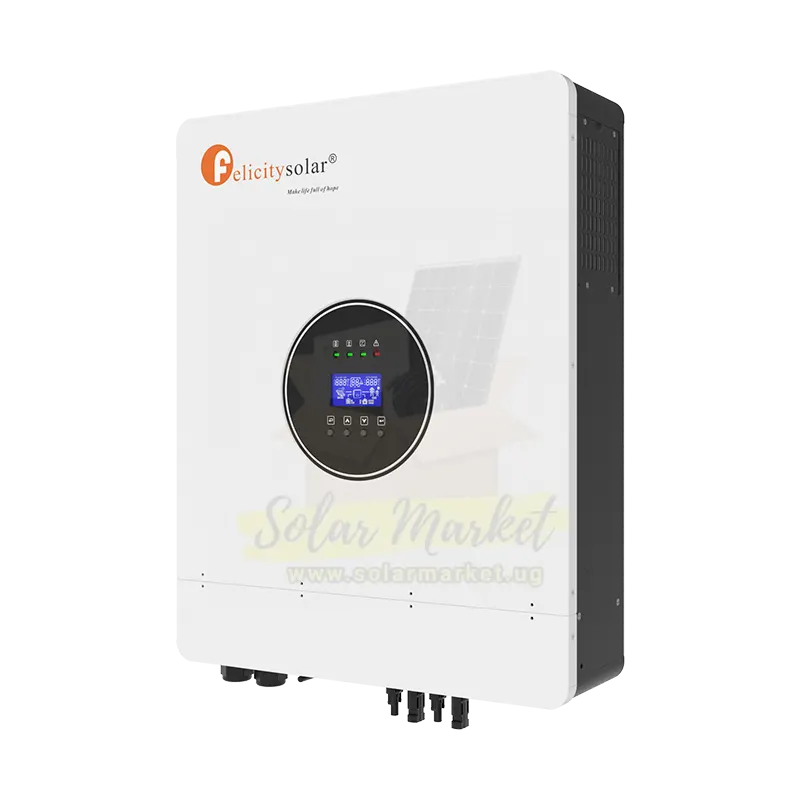

Felicity IVEM8048 Hybrid Inverter 8kVA 48V, 500V PV, Pure Sine Wave, 1 MPPT, for Residential Solar, Small Commercial Solar, Telecom and ICT
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
Felicity

Felicity IVEM8048 Hybrid Inverter 8kVA 48V, 500V PV, Pure Sine Wave, 1 MPPT, for Residential Solar, Small Commercial Solar, Telecom and ICT

UGX2,599,000 VAT incl.
☆☆☆☆☆ No reviews yet ·Questions (0)
Pickup in Kampala1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Kampala · Pickup in Kampala · 4 In stock
UGX2,599,000
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · manufacturing defects
The warranty is this product's own (1 year). 7-day return window for manufacturing defects. Contact Masrcorp Solar support with your order reference to arrange an exchange or repair. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Brand Felicity Model IVEM8048
Rated Power 8000 W Max PV Input Power 10000W (5000W for single PV)
Max Charging Current 10-150A (Adjustable unit is 1A) MPPT Voltage Range 90V-450V
Max PV Open Circuit Voltage 500 V Nominal Output Voltage 230Vac±5%
Nominal Output Frequency 50±0.3Hz / 60Hz±0.3Hz (Adjustable) Nominal Voltage 48 V
Surge Power 2* rated power for 5s Product Dimensions (D*W*H),712×582×259MM
Product Weight 23.7 KG Waveform As same as input waveform
Efficiency 94.5% Operating Temperature Range,0°C~55°C
Float Charge Voltage 54V High DC Input Alarm & Fault 62V±0.4V
High Line Voltage Disconnect 280Vac±7V Input AC Voltage Range 90-280Vac
Low DC Input Shut-down Recovery 46.0V Max AC Input Voltage 280Vac
Max PV Input Current 20A×2 (MAX 40A) Max. Bypass Overload Current 53A
Output Over Current Protection 40A Output Short Circuit Protection Yes
Overcharge Protection 5s@ ≥ 150% load; 10s@105%~150% load Parallel Capability Yes, up to 6 units
Pass Through Without Battery Yes PV Start-up Voltage 100V
SKU SM-HYB-FEL-00328 Start Voltage 46V
Storage Temperature -15°C~60°C Transfer Time 50ms typical

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

The Felicity IVEM8048 is an 8kVA hybrid inverter for 48V systems with 500V VOC and 1 MPPT. It is built for residential solar, small commercial solar, and telecom or ICT backup where pure sine wave power, battery support and scalable solar input are required.

About this item

  • HYBRID OPERATION - Supports solar PV and grid input for flexible energy management.
  • 8KVA / 8000W OUTPUT - Suitable for medium home and small commercial backup loads.
  • 48V NOMINAL INPUT - Works with common 48V battery banks for stable operation.
  • 500V VOC LIMIT - Accepts a high PV open-circuit voltage for flexible string design.
  • 1 MPPT TRACKER - Tracks solar power efficiently from a single MPPT input.
  • PARALLEL CAPABILITY - Supports up to 6 units for larger system designs.
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What is the rated output of Felicity IVEM8048?
It is an 8kVA / 8000W hybrid inverter for medium home and small commercial backup loads.
What battery voltage does it use?
It uses a 48V nominal battery system.
What solar input does it accept?
It supports a 500V maximum open-circuit voltage, a 90V-450V PV working range, and up to 10kW PV input.
Can it run more than one unit in parallel?
Yes. The specs show parallel capability for up to 6 units.
What type of power output does it provide?
It provides pure sine wave output, which is suitable for sensitive electronics and telecom equipment.
