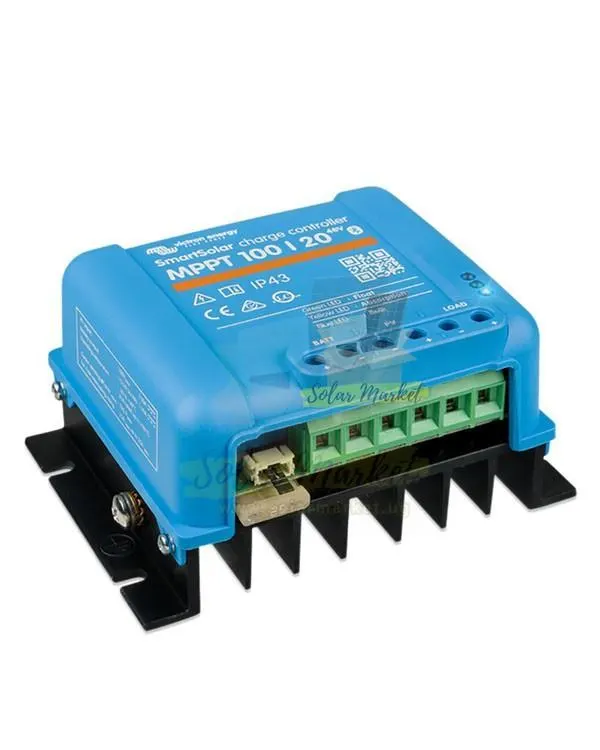

Victron MPPT 100/20-48V MPPT Charge Controller 48V for Residential solar, Small commercial solar, Off-grid and hybrid
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
victron · MPPT Charge Controllers

Victron MPPT 100/20-48V MPPT Charge Controller 48V for Residential solar, Small commercial solar, Off-grid and hybrid

UGX415,800
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX12,474Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · 9 In stock
UGX415,800
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
30A Ajay MPPT Charge Controller 30A Ajay MPPT Charge Controller UGX363,000 AJAY SOLAR Ajay Solar 60A MPPT Solar Charge Controller Ajay Solar 60A MPPT Solar Charge Controller UGX950,400 AJAY SOLAR SRNE 60A MPPT Charge Controller for Off-Grid Solar Systems 100Vdc Open Circuit Voltage 12/24/36/48Vdc Battery (Shiner2460) SRNE 60A MPPT Charge Controller for Off-Grid Solar Systems 100Vdc Open... UGX508,200 Masrcorp Solar Uganda SRNE 20A MPPT Charge Controller for Off-Grid Solar Systems 12/24V 60VOC 260-1600W PV Input IP32 (Shiner2420) SRNE 20A MPPT Charge Controller for Off-Grid Solar Systems 12/24V 60VO... UGX21,850 Masrcorp Solar Uganda
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 12 V/24 V/48 V
Solar Panels
UGX429,000
Battery
UGX2,862,000
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Battery Voltage
12V/24V/48V
Voltage Class
LV
Charge Current
20A
Communication
VE.Direct
Warranty
1 year
Brand Victron Model MPPT 100:20-48V
Max Charging Current 20 A Max PV Open Circuit Voltage 100 V
Nominal Voltage 12/24/48 V Product Dimensions 100 x 131 x 60 mm
Product Weight 0,65 kg Communication VE.Direct
Efficiency 98 % Operating Temperature -30 to +60 °C (full rated output up to 40 °C)
Absorption Voltage 14,4 V / 28,8 V / 57,6 V (adj.) Automatic load disconnect Yes
Charging Algorithm multi-stage adaptive Current Rating 20 A
Float Charge Voltage 13,8 V / 27,6 V / 55,2 V (adj.) Humidity 95 %, non-condensing
Ingress Protection IP43 (electronic components), IP22 (connection area) Low voltage load disconnect 11,1 V / 22,2 V / 44,4 V or 11,8 V / 23,6 V / 47,2 V or Battery Life algorithm
Max. continuous load current 20 A / 20 A / 1 A Max. PV short circuit current 20 A
Nominal PV power, 12 V 290 W Power terminals 6 mm² / AWG10
Protection Output short circuit / Over temperature Safety EN/IEC 62109-1, UL 1741, CSA C22.2
Self Discharge consumption – load on,26 / 20 / 19 mA Self-consumption 26 / 20 / 19 mA
SKU SM-PWM-VIC-00244 Temperature Compensation Range -16 mV / °C resp. -32 mV / °C

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

The Victron MPPT 100/20-48V MPPT Charge Controller is engineered for reliable solar energy management in Uganda’s residential, commercial, and institutional settings. Supporting low voltage (LV) systems with both single and three phase compatibility, this controller automatically selects 12V, 24V, or 48V battery banks and delivers up to 20A charge current. Its advanced multi-stage adaptive charging algorithm ensures optimal battery health and system efficiency. The unit features robust protection against short circuits and over-temperature, and is equipped with a VE.Direct communication port for system monitoring. Designed for demanding environments, it operates efficiently across a wide temperature and humidity range, and complies with international safety standards. Multiple vendors offer this model on SolarMarket Uganda, enabling easy comparison and selection from verified sellers.

About this item

  • MULTI-VOLTAGE SUPPORT: Automatically detects and manages 12V, 24V, or 48V battery banks for flexible system integration.
  • 20A CHARGE CURRENT: Delivers up to 20 amps for efficient charging in small to medium solar installations.
  • MPPT TECHNOLOGY: Maximizes energy harvest from solar panels with up to 98% peak efficiency.
  • ADAPTIVE CHARGING: Multi-stage charging algorithm optimizes battery performance and longevity.
  • ROBUST PROTECTION: Includes output short circuit and over-temperature safeguards for reliable operation.
  • DATA COMMUNICATION: VE.Direct port enables remote monitoring and integration with Victron system tools.

Applications

  • Residential solar power systems
  • Small commercial solar installations
  • Off-grid and hybrid solar setups
  • Telecom and remote site power
  • Institutional backup power solutions
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What battery voltages does the Victron MPPT 100/20-48V support?
It automatically detects and supports 12V, 24V, and 48V battery systems.
Is this charge controller suitable for both single phase and three phase systems?
Yes, it is compatible with both single phase and three phase low voltage (LV) solar setups.
What is the maximum charge current output?
The controller provides a maximum charge current of 20A.
Does the unit offer remote monitoring capabilities?
Yes, it features a VE.Direct communication port for integration with Victron monitoring solutions.
What protections are included in this model?
It includes output short circuit and over-temperature protection for safe operation.
Can the controller operate in high humidity or temperature environments?
Yes, it is rated for operation in up to 95% non-condensing humidity and temperatures from -30°C to +60°C.
How long does the controller store system data?
It stores trends data for up to 46 days, including battery voltage, current, temperature, and PV parameters.
