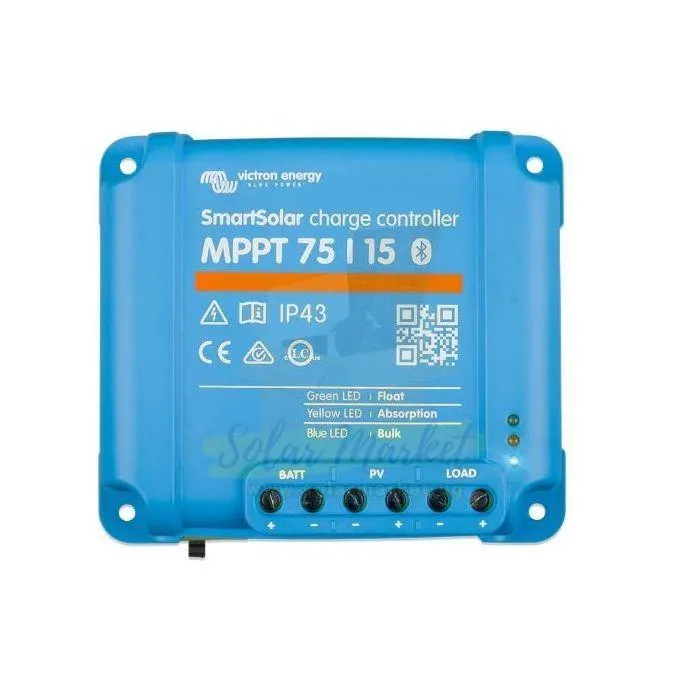

Victron MPPT 75/15 MPPT Charge Controller 48V for Residential off-grid, Small commercial solar, Telecom and remote
⇄ Compare ♡ Save ↗ Share ⬇ Specs (CSV)
victron · MPPT Charge Controllers

Victron MPPT 75/15 MPPT Charge Controller 48V for Residential off-grid, Small commercial solar, Telecom and remote

UGX344,300
☆☆☆☆☆ No reviews yet ·Questions (0)
App price · Save UGX10,329Delivery in 7 days1-yr warranty
Sold by
Masrcorp Solar Uganda ✓
Delivery in 7 days · In stock
UGX344,300
Want another price?Only one shop lists this right now. Send one request and other shops reply with their prices.
Similar products from other shops
30A Ajay MPPT Charge Controller 30A Ajay MPPT Charge Controller UGX363,000 AJAY SOLAR Ajay Solar 60A MPPT Solar Charge Controller Ajay Solar 60A MPPT Solar Charge Controller UGX950,400 AJAY SOLAR SRNE 60A MPPT Charge Controller for Off-Grid Solar Systems 100Vdc Open Circuit Voltage 12/24/36/48Vdc Battery (Shiner2460) SRNE 60A MPPT Charge Controller for Off-Grid Solar Systems 100Vdc Open... UGX508,200 Masrcorp Solar Uganda SRNE 20A MPPT Charge Controller for Off-Grid Solar Systems 12/24V 60VOC 260-1600W PV Input IP32 (Shiner2420) SRNE 20A MPPT Charge Controller for Off-Grid Solar Systems 12/24V 60VO... UGX21,850 Masrcorp Solar Uganda
Ways to payAll options
Pay NowBank Transfer
Warranty and returns
Warranty
1 year · this product
Returns
7 Days · unused and not installed.
Refund
Replacement only
The warranty is this product's own (1 year). Returns and refunds follow Masrcorp Solar Uganda's signed policy. If the shop doesn't reply to a claim in 48 hours, SolarMarket steps in.
Complete your systemMatched to 12 V/24 V
Solar Panels
UGX429,000
Battery
UGX1,019,520
With this product:
Technicians who install this
View All
Swipe/scroll to see more →
Key specs
Battery Voltage
12/24V
Voltage Class
LV
Phase
Single Phase
Bluetooth
Built-in
Rated Charge Current
15A
Warranty
1 year
Brand Victron Model MPPT 75/15
Max Charging Current 15 A Max PV Open Circuit Voltage 75 V
Nominal Voltage 12/24 V Product Dimensions 100 x 113 x 40 mm
Product Weight 0,5 kg Communication VE.Direct (see the data communication white paper on our website)
Efficiency 98 % Operating Temperature -30 to +60 °C (full rated output up to 40 °C)
Absorption Voltage 14,4 V / 28,8 V (adjustable) Automatic load disconnect Yes
Battery Type intelligent battery management Charging Algorithm multi-stage adaptive
Current Rating 15 A Float Charge Voltage 13,8 V / 27,6 V (adjustable)
Humidity 95 %, non-condensing Ingress Protection IP43 (electronic components), IP22 (connection area)
Low voltage load disconnect 11,1 V / 22,2 V / 44,4 V or 11,8 V / 23,6 V / 47,2 V or Battery Life algorithm Max. continuous load current 15 A
Max. PV short circuit current 15 A Nominal PV power, 12 V 220 W
Power terminals 6 mm² / AWG10 Protection Output short circuit / Over temperature
Safety EN/IEC 62109-1, UL 1741, CSA C22.2 Self-consumption 12 V: 19 mA 24 V: 16 mA
SKU 104 Temperature Compensation Range -16 mV / °C resp. -32 mV / °C

Notice a wrong or outdated datasheet? Help us fix it.

About this product

Overview

The Victron MPPT 75/15 MPPT Charge Controller is engineered for reliable solar charging in Uganda’s diverse off-grid environments. Supporting both 12V and 24V low voltage (LV) systems, this single phase controller features ultra-fast maximum power point tracking to optimise energy harvest, especially under variable weather conditions. Integrated Bluetooth Smart connectivity allows for seamless wireless configuration and monitoring via mobile devices. The controller includes a programmable battery charge algorithm, intelligent battery management with Battery Life, and robust protection against over-discharge, short circuits, and over-temperature. Its compact design, high peak efficiency of 98%, and adaptive multi-stage charging make it suitable for a range of residential and small commercial solar installations. The Victron MPPT 75/15 is compatible with VE.Direct data communication and supports external battery sensing for enhanced system accuracy.

About this item

  • BLUETOOTH SMART BUILT-IN: Enables wireless setup, monitoring, and firmware updates via the VictronConnect app.
  • ULTRA-FAST MPPT TRACKING: Maximises solar energy harvest by rapidly adapting to changing light conditions.
  • LOAD OUTPUT WITH PROTECTION: Prevents battery over-discharge and supports intelligent battery management algorithms.
  • PROGRAMMABLE CHARGE ALGORITHM: Allows customisation for various battery types and system requirements.
  • TEMPERATURE COMPENSATION: Internal sensor adjusts charging parameters for optimal battery health in varying climates.
  • FULLY DISCHARGED BATTERY RECOVERY: Initiates charging even when batteries are deeply depleted, supporting system resilience.

Applications

  • Residential off-grid solar systems
  • Small commercial solar installations
  • Telecom and remote monitoring sites
  • Solar-powered lighting systems
  • Rural electrification projects
Ask Volta about this“Will it run my fridge and pump overnight?”
Chat with Volta
Frequently Asked Questions
What voltage and phase does the Victron MPPT 75/15 support?
The controller supports 12V and 24V low voltage (LV) systems and is designed for single phase operation.
Can I monitor and configure the controller wirelessly?
Yes, Bluetooth Smart is built-in, allowing wireless monitoring and configuration via the VictronConnect app.
Is the Victron MPPT 75/15 suitable for lithium batteries?
Yes, it supports both lead-acid and lithium battery chemistries with programmable charging algorithms.
What is the maximum PV input voltage?
The maximum PV open circuit voltage supported is 75V.
Does the controller protect against battery over-discharge?
Yes, it features load output with automatic disconnect to prevent battery over-discharge.
Can the controller recover a fully discharged battery?
Yes, it includes a recovery function to initiate charging even if the battery is deeply discharged.
What data communication options are available?
The controller includes a VE.Direct port for integration with Victron monitoring and control systems.
