Felicity T-REX-10KLP3G01 Three Phase Hybrid Inverter 10kVA, 40V-60V, 2 MPPTs, WiFi/GPRS, RS232/RS485, IP65, for Residential Solar, Commercial, Mini-grid and Rural
About this item
Product spotlights
Highlights: Felicity T‑REX‑10KLP3G01 10KVA Hybrid Solar Inverter. Price in ["Uganda", genuine warranty support, fast delivery and installation options from SolarMarket.
Product Information
Technical specifications| Brand | Felicity | Model | T‑REX‑10KLP3G01 |
|---|---|---|---|
| Rated Power | 10000 | Max PV Input Power | 13000W (6500W for Single PV) |
| Max Charging Current | 200 | MPPT Voltage Range | 160V–900 |
| Max PV Open Circuit Voltage | 900 | Nominal DC Input Voltage | 2 |
| Nominal Output Voltage | L1/L2/L3/N/PE, 230/400 | Nominal Output Frequency | 50/60 |
| Nominal Voltage | 40V–60V | Number of MPPT Trackers | 2 |
| Product Dimensions | 792 × 597 × 351 | Product Weight | 47.1 |
| Communication | RS232 / RS485 | Operating Temperature | -25°C–60°C, >45°C Derating |
| Warranty | 10 | AC Output Rated Current | 14.5A |
| Anti-Islanding Protection | Integrated | Chemistry | Li-ion / Lead-acid |
| Cooling Concept | Smart cooling | Displacement Power Factor | 0.8 (Leading) to 0.8 (Lagging) |
| Display | LCD + LED | Grid Regulation | VDE-AR-N 4105 |
| Ingress Protection | IP65 | Installation Style | Wall-mounted |
| Insulation Resistor Detection | Integrated | Max AC Input Voltage | L1/L2/L3/N/PE, 230/400 |
| Max. Continuous AC Passthrough | 30A | Max. Shorted Current | 18A / 18A |
| Monitor Module | WiFi / GPRS | Output Over Current Protection | Integrated |
| Output Short Circuit Protection | Integrated | Power Factor | >0.99 |
| Safety Regulation IEC 62109-1 / | IEC 62109-1 / -2 | SKU | SM-HYB-FEL-00482 |
| Start Voltage | 180V | THDi | <3% |
Notice a wrong or outdated datasheet? Help us fix it.
Freelancers
VerifiedVerified Solar Installers for this Product
View All
Osama Mathew
Solar | water pumps | Backup systems
Kampala
Lighting
Troubleshooting
CAD Design
View Profile
Tamale Muhamad
Expert Solar Systems Designer & Installer – Powering Your Future!
Kampala
Solar Installation
Solar Panel Cleaning
Solar Water heater
View Profile
Okitwi Francis
Certified solar technician based in Tororo
Tororo
Solar Installation
Inverter Setup
Solar System Design
View Profile
Ndawula Muhamadi
Hybrid Solar Wholesale Supplier & Installer Expert
Masaka
Solar Installation
Solar System Design
Solar Energy Audits
View Profile
ANITA
Solar system installation
Kampala
Electrical Repairs
Appliance Repair
Solar Installation
View Profile
ETIENE MAATE
ElectroMechanical Engineer
Kampala
Project Management
Solar Water heater
Solar System Design
View Profile
Kibozeeyi John
Skilled Solar Installer – Expertise in Felicity, CWorth, & other quality brands
Kampala
Solar Installation
Solar Panel Cleaning
Solar System Design
View Profile
Francis Ekapuloni
Professional Solar Expert
Kampala
Solar Installation
Solar Energy Audits
View Profile
Kizito Vincent
I am a technician dealing in hydro and solar power, security systems, networking...
Kampala
IT Support
Electrical Repairs
Battery Wiring
View Profile
WASSWA Emmy
Solar installer
Bugiri
Electrical Repairs
Solar System Design
Electrical Installation
View Profile
Swipe/scroll to see more →
Description
Specs & detailsOverview
The Felicity T-REX-10KLP3G01 is a three phase 10kVA hybrid inverter for 40V-60V battery systems with 2 MPPTs, WiFi or GPRS remote monitoring, RS232 or RS485 communication and IP65 protection. It is built for residential solar, commercial sites, mini-grid projects and rural backup where reliable power conversion and remote visibility are important.
About this item
- THREE PHASE HYBRID OPERATION - Supports grid-tied and off-grid use for flexible energy management.
- 10KVA / 10KW OUTPUT - Suited to larger homes, business loads and distributed energy projects.
- 40V-60V BATTERY RANGE - Designed for hybrid battery configurations in this power class.
- 2 MPPT TRACKERS - Improves solar harvest across multiple PV strings.
- WI-FI / GPRS MONITORING - Enables remote status checks and system management.
- RS232 / RS485 COMMUNICATION - Supports wired integration and monitoring workflows.
Product FAQs
It is rated at 10kVA / 10kW for larger mixed-load systems.
It uses a 40V-60V battery range.
It has 2 MPPT trackers.
It supports WiFi or GPRS monitoring and RS232 or RS485 communication.
The IP65 protection degree makes it suitable for tougher installation environments.
Compare
Model comparisonsRecommended Comparisons
Srne 12kW 48V 3 Phase Hybrid Solar...
VS
1500W Hybrid MPPT Off Grid Inverte...
SRNE HESP4860S100-H Hybrid Solar I...
VS
Felicity Hybrid Inverters ✔ 6KW Ou...
35kW 48V Growatt Hybrid Solar Inve...
VS
Entelechy HPL-3000W 3KVA 3000W Hyb...
SRNE HF1215S60-108 1.5kW 12V Hybri...
VS
Entelechy HPL-3000W 3KVA 3000W Hyb...
5kW 48V Growatt Hybrid Solar Inver...
VS
5kW 48V100A MPPT Srne Solar Hybrid...
Entelechy HPL-3000W 3KVA 3000W Hyb...
VS
Felicity IVCM1012 Hybrid Inverter...
SRNE HF1215S60-108 1.5kW 12V Hybri...
VS
Sunsynk 36kW 48V Hybrid Inverter D...
35kW 48V Growatt Hybrid Solar Inve...
VS
Sunsynk 36kW 48V Hybrid Inverter D...
Recent Related Comparisons
1500W Hybrid MPPT Off Grid Inverte...
VS
Felicity T-REX-10KLP3G01 Three Pha...
Srne 10kW 48V Hybrid Solar Inverte...
VS
Felicity T-REX-10KLP3G01 Three Pha...
Felicity T-REX-10KLP3G01 Three Pha...
VS
1kW Felicity Hybrid Inverter IVCM1...
11kW 48V Eastman Hybrid Solar Inve...
VS
Felicity T-REX-10KLP3G01 Three Pha...
Felicity T-REX-10KLP3G01 Three Pha...
VS
Felicity IVEM12048-II Hybrid Inver...
Sunsynk 36kW 48V Hybrid Inverter D...
VS
Felicity T-REX-10KLP3G01 Three Pha...
Easun MPPT Solar Charger Controlle...
VS
Felicity T-REX-10KLP3G01 Three Pha...
Felicity T-REX-10KLP3G01 Three Pha...
VS
Felicity IVPM10048 Hybrid Inverter...
Related products
Related
new
In stock

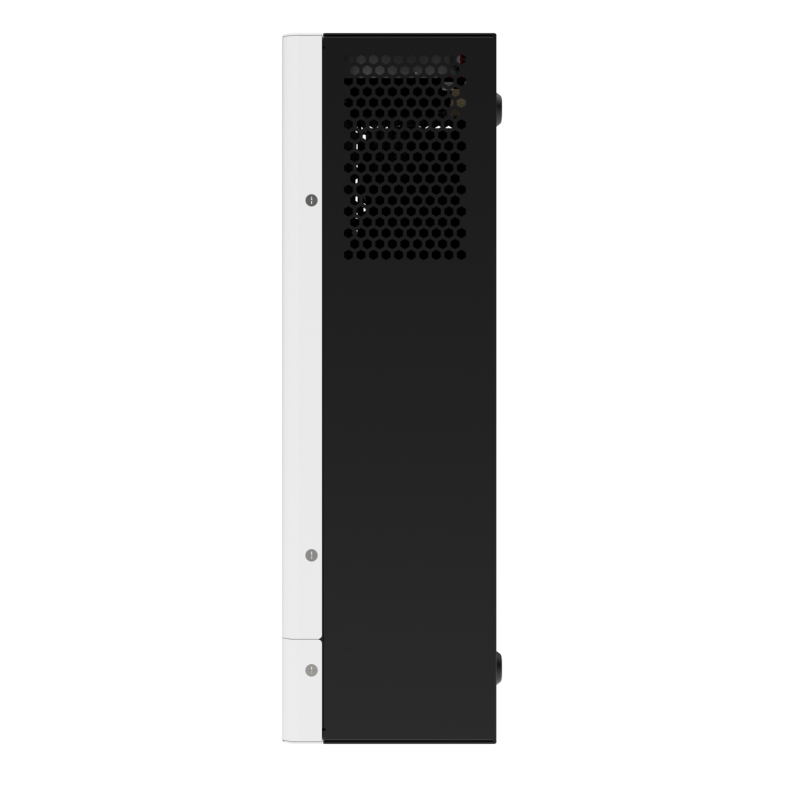

1kW Felicity Hybrid Inverter IVCM1012 LV, 105V, Supports up to 1kW PV Input, For Home backup, Small solar backup
(0)
UGX 808,500
VAT incl.
Delivery:
in 1 Days
Authorized Dealer
Add to cart
new
In stock

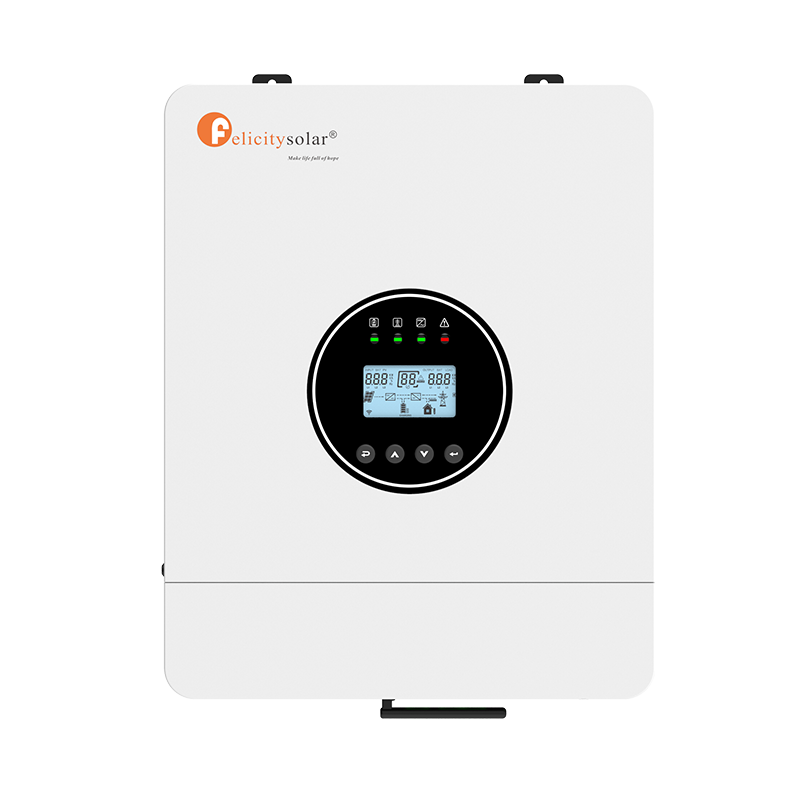

Felicity IVEM6048-II Hybrid Inverter 6kVA 48V, 500V PV, 1 MPPT, Pure Sine Wave, Built-in WiFi, CAN/RS485, for Residential Solar, Small Business, Telecom and ICT
(0)
UGX 1,617,000
VAT incl.
Delivery:
timeline at checkout
Authorized Dealer
Add to cart
new

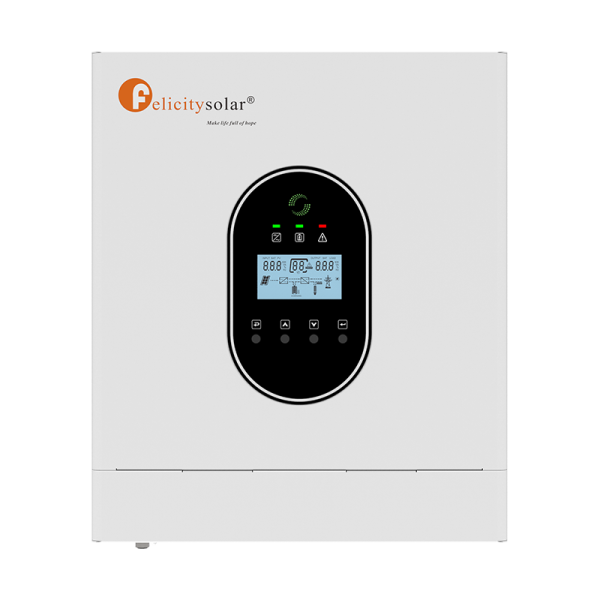

Felicity IVCM2024PRO Hybrid Inverter 2kVA 24V, 145V VOC, 1 MPPT, for Home Solar Backup, Small Business Energy and Rural Electrification
(0)
UGX 699,000
Delivery:
in 14 Days
Authorized Dealer
Add to cart
new
In stock
Felicity IVPM10048 Hybrid Inverter 10kVA 48V, 8000W Output, 6600W PV, 65-145Vdc, for Residential Solar, Small Business and Off-grid Hybrid
(0)
UGX 3,727,500
VAT incl.
Delivery:
in 1 Days
Authorized Dealer
Add to cart
new

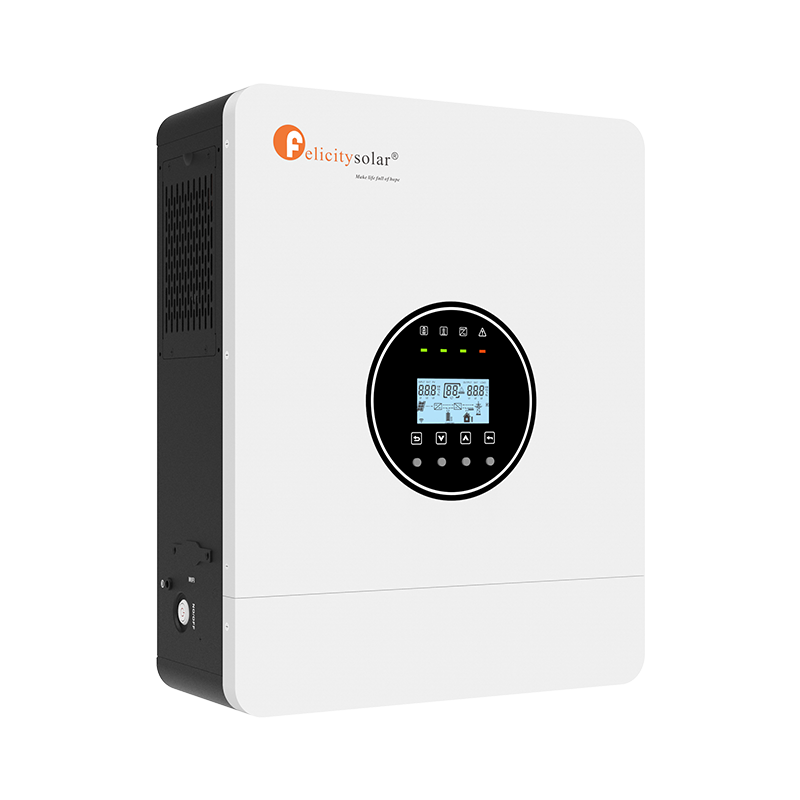

Felicity IVEM6048 Hybrid Inverter 6kVA 48V, 12 Parallel, BMS Communication, for Residential Solar, Small Commercial Solar, Off-grid and Hybrid
(0)
UGX 2,000,000
Delivery:
in 14 Days
Authorized Dealer
Add to cart
new
In stock

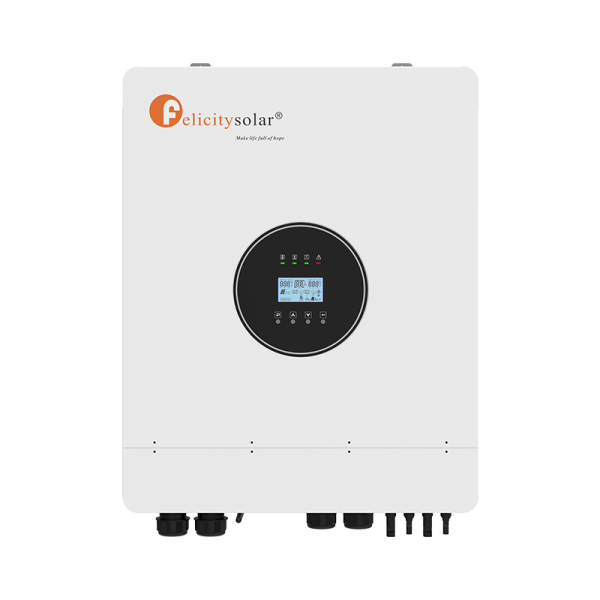

Felicity IVEM12048-II Hybrid Inverter 12kVA 48V, 2 MPPTs, 500V PV, Pure Sine Wave, Built-in WiFi, CAN/RS485, for Residential Solar, Small to Medium Systems and Off-grid
